HB-105-2

HB-105-2

Item Number: 2340200021

Telephone Tonecaller, 60-100V AC, 105 dBa, watertight, IP66

  • Telephone line powered (no mains voltage required).
  • Penetrating typical 105dBA output.
  • Volume Control.
  • Reduced installation costs.

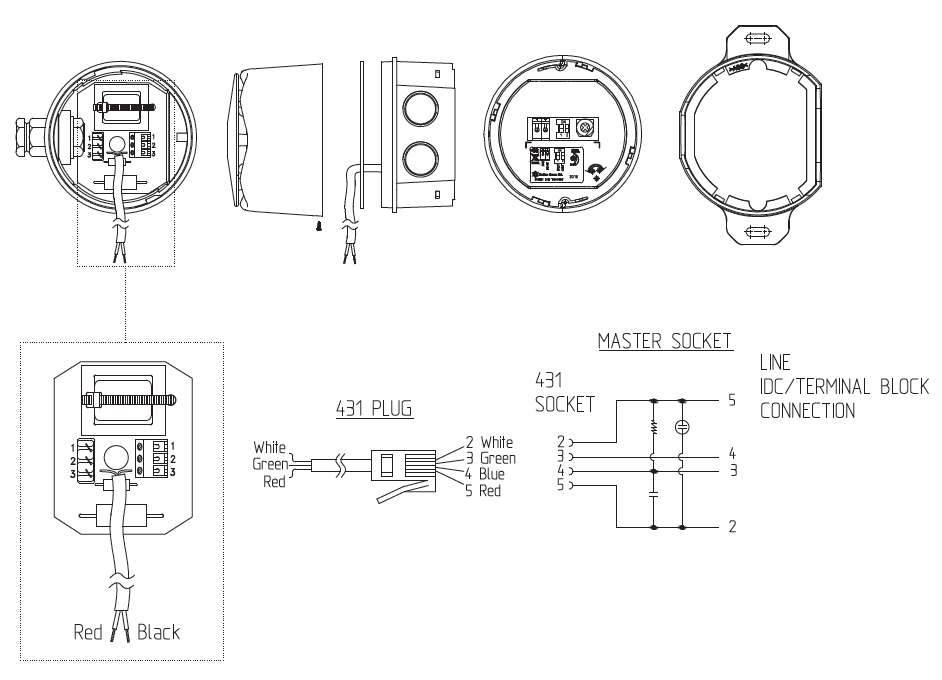

  • Available for hard wiring (using either screwor I.D.C connections)
    or supplied with a 3 metre line cord and a 431A plug.
  • Weatherproofing to IP 66.
  • REN of 0.75.
  • Maintenance free operation.
  • 2 selectable tones.
IP66 IP66

The line powered 105dBA HB-105-2 Tonecaller is a telephone extension sounder which has been designed for installation in large  areas which have high ambient noise levels so that a ringing telephone can easily be heard. The unit is rated to IP66 and is suitable for operation in adverse conditions.

The HB-105-2 Tonecaller is designed to replace traditional mains powered bells, and is powered by the PABX and PSTN line voltage (60 – 100 volts AC). A variable output of 85 – 105 dBA is obtained by means of a potentiometer located within the unit.



General
Colour Yellow Case with a black base and black fixing bracket.
Dimensions (Ø x H ) 92 x 97mm
Mounting 2x 5mm screw
Weight 0.350 kg
Input Voltage 60 – 100 volts AC.
Output SPL 85 – 105dBA nominal at 1 metre.
Volume control Via a variable potentiometer
Buzz Tone Very fast sweep 120Hz between 2.3KHz to 2.9Hz
Continuous Tone 2.6KHz
Waterproofing IP 66
Environmental Condition Exposed
