P-7200

Item Number: 4000087624 / 4000082999

AC/DC & AC/AC LAN Switch

  • 24 Ethernet ports
  • 2 slots for SFP modules
  • Dual redundant power supply
  • 10/100/1000 Mbps (24P)
  • PoE (24 ports)
  • 19” rack mounting
  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV GLtype approval and compatible with NORSOK

The P-7200 AC/DC or AC/AC LAN switch has 24 ports that can all provide Gb ethernet connectivity as well as power for end devices (PoE). In addition, the switch has 2 slots for SFP modules for fiber connectivity providing 26 ports in total. The switch is fully manageable through the web and command line interface.

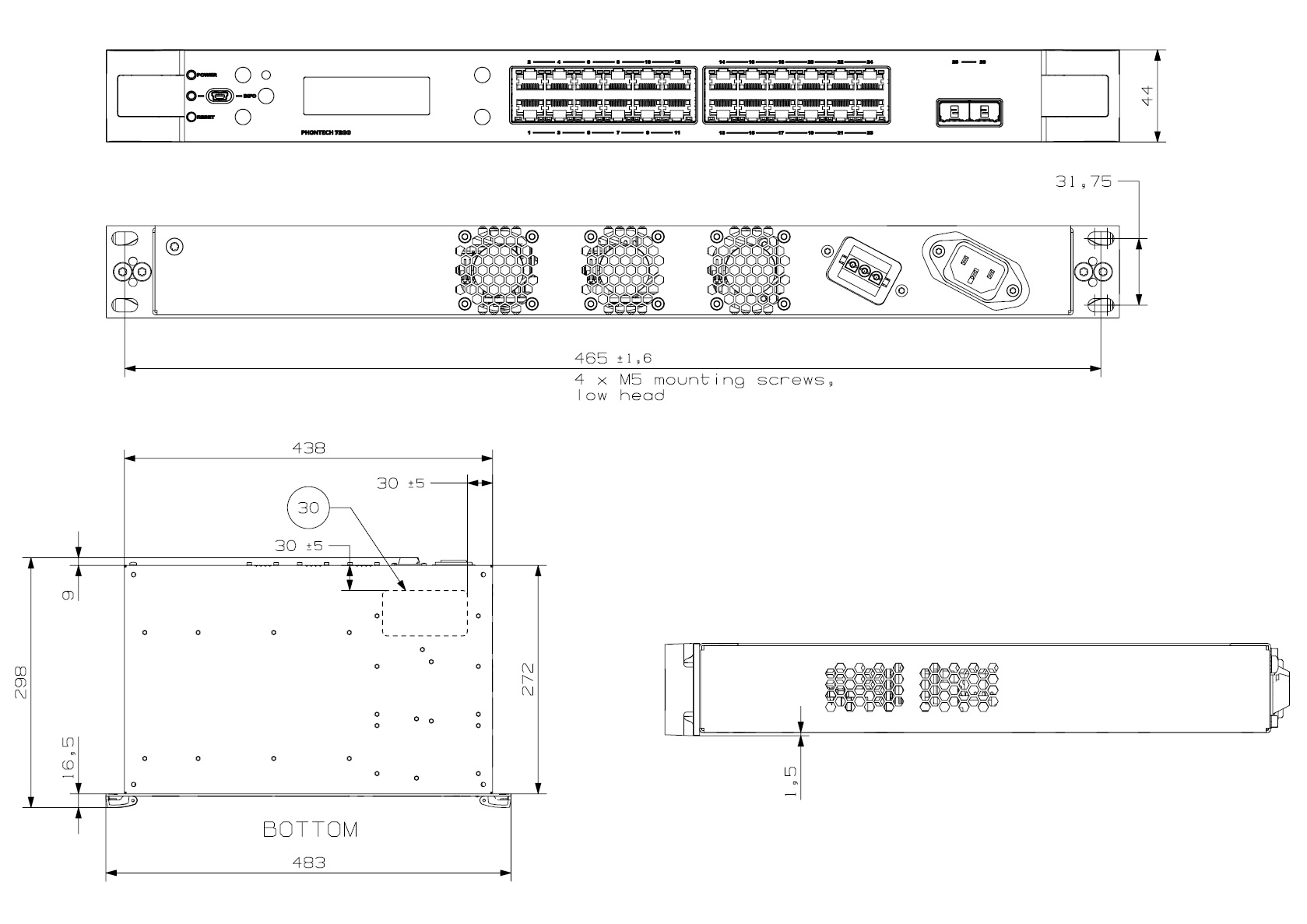

Mechanical
Dimensions 19”, 1U rack mounted, D=272 mm
Weight 3.9 kg
Color RAL 9005
Material Steel / Plastic
Mounting Rack/ Console
Fixing 4 x M5 bolts
Access Front
Cable Entry Rear and Front
Electrical
Power Supply AC/DC: 90-250 VAC / 20-36 VDC. AC/AC: 90-250 VAC / 90-250 VAC
Output voltage 48VDC (PoE feed)
Power Consumption 225 W (max)
System power consumption 30 W
Heat Dissipation 45 W (max)
PoE power budget 150 W
Compass Safe Distance <1.7 m
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-20
Ports
RJ45 Ethernet 10/100/1000:24
SFP Gigabit2
PoE ports 24
System Status
Power supply status LED Primary/Secondary
System status LED HW/SW status
Per-port LEDs 10/100/1000: PoE, link/activity

Date Name Category Size Document
Phontech-7200-User-Manual Manual 2.47 MB Download
