VSP-36-PEL-A/20

Item Number: 1020600772

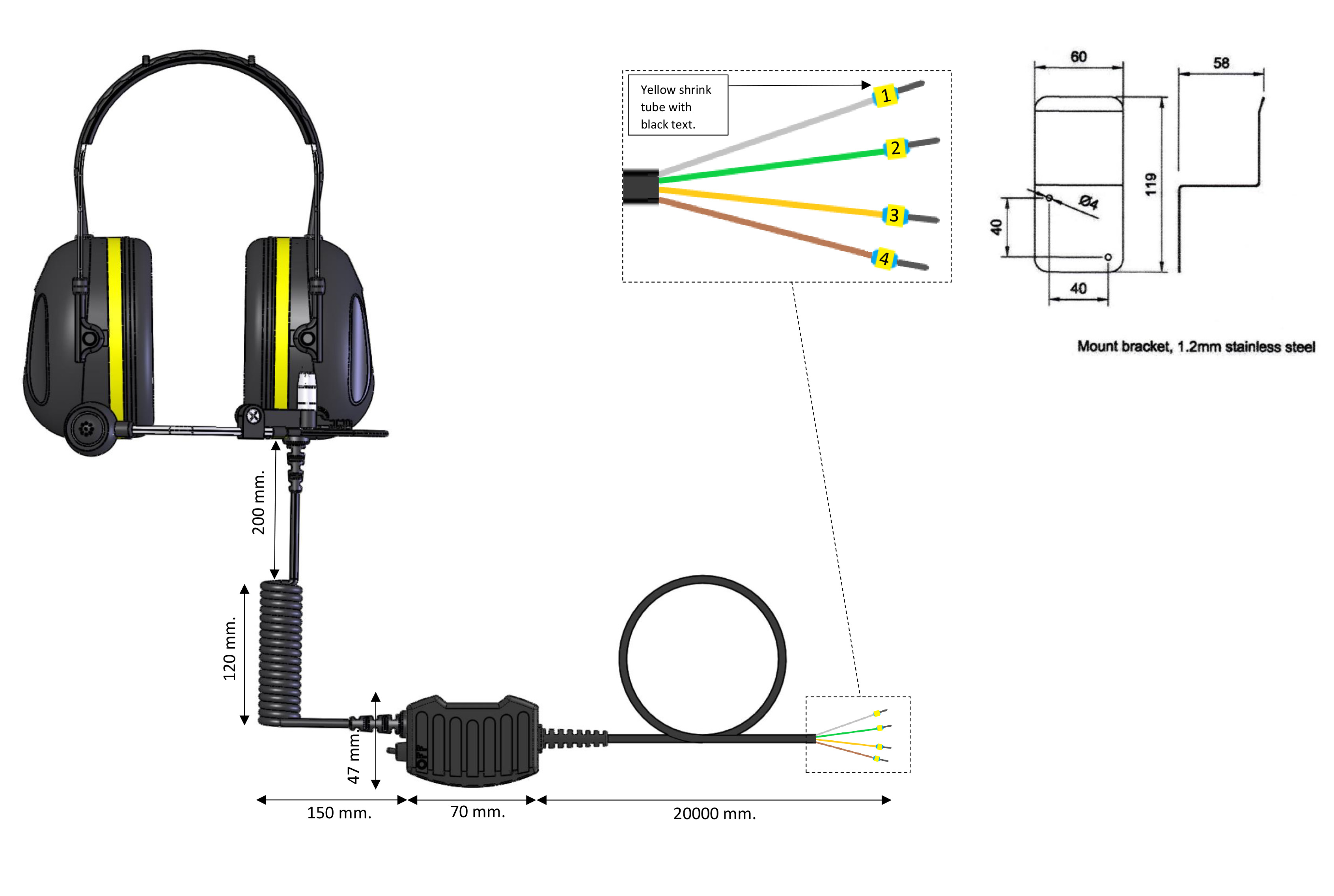

Headset with boom mic, headband, and 20m cable

  • Headset for connecting directly to a VSP station
  • ON / OFF switchbox w/ belt clip
  • Excellent noise performance
  • High attenuating ear shells
  • Standard with 20 meter cable
IP66 40x40 ico IP54
Marine 40x40 ico Onboard communication

The VSP-36-PEL-A/20 headset brings hearing protection and communication in noisy environments into a new level of performance with newly designed speakers and microphone.

The dual cup give a modern and slim look and is specially designed to provide excellent noice attenuation.

Applications

The VSP-36-PEL-A/20 headset can enhance communication in noisy environments and other workplaces, where the workers need to be connected to their 2-way handheld or fixed systems throughout the day to help facilitate frequent contacts with co-workers.

General
Termination Flying leads/ferrules, prepared for screw terminals
Microphone 20,5 mm. dynamic noise cancelling, 240 Ohm+- 30 %, sensitivity -57 dB+-3 dB, 0 dB=1v/pa at 1kHz, frequency response: 50Hz-6KHz.
Earphone/Speakers 27 mm. diameter, 150 Ohm+-15 %, Parallell connection, frequency response: 50Hz-10KHz.
Temperature -40 to +60 degrees C
Storage Humidity < 90%
Protection IP-54 (When worn)
Attenuation rating (HML) H=32 dB / M=28 dB / L=20
Attenuation rating (SNR) 30 dB
CE Certificate no. 12151RHS01
Dimension (HxD) Approximately 250 x 150 mm. (adjustable).
Weight 0.4 kg
Colour Black/Yellow
Manufacturer Zenitel (A-kabel)
Cable 20m
