170170-00 Dual Face slave

170170-00

Item Number: 2310601025

Dual face Slave Clock, TC-M

  • The housing is an anodized aluminum profile with a front cover of plexiglas
  • It is generally for recessed wall / surface-mounting
  • DCF format with time zone adjustment
  • 2 wire bus connection w/ power and serial time code

The analogue clock for wired DCF Time-Code from Marine Master Clock provides the possibility to create a time distribution system, with high accuracy and high reliability. The clock is intended for connection to a 2-wire bus which combines power supply and serial Time-Code A built in microprocessor receives the Time Code, reads the position of the hands, and sets the clock to correct time. The Time-Code, built up according to the DCF-format, contains information about year, month, day hour and minute. At each minute shift seconds are synchronised as well. The transmission speed is 1 bit/second. 24VDC power supply for the built in electronics is combined with the Time-Code. The clock is intended for time zone adjustment from a Marine master clock.

General
Mounting Surface mounting
Housing / Colour Anodized silver profile with a front cover of plexiglas
Colour Aluminium, white face, black hands, numerals and marks

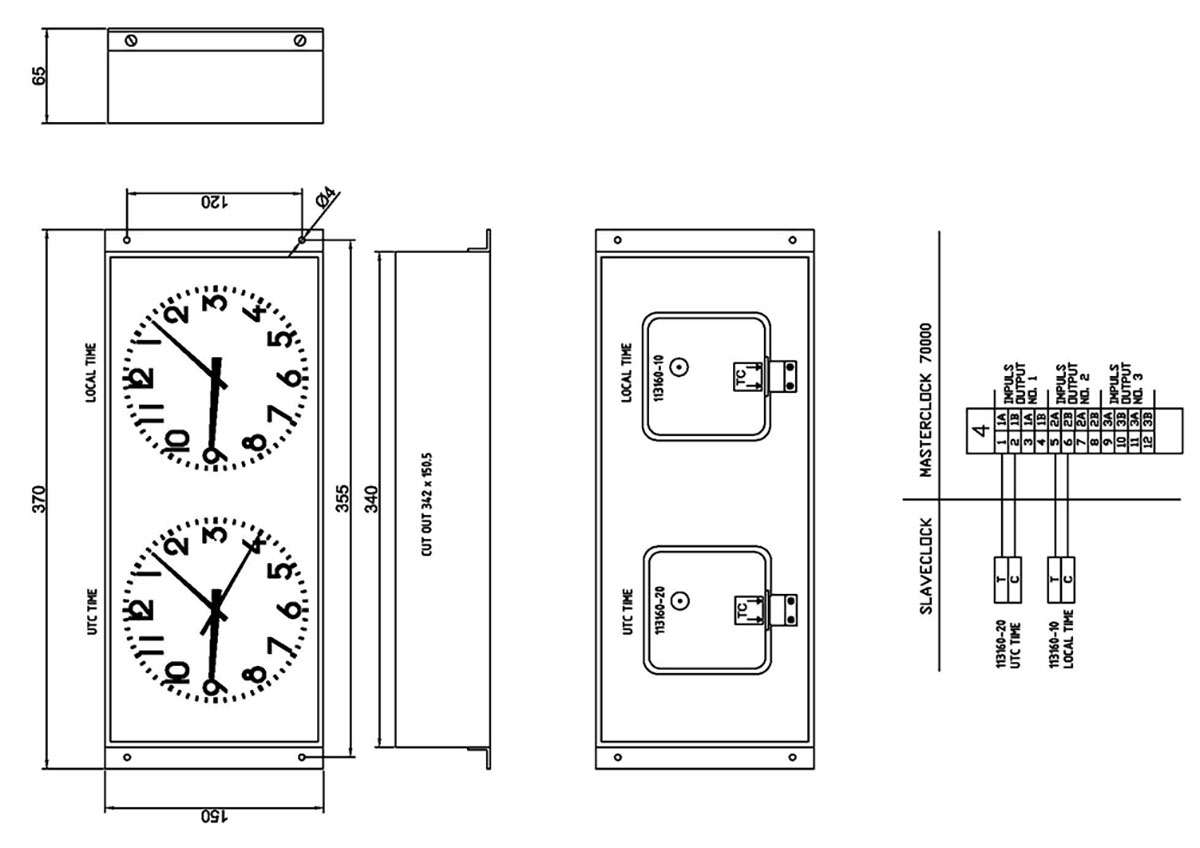

Dimensions (mm) 370W x 150H x 65D
Connection 2 wire
Connection voltage 24VDC combined with serial Time-Code
Type of time code DCF-format with Time zone adjustment.
Microcontroller PIC16F628
Temperature range -20°C to +50°C
Power consumption 30 mA
Ingress protection IP20
Product variants
2310601026 Dual face Slave Clock, Local/UTC, NTP PoE
