B300LDA-24R-LED

Item Number: 2340200017

Multi-function Beacon, LED, 24vDC, IP65, Red

  • Bayonet fixing lens.
  • Anti-tamper locking screw.
  • Stainless steel fixings.
  • Total of 9 user selectable operation modes:
    • 4 rotating configurations.
    • 4 flashing configurations.
    • Steady mode for status applications.

The B300 series is comprised of a Xenon strobe beacon, permanent filamentbulb or halogen beacon, blinking filament bulb or halogen beacon, rotating beacon and a multi-function LED array beacon.





General
IP Rating IP65
Light source Array of 16 High output LEDs
Peak/Effective Intensity cd 19 cd* – measured ref. to I.E.S.
Lens type Prismatic (standard) or plain
Mounting Surface mount
Entries 1 × 5-7mm push through grommet, 1 x M20 cable entry

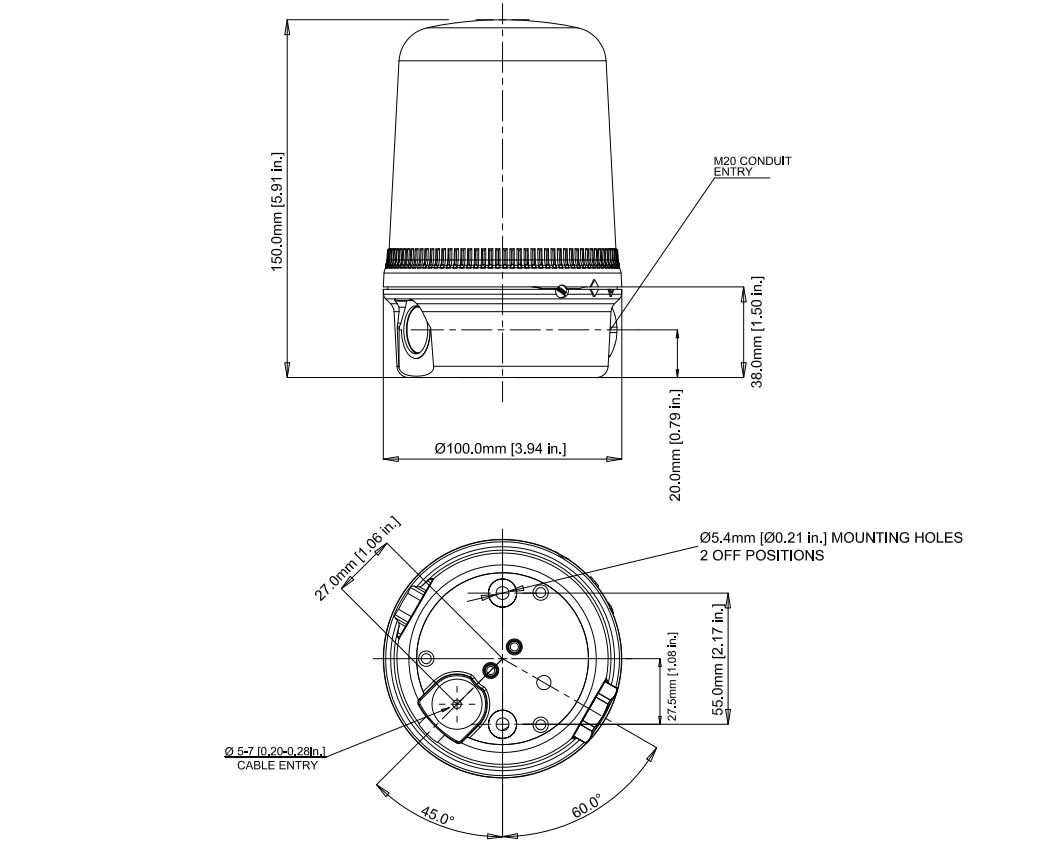

Dimensions ø100 x 150mm
Weight 370g
Current mA 130mA @ 24V dc
Environmental Condition Protected
Order number Description
2340200017 B300LDA-24R-LED, LED Beacon 24vDC Mutlifunc. IP65, RED
2340200015 B300LDA-24B-LED, LED Beacon 24vDC Mutlifunc. IP65, BLUE

Date Name Category Size Document
23.06.2023 MD-SDoC-2340200017-IHM-8003-41786-17392 Declaration 72.19 KB Login to download
3.01.2023 SDoC-8003-26731.pdf Declaration 43.56 KB Login to download
25.03.2022 Material Declaration - B300LDA-24R-LED - 2340200017 Declaration 16.89 KB Login to download
22.12.2020 B300LDA-24R-LED_Installation.pdf Manual 355.9 KB Download
22.12.2020 B300LDA-24R-LED_Russian_EAC.pdf Certificate 1.24 MB Download
