BLC-550T Sauna

Item Number: 2131000124

Wall loudspeaker 6W, for sauna

  • 100V line
  • Tapping: 0,5W - 0,9W - 1,5W - 2W - 3W - 6W

Specially designed loudspeaker made with components and materials that can withstand hot and humid environments.

Installation, Operation, and Maintenance Procedures

  • Open the loudspeaker by turning the grill counterclockwise.
  • Lead cable through the cable inlet, connect to the terminal, and select the required tapping on the transformer.
  • Screw the cabinet to the wall or ceiling with four screws. When installed into a wall the cable inlet should point downwards to ensure IP degree.
  • Screw the loudspeaker front gently clockwise into a fixed position.
  • For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated.
  • Do not open the loudspeaker when energized.
General
Material/Colour PA6 / Black
Mounting Four screws
Termination Ceramic terminal
Weight 0,93 kg
Max./min.amb.temp 125°C / -30°C
Rated power 6W
SPL 1W/1m 86 db
SPL Rated Power 93 db
Effective freq. Range 150 – 11000 Hz
Dispersion (-6dB) 1kHz / 4kHz 160° / 70°
IP when mounted IP33
Environmental Condition Protected

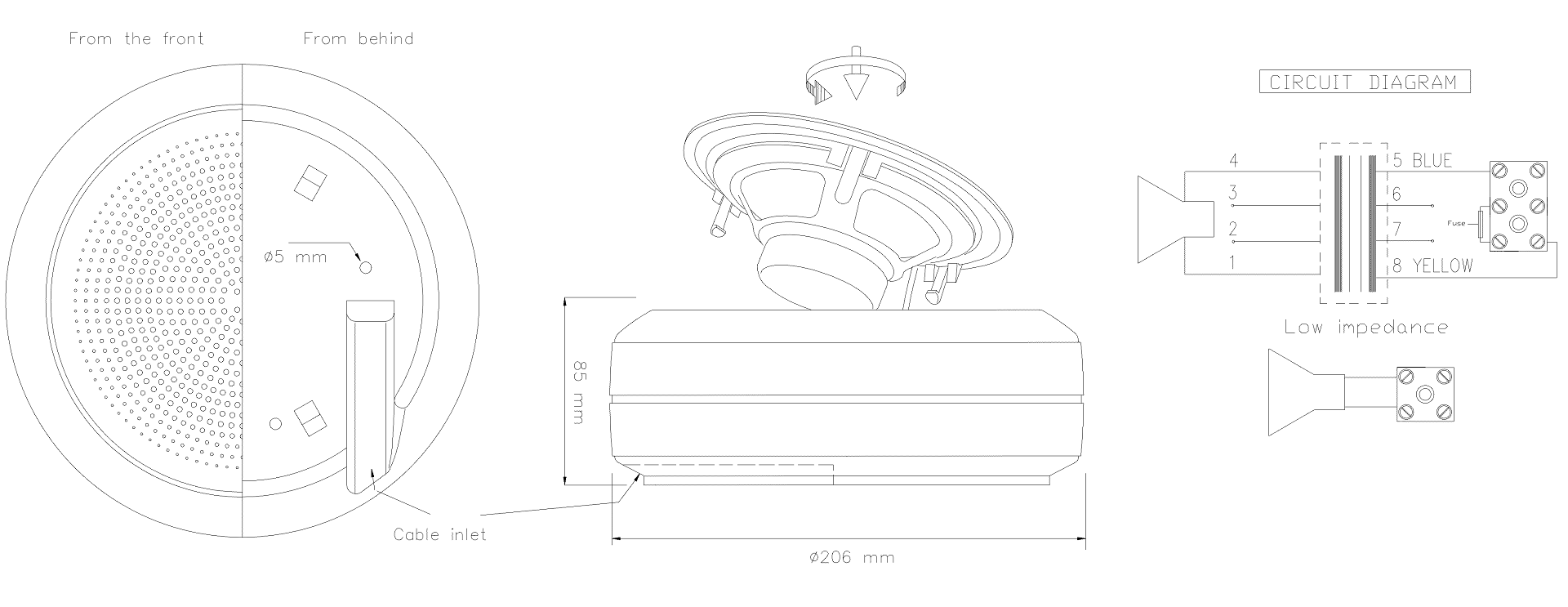

2131000124-BLC550T-Sauna_DimDraw
