2810011076-CAB-AVF-L-115

CAB-AVF-L-115

Item Number: 2810011076

Active ventilation for CABxx with a steel door, 115 VAC

  • The package consists of:
    • Fan-and-Filter Unit: front-door mounting, 255x255 mm, 115 VAC
    • Internal Thermostat (with mounting plate)
    • Roof Air Outlet (non-powered)
  • IP22

The CAB-AVF-L-115 active ventilation package is a cost-effective solution designed for the CABxx series steel-door cabinets. It offers easy installation and simple maintenance, making it suitable for both new and existing enclosures. The fan-and-filter unit supports multiple mounting positions—front, side, or rear—allowing flexible integration based on airflow needs. This package provides reliable airflow management and helps maintain stable operating temperatures inside the different cabinets.

GENERAL (Fan-and-Filter unit)
Rated operating voltage 115 V, 1~, 50/60 Hz
Power consumption At 50 Hz: 35.5 W / At 60 Hz: 38.2 W
Rated current max. At 50 Hz: 0.41 A / At 60 Hz: 0.42 A
Air throughput, unimpeded airflow (with chopped-fibre filter) At 50 Hz: 175 m³/h / At 60 Hz: 157 m³/h
Air throughput, unimpeded airflow (with pleated filter) At 50 Hz: 130 m³/h / At 60 Hz: 112 m³/h
Air throughput with matching outlet filter including pleated filter At 50 Hz: 191 m³/h / At 60 Hz: 161 m³/h
Pre-fuse Miniature circuit-breaker/fuse: 4 A
IP protection category to IEC 60 529 IP 54-56 (depending on filter type)
Dimensions W x D x H 255 x 129 x 255 mm
Installation depth 108 mm
Weight 2.381 kg
GENERAL (Internal Thermostat)
Rated operating voltage 24-230 VAC, 1~ / 24-60 VDC
Dimensions W x D x H 71 x 33.5 x 71 mm
Weight 0.12 kg
GENERAL (ROOF AIR OUTLET)

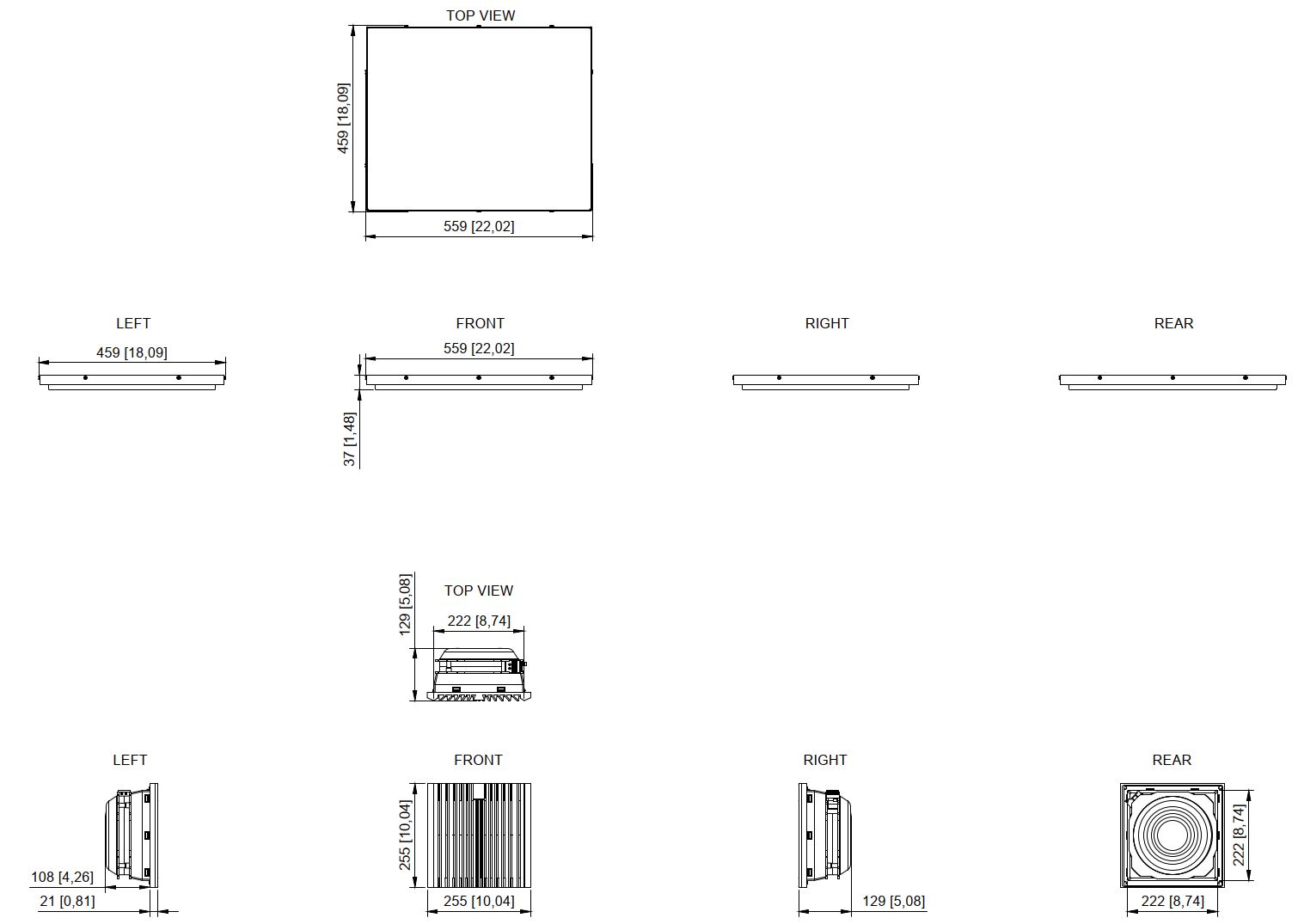

Dimensions W x D x H 559 x 37 x 459 mm
IP Protection IP22
