CAB42FW

Item Number: 2810010054

Cabinet floor 19'' 42 HU 810x2165x630 mm fixed frame IP-22

This item has been replaced with 2810010114 - CAB42FW-V2

This item has been replaced with 2810010114 - CAB42FW-V2



Our all new series of multi use cabinet are designet to be used in an marine environment. Perfect to install our 19'' system components to create a complete system for your installation.

Cabinet variant 42 HU, 800 wide and 600 deep. Internal 19 inch fixed frame for up to 42 HU. Includes the choice of DIN rail mounting in bottom, prepared for optional power switch-over module and terminals. Comes prepared with ventilation and chassis ground.

This cabinet is suitable for:

  • ACM Advanced modules
  • SPA-V2 Public address
  • Radio
  • LAN
  • CCTV
  • IPTV
  • DECT
  • Paging
  • Masterclock
GENERAL
Dimensions (WxHxD) 810x2165x630 mm
Color RAL 7035
Material Steel
Ingress grade IP-22
Mounting Floor mounted
Cable inlet Bottom (top available on request)

2810011064_Door_handle_wPush-button_wpad-lock-Image

CAB-DH-PP

Door handle with push-button & pad-lock for CABxx

2810010052

CAB24FWD

Cabinet floor 19'' 24 HU 810x1350x880 mm fixed frame IP-22

2810010091

CAB8K11F

Cabinet floor 19'' 11 HU 600x665x640 mm IP-20

2810010092_CAB8K24F_Image

CAB8K24F

Cabinet floor 19'' 24 HU 600x1310x660 mm IP-20

2810010053

CAB42F

Cabinet floor 19'' 42 HU 610x2165x630 mm fixed frame IP-22

2810010055

CAB42FWD

Cabinet floor 19'' 42 HU 810x2165x830 mm fixed frame IP-22

Date Name Category Size Document

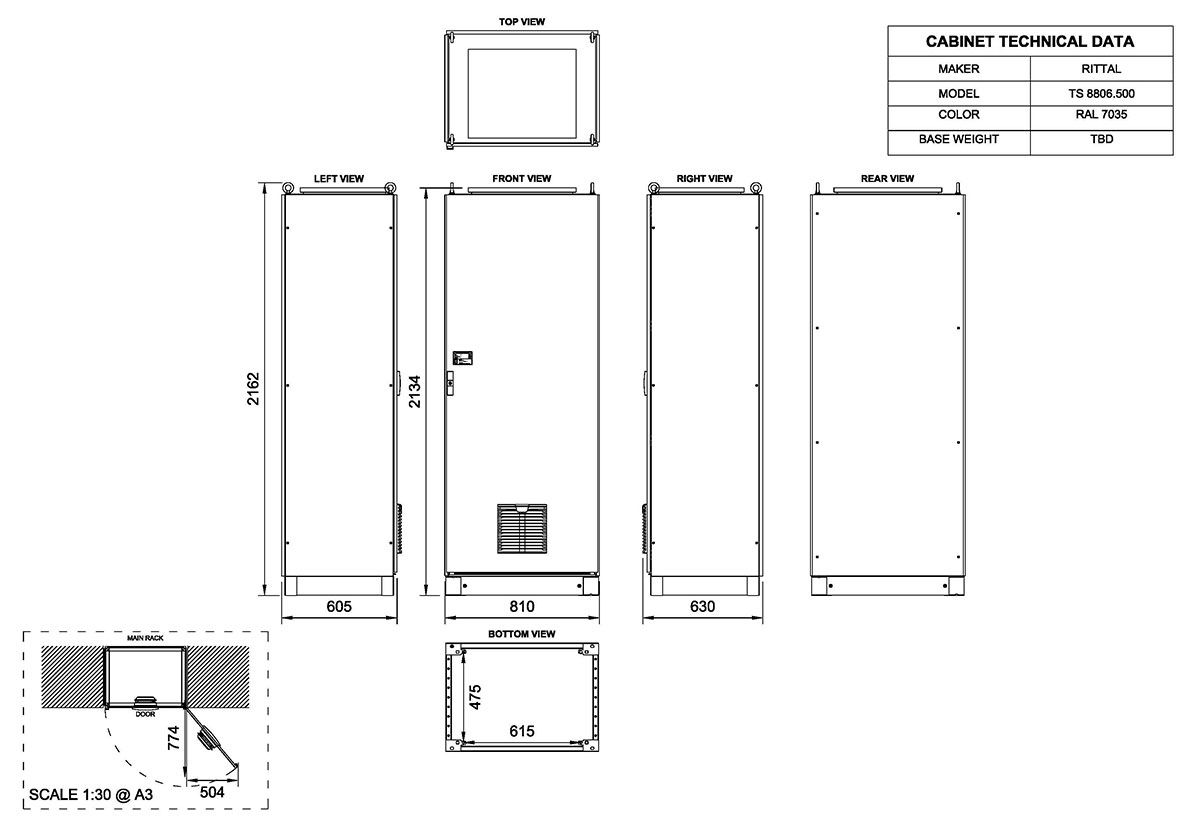

8.05.2020 2810010054-420_CAB42FW_Dimensions rev00.zip 363.37 KB Download
