CD-16

Item Number: 1020600982

Plug Box

  • Designed to be used together with VSP-122P
  • Portable stations with station selector switch
  • Socket with dustcap
  • Delivered for bulkhead mounting
  • Suitable for installation in noisy or deck areas
General
Connections Screw terminals
Material Flame retardant blend plastic housing
IP rating IP-66
Operating temperature range -25°C to 55°C

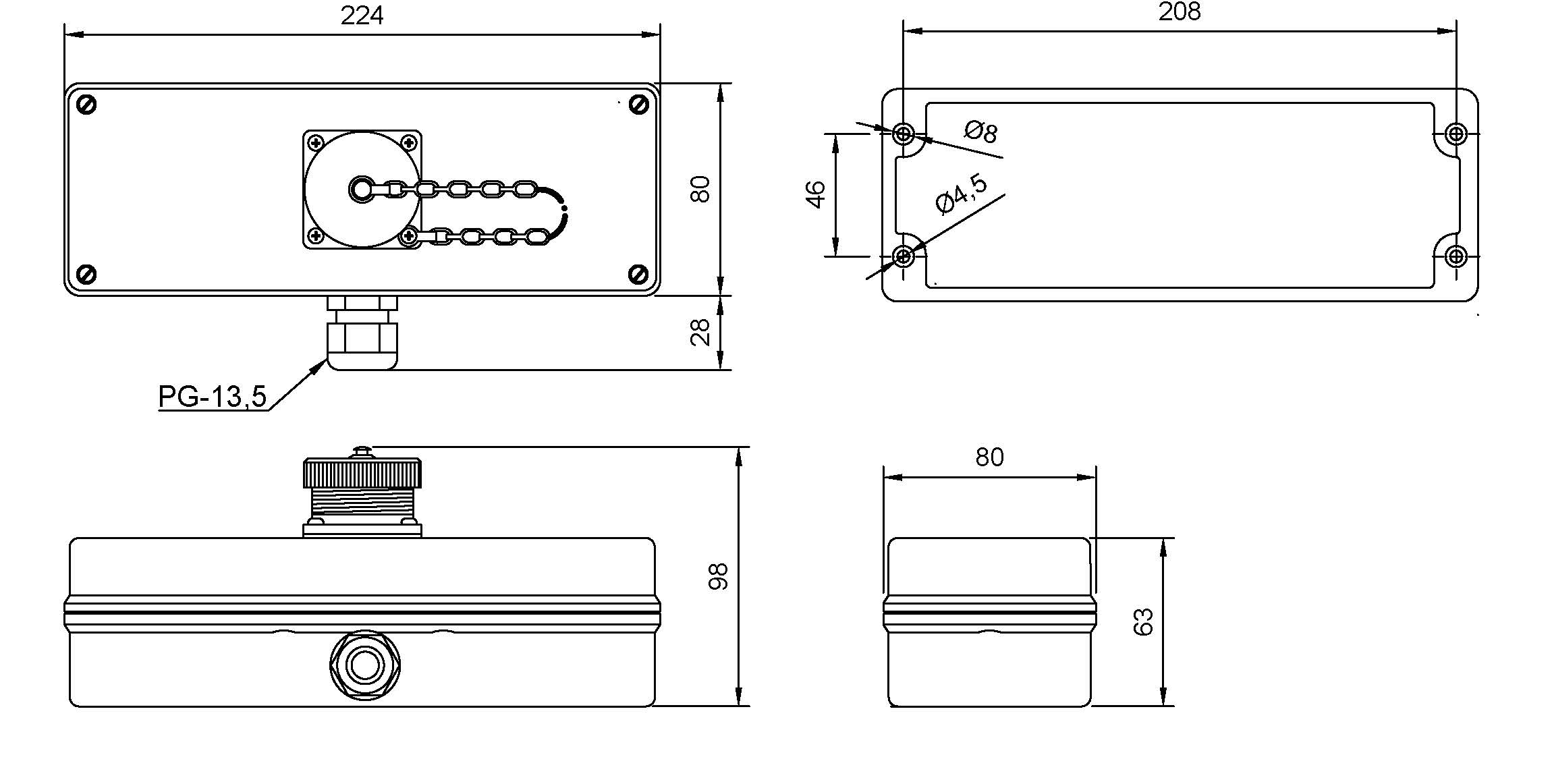

Dimensions (WxHxD) 224 x 80 x 63 mm
Weight 0.60 kg

Date Name Category Size Document
15.05.2023 MD-SDoC-1020600982-IHM-8003-41815-7863 Declaration 72.16 KB Login to download
25.11.2022 Declaration of Conformity VSP 11.11.2022 Declaration 79.19 KB Download
17.09.2019 1020600982_CD-16_0.zip CAD 2D 234.29 KB Login to download
