DS-2CD2523G0-IWS Dome Network Camera

Item Number: 2310111160

Fixed Mini Dome Network Camera, 2MP, IR, IP66

  • 1920 × 1080@30fps
  • IR: Up to 10 m
  • H.265+. H.265
  • 120dB WDR
  • Built-in Micro SD/SDHC/SDXC slot, up to 128G
  • PoE
  • BLC/3D DNR/HLC/ROI
  • Wi-Fi (Optional)

2MP Mini Dome Network Camera

Monitor your asset with the DS-2CD2523G0-IWS 2MP Outdoor Wi-Fi Network Mini Dome Camera with Night Vision from Hikvision. Equipped with a 2MP CMOS sensor and a 2.8mm fixed lens, the camera captures video at resolutions up to 1920 x 1080 at 30 fps in a 114 x 62° field of view. The  dome network camera has EXIR 2.0 IR LEDs with an effective range of up to 35' and uses a built-in IR cut filter to switch from color to B&W for day/night functionality. Wi-Fi connectivity allows for wireless video transmission.

The camera is housed in an IP66- and IK08-rated weather- and impact-resistant enclosure. PoE technology simplifies installation by enabling you to power the camera via its network connection. Also featured are audio in/out ports and a built-in microphone for two-way talk, as well as a microSD card slot for onboard storage of footage. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length 2.8, 4, 6 mm
Aperture F2.0
FOV 2.8 mm, Horizontal field of view: 114°, Vertical field of view: 62°, Diagonal field of view: 135°
4 mm, Horizontal field of view: 86°, Vertical field of view: 46°, Diagonal field of view: 102°
6 mm, Horizontal field of view: 54°, Vertical field of view: 30°, Diagonal field of view: 62°
Lens Mount M12
IR
IR Range Up to 10m
Wavelength 850nm
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream: H.265/H.264 /MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression (-S) G722.1/G.711/G726/MP2L2/PCM/MP3
Audio Bit Rate (-S) 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Smart Feature-set
Smart Event Line crossing detection, intrusion detection, face detection
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output (-S), Email
Region of Interest Support 1 fixed region for main stream and sub-stream separately
Max. Resolution 1920 × 1080
Main Stream 50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
Day/Night Switch Auto/Schedule/Day/Night/Triggered by Alarm In (-S)
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Interface
Audio (-S model) 2 Inputs: line in, or mic in (built-in microphone), 1 Output: line out, mono sound, terminal block
Alarm (-S model) 1 Input: Alarm in, 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in MicroSD/SDHC/SDXC slot, up to 128G
SVC Support H.264 and H.265 encoding
Reset Button Yes
Wi-Fi (-W Model )
Wireless Standards IEEE 802.11b/g/n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20M/40M
Protocols 802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
Security WPA, WPA2
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 m
Audio (-S model)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Web Client Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.7 A, max. 8.5 W, Φ 5.5mm coaxial plug power PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W
Protection Level IK08, IP66
Material Front cover: plastic, Bottom base: metal

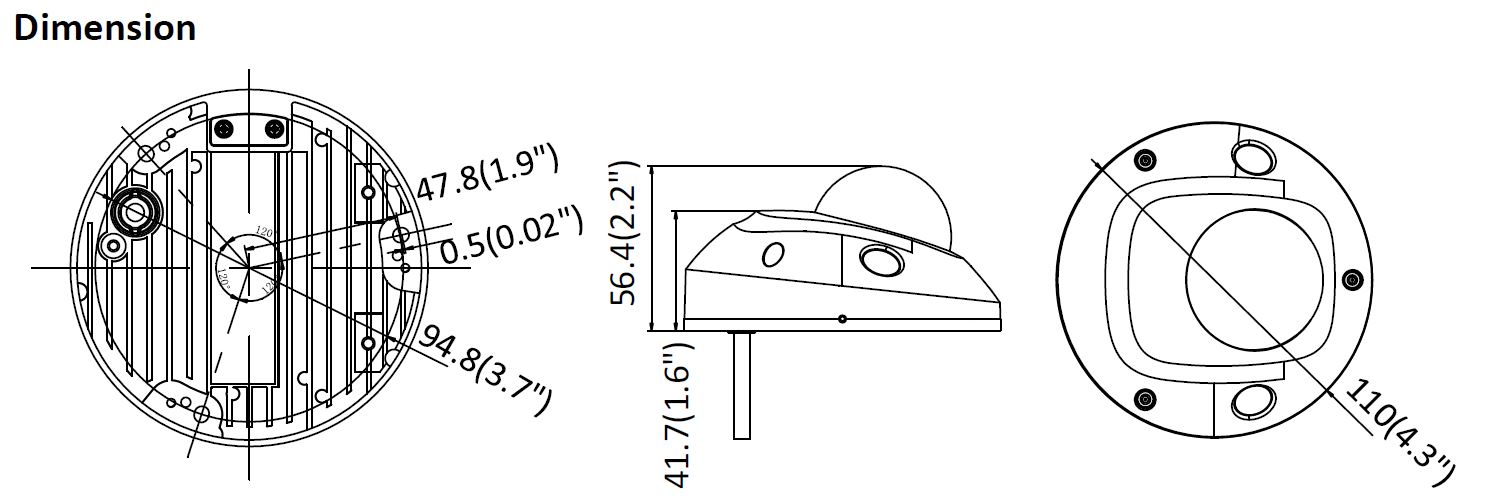

Dimensions Φ110 mm × 56.4 mm (Φ4.3" × 2.2")
Weight Camera: Approx. 400 g (0.9 lb.)
