DSP-15EEXMN

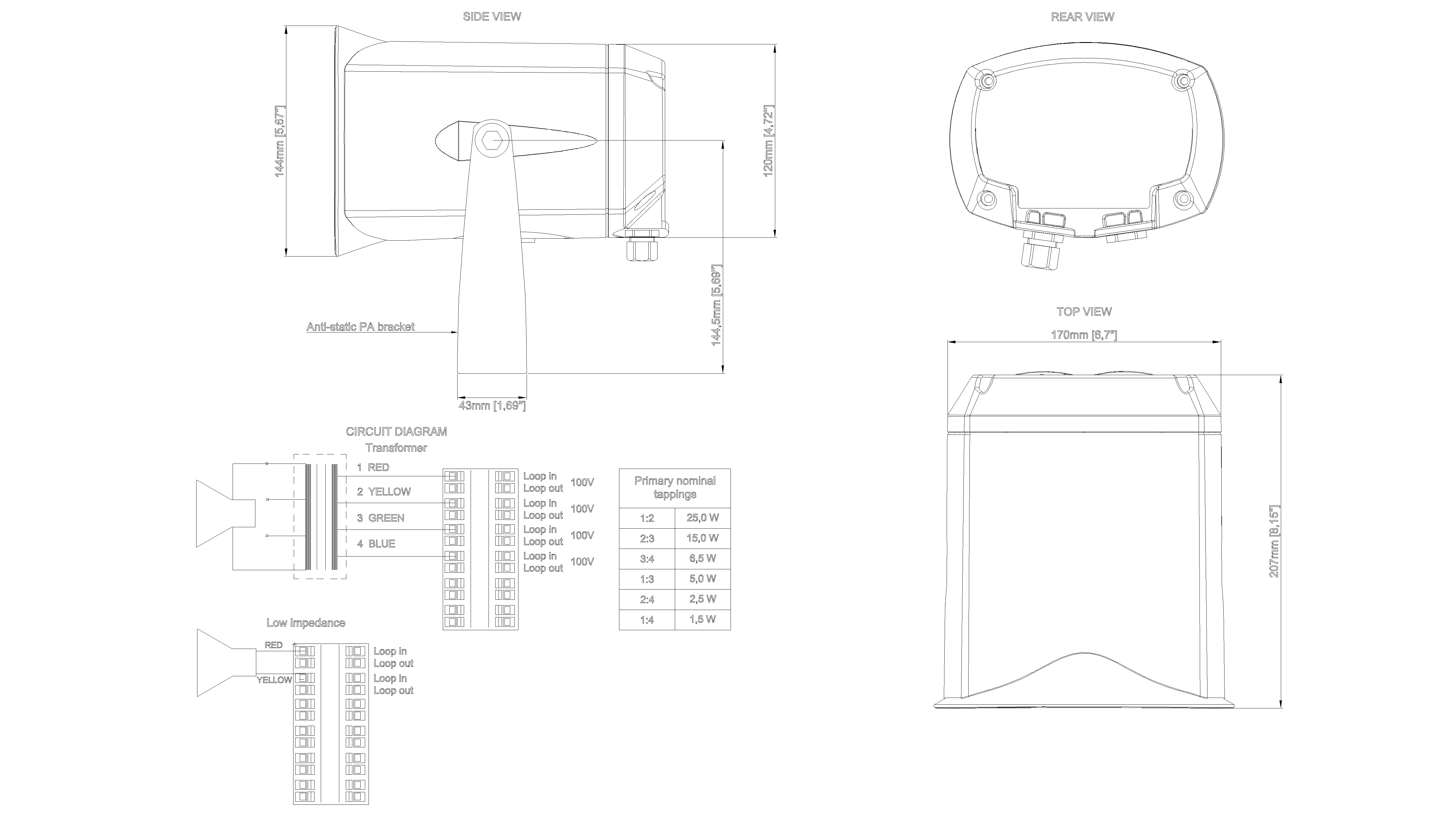

DSP-15 EExmNT 25W - 1x cable gland

Item Number: 2340020012

Ex horn speaker, Ex db eb mb IIB+H2 T4 Gb, 1x cable gland

  • 25W
  • 1x plastic M20 cable gland (11-14mm)
  • Tappings: 1.5W - 2.5W - 5W - 6.5W - 15W - 25W
  • Ex db eb mb IIB+H2 T4 Gb
  • Ex tb IIIC T105°C Db
IP66 IP66
IP67 IP67
IEC Ex IEC Ex Intercom
Atex
  • With a 100V line transformer
  • With an internal thermal fuse
  • Rated/max. power: 25W
  • Tappings: 1.5W - 2.5W - 5W - 6.5W - 15W - 25W
  • Material: Antistatic PA / Black
  • Bracket and all outside nuts and screws in stainless steel



Installation, Operation and Maintenance Procedures

  • Remove the lid by four screws, lead the cable through the cable gland, and connect to the terminal with the required tapping.
  • Every time the back lid is removed, check that the gasket is fitted correctly to the lid before you refit the back lid. Do not use any lubricants on the gasket.
  • Screw the lid back into place with four screws with a torque of 0,95-1,2 Nm to ensure the IP rating.
  • To change the position of the loudspeaker, please adjust the standard U-bracket (by loosening/tightening the screws) as required.
  • Use only IECEx/ATEX certified “Ex eb” cable glands and blanking plugs reflecting the same IP rating and temperature range as the loudspeaker.
  • Standard model delivered with two M20 Ex-approved plastic blanking plugs.
  • According to customer requirements, DSP-15EExmN(T) can be supplied with three different bracket systems.
  • For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated.
  • Do not open the loudspeaker when energized.



General
Material / Color Anti-static PA / Black
Mounting Bracket
Termination e-chamber, push terminals
Weight w/ transformer 2,2 kg
IP-rating IP-66/67
Max / min amb temp. 60°C / -50°C
Rated / max. power 25 W / 30 W
SPL 1W/1m 106 dB
SPL rated power 118 dB
Effective freq range 380-8000 Hz
Dispersion (-6dB) 1kHz / 4kHz 120° / 37°
Directivity factor, Q (1kHz/4kHz) 4,5 / 9,6
Fuse Thermal fuse- 84°C, 2x Short-circuit protection fuses
Environmental Condition Exposed
