Emergency Stanchion

Emergency Communication Tower / Stanchion

Item Number: 2809016000

1600 Deluxe Tower

Note: This product is only available in North America.

Emergency points
  • Economical & Reliable Emergency Communications
  • Extremely Durable Design - Weather, Environment and Vandal Resistant
  • LED Blue Light Flashes when Unit is Activated - LED Blue Light is Constantly On
  • Easy to Install Versatile Modular Design
  • Unit Meets All ADA Requirements
  • Design Can be Customized to Meet Customer Requirements
  • Available painted in colors Blue, Red and Yellow (stainless steel version shown)
  • Voltage Options - 120 VAC, 12/24 VDC & 24 VAC
  • Note: All IP Turbine Intercoms require IP station license.

The Emergency Stanchion is a vandal resistant 9’ tower designed for use with the Zenitel line of hands-free emergency stations. It is ideal for college campuses, open lot parking facilities, medical centers, city streets, shopping malls and any other open space where security is a concern.

The stanchion comes equipped with an integrated LED blue light. The LED blue light is always lit, calling attention to the location of the emergency intercom. The LED light automatically pulses when the emergency intercom is activated. The pulsing continues until terminated by the security personnel receiving the emergency call. The tower is made of a vandal resistant 1/4” thick steel column with a multi-coat, rust inhibitive coating design to withstand prolonged exposure to harsh environments. The blue light is located on top of the column and is housed in a vandal resistant polycarbonate housing.

The Stanchion lettering can include the word “EMERGENCY” or "ASSISTANCE" emblazoned on all four sides in high reflective letters. Other lettering choices are available. The station has a LED front panel that illuminates the face of the emergency intercom.

The Turbine series of stations and the 1600TA Plate with TA-18USA backbox (107216008140) are both ordered separately. See more information on the specifications page for part numbers.

Turbine Series IP:
107216008140 1600 Turbine Plate w TA-18 USA Box
1008111010 TCIS-1
1008111020 TCIS-2
1008111030 TCIS-3
1008111040 TCIS-4
1008111050 TCIS-5
1008111060 TCIS-6
Turbine Series Analog:
1008114010 TCAS-1
1008114020 TCAS-2
1008114030 TCAS-3
1000968903 Relay Board (required for Turbine Analog Stations)
General

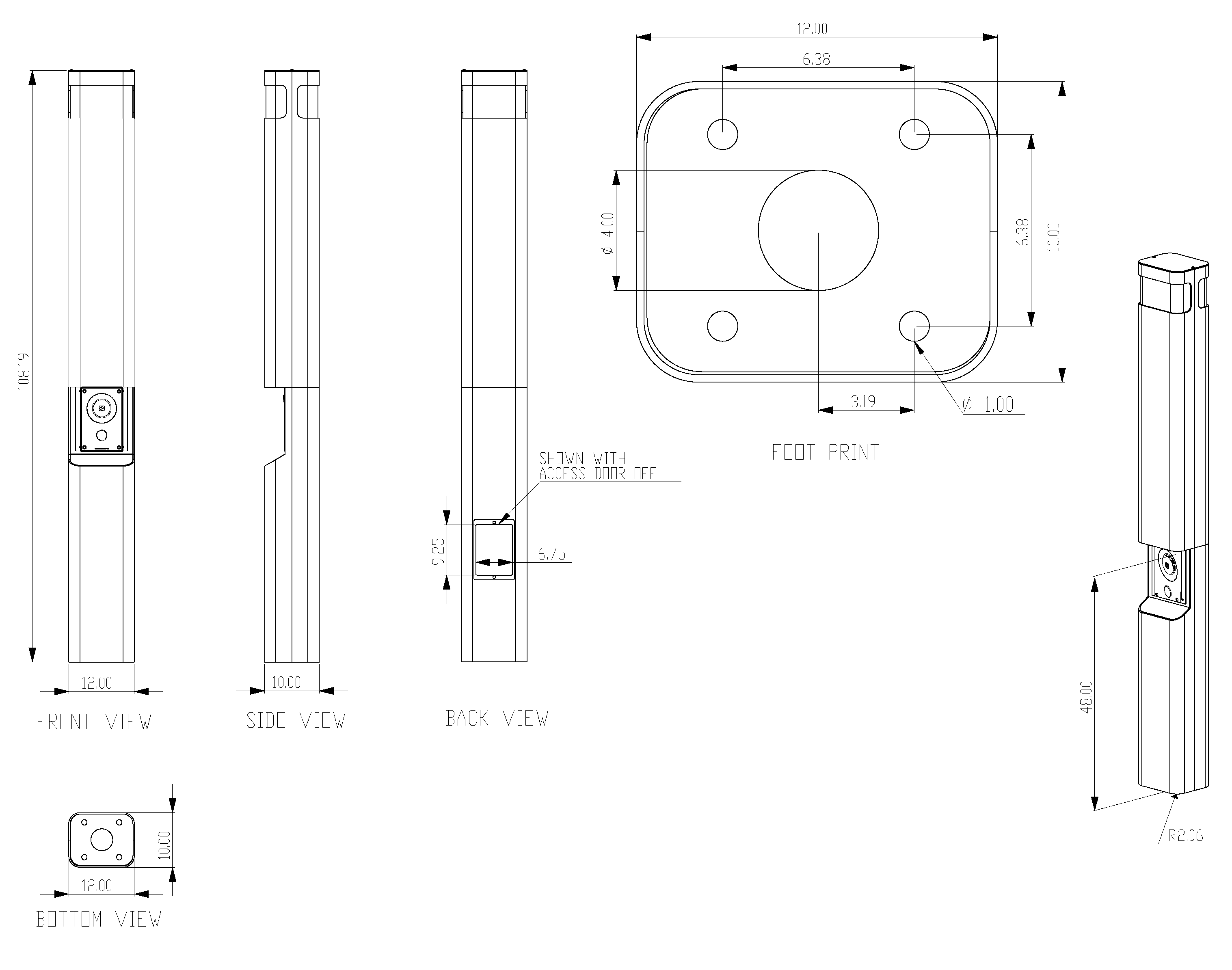

Dimensions: HxWxD - 2743mm x 305mm x 254mm - 9’ x 1’ x 10”
Mount Weight: 154 kg - 340 lbs.
Construction: .25” steel with multi-coat rust inhibitive coating
Mounting: In concrete foundation
Hardware included (shipped in advance)
Turbine Series Video:
1008315020 TCIV-2+
1008315030 TCIV-3+
1008315050 TCIV-5+
1008315060 TCIV-6+

Date Name Category Size Document
8.09.2023 Zenitel Emergency Stanchions (Americas) EN Brochure 2.99 MB Download
9.09.2020 2809016000_1600_Deluxe_Tower (DWG/RFA) BIM 713.56 KB Login to download
7.09.2020 Emergency Stanchion 1600 Deluxe ETP-MT-R_2809016000 CAD 2D 308.13 KB Login to download
