FXS-GW-24P

Item Number: 2200001003

24 port FXS gateway

  • SIP interface to ICX-Alphacom
  • TLS and SRTP security encryption
  • Failover SIP server

The Zenitel FXS-GW-24P FXS gateway enables installations of all sizes to create a cost-effective hybrid IP and analog telephone system that offers the benefits of VoIP communications and takes advantage of Gigabit speeds.

The Zenitel FXS-GW-24P includes 24 FXS ports, a Gigabit network port and and full integration with the ICX-Alphacom communication system.

General
Dimension 440mm(L) x 185mm(W) x 44mm(H) (1U)
Weight 2.63kg
Mounting Desktop and rack mount with front brackets
LED Indicators Power, LAN Link/Activity, Hard Drive Activity, Connection per port
Telephone Interfaces 24 x RJ11 & 1 x 50-pin Telco connectors
Network Interfaces 1 x 10M/100M/1000Mbps auto-sensing RJ45 port
LCD display Backlit 128x32 graphic LCD display
Voice-over-Packet Capabilities Window based carrier grade line echo cancellation, dynamic jitter buffer
QoS DiffServ, TOS, 802.1P/Q VLAN tagging
Security SRTP, TLS/SIPS, HTTPS, 802.1x
Management Syslog, HTTPS, Web browser, voice prompt, TR-06
Power Supply Output: 12VDC, 5A; Input: 100 ~ 240VAC, 50 ~ 60Hz
Operating temperature -15 °C - 55 °C
Max cable length to telephone 1800 m
General

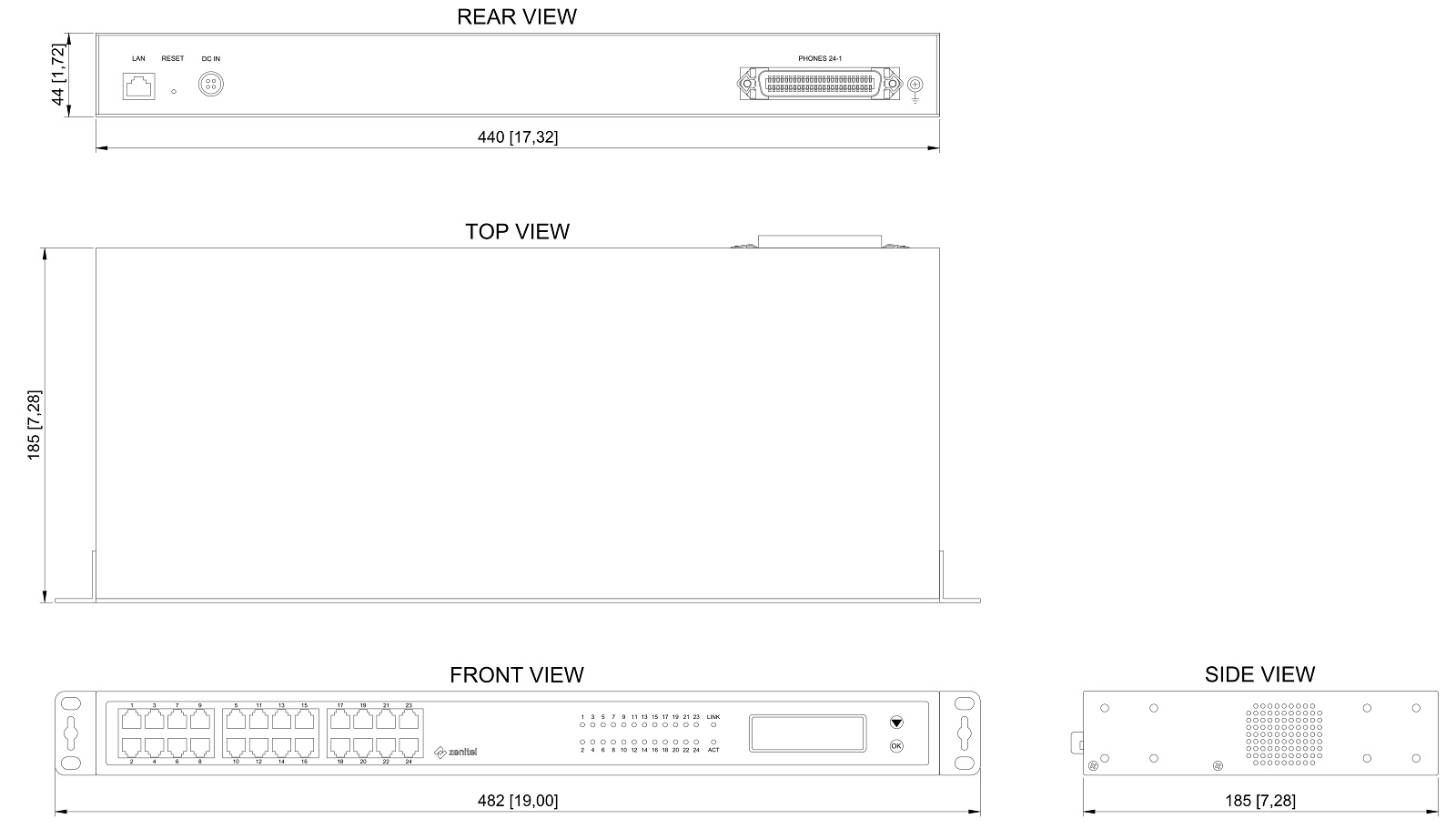

2200001003 - FXS-GW-24P_DimDraw

ICX-500 Intelligent gateway Intercom platform

ICX-500

Intelligent Communication Gateway with HD Voice

Date Name Category Size Document
5.06.2024 MD-SDoC-2200001003-IHM-8003-57862-154254 Declaration 70.87 KB Login to download
3.05.2024 2200001003 - FXS-GW-24P - Dimensional Drawing CAD 2D 519.93 KB Login to download
