HD26T22 26 inch Marine Display Image

HD 26T22 26 inch Marine Display MMD

Item Number: 2310102113

26 inch Flush Mount Display

  • LED Backlight Technology, TFT Active-matrix
  • 25.54 inch viewable image size, Widescreen, Aspect Ratio 16:10
  • S-MVA (Multi-domain Vertical Alignment) Technology, RGB Vertical Stripe

The HD26T22 26 inch Marine Display MMD offers performance, convenience, state of the art design, and enduring quality for CCTV. The display is a flush monitor solution designed and type approved for the professional maritime segment, where reliability and long lifetime are key prerequisites for the industry.

The HD 26T22 26 inch Marine Display is a multi-input 24 inch MMD monitor that is a suitable size for a multitude of shipboard applications, where combining data and video inputs to a single unit provides maximum flexibility. It can display and manage data and multiple camera or sensor videos with a native resolution of 1920 x 1200. It is a high quality TFT flush mount monitor with LED backlight technology.

HD 26T22 26 inch Marine Display MMD

The CCTV display features Glass Display Control™ (GDC), LED Backlight Technology, full dimming and multipower as standard. It also can accommodate and combine a number of options such as multi-touch screen, optical bonding, sunlight readability (High Bright) and ECDIS calibration.

By factory standards, the HD 24T22 24 inch Marine Display MMD is ECDIS complaint. Additionally, it is IP66 compliant for the front of the display and IP22 compliant for the rear of the display(EN60529).

Description
Native Resolution 1920 x 1200
Pixel Pitch (RGB) 0.2865 (H) x 0.2865 (V) mm
Response Time 20ms (Tr+Tf)
Contrast Ratio 1500:1 (typical)
Light Intensity 350 cd/m2 (typical)
Viewable Angle +/- 88 deg. (typical) (Up/Down/Left/Right)
Active Display Area 550.08 (H) x 343.8 (V) mm
Max Colors 16.7 million
Resolutions VGA : 640 x 480 (including 640 x 350) • SVGA : 800 x 600 (including 720 x 400) • XGA : 1024 x 768 • SXGA : 1280 x 1024 • UXGA : 1600 x 1200 • FHD : 1920 x 1080 • WUXGA : 1920 x 1200* * Recommended for optimal picture quality
Video Signals Interlaced HDTV, NTSC, PAL and SECAM video; Composite video
Multi-power Supply 100-240V AC - 50/60Hz + 24 VDC
Power Consumption Operating AC/DC: 59W (max)
Dimensions (WxHxD) 621 x 435 x 92.2 mm
Weight 14.6 kg
Operating Temperature Temperature -15°C to +55°C
Storage Temperature Temperature -30°C to +70°C
Humidity Up to 95%
IP IP66 front – IP22 rear (EN60529)
Compass Safe Dist. Standard: 190cm - Steering: 110cm
Signal Terminals
DVI-I IN 2 x 29p DVI Female (or as VGA IN with adapter)*
DP1.2 IN 1 x 20p DisplayPort (female)
Comp. Video IN 2 x BNC Connector (female)
SCOM RS-422/485 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer
SCOM+Touch 1 x USB TYPE A Connector (female)
SCOM Ethernet 1 x RJ45 Connector for Remote Control
SCOM RS-232 1 x 9p D-SUB (female) non-isolated+Buzzer
VGA OUT 1 x 15p HD D-SUB (female) - Clone of VGA IN**
Potmeter/User 1 x 9p D-SUB (male) (Potentiometer IN, +5VDC OUT, BRT +/- IN)
AC Power IN 1 x Std IEC Inlet
DC Power IN 1 x 2-pin Terminal Block 5.08
* DVI-I Port #1 as VGA IN also acts as clone to VGA Signal Out (buffered).
**Tested at recommended resolutions. The VGA output signal (buffered) is at same resolution and sync as the VGA input. The output is working even if the display unit is turned off, but power cable/supply must be connected/provided.
Note for DVI and VGA signal inputs: DVI-I #1, DVI-D #1 and VGA #1 is Single Link. DVI-I #2, DVI-D #2 and VGA #2 is Dual Link.
Other Models
2310102110 HD 15T22 Marine display 15" MMD, IEC60945 approved
2310120095 HD 19T22 Marine display 19" MMD, IEC60945 approved
2310102112 HD 24T22 Marine display, 24" MMD, IEC60945 approved
2310102113 HD 26T22 Marine display, 26" MMD, IEC60945 approved
ACCESSORIES
2310111138 HD TMB SX1 C1 table mount for HD 24/26 monitors
2310111141 HD TMB SX1 B1 Table-ceiling mount for HD 17-19 monitors

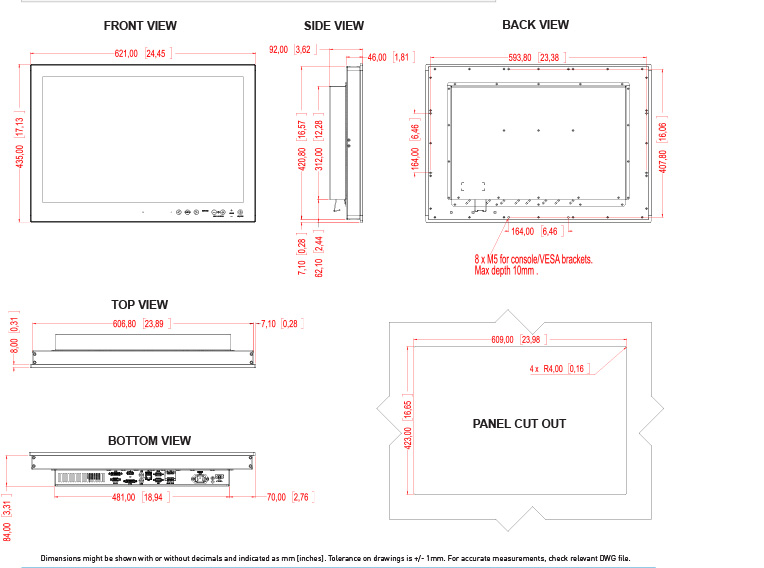

HD 26T22 26 inch Marine Display Dimensional Drawing

Date Name Category Size Document
26.03.2024 MD-SDoC-2310102113-IHM-8003-56005-126555 Declaration 71.88 KB Login to download
21.09.2023 2310102113 HD 26T22 Marine display User manual Manual 21.34 MB Download
21.09.2023 2310102113 HD 26T22_DoC Declaration 608.58 KB Download
