HP-10T-MED

Item Number: 2131000160

Horn Loudspeaker, 10W, 100V, IP66/67

  • Suitable for outdoor and indoor installation
  • IP66/67
  • 70V / 100V
  • Tappings: 1W - 2.5W - 5W -  10W
  • MED Approved
MED EU Certification icon MED Certification
IP66 IP66
IP67 IP67

The HP‑10T-MED is a compact 10 W horn speaker delivering a powerful 107 dB SPL at 1W/1m. Built from durable Ronfalin C110 (PC+ABS) and rated IP66/67, it ensures reliable performance in harsh indoor and outdoor environments. With a frequency range of 370–11000 Hz, wide dispersion, and a robust mounting bracket, the HP‑10T-MED is ideal for public address, safety, and industrial communication systems.

Installation, Operation and Maintenance Procedures

  • Remove the lid and lead cable through the cable gland.
  • Connect to terminal 70V: white-green or 100V: white-red.
  • Select the required power by changing the position of the black wire connected to the transformer; choose according to the label inside the loudspeaker.
  • Fasten bracket with 1-3 screws.
  • Fasten the lid with a torque of 1.5 Nm.
  • To change the loudspeaker's position, please adjust the bracket (by loosening/tightening the screws) as required.
  • For optimum performance, always use the correct voltage/power and operate within the frequency limits as stated.
General
Rated power 10W
SPL 1W / 1 m 107 dB
SPL rated power 116 dB
Effective freq. range 370 – 11000 Hz
Dispersion (-6dB) 1kHz / 4kHz 155° / 52°
Enclosure Material / Colour Ronfalin C110 (PC+ABS) / RAL 7035
Mounting material Stainless steel bracket
Dimensions Ø139 x 200D
Termination Spring clamps
Connection 1x M20 cable gland, 1x M20 blanking plug
M20 cable gland sealing range 5 - 12 mm
Weight 1.1 kg
IP-rating 66 / 67
Max. / min. amb. temp 90°C / -50°C
Thermal protection Integrated thermal fuse
Environmental Condition Exposed

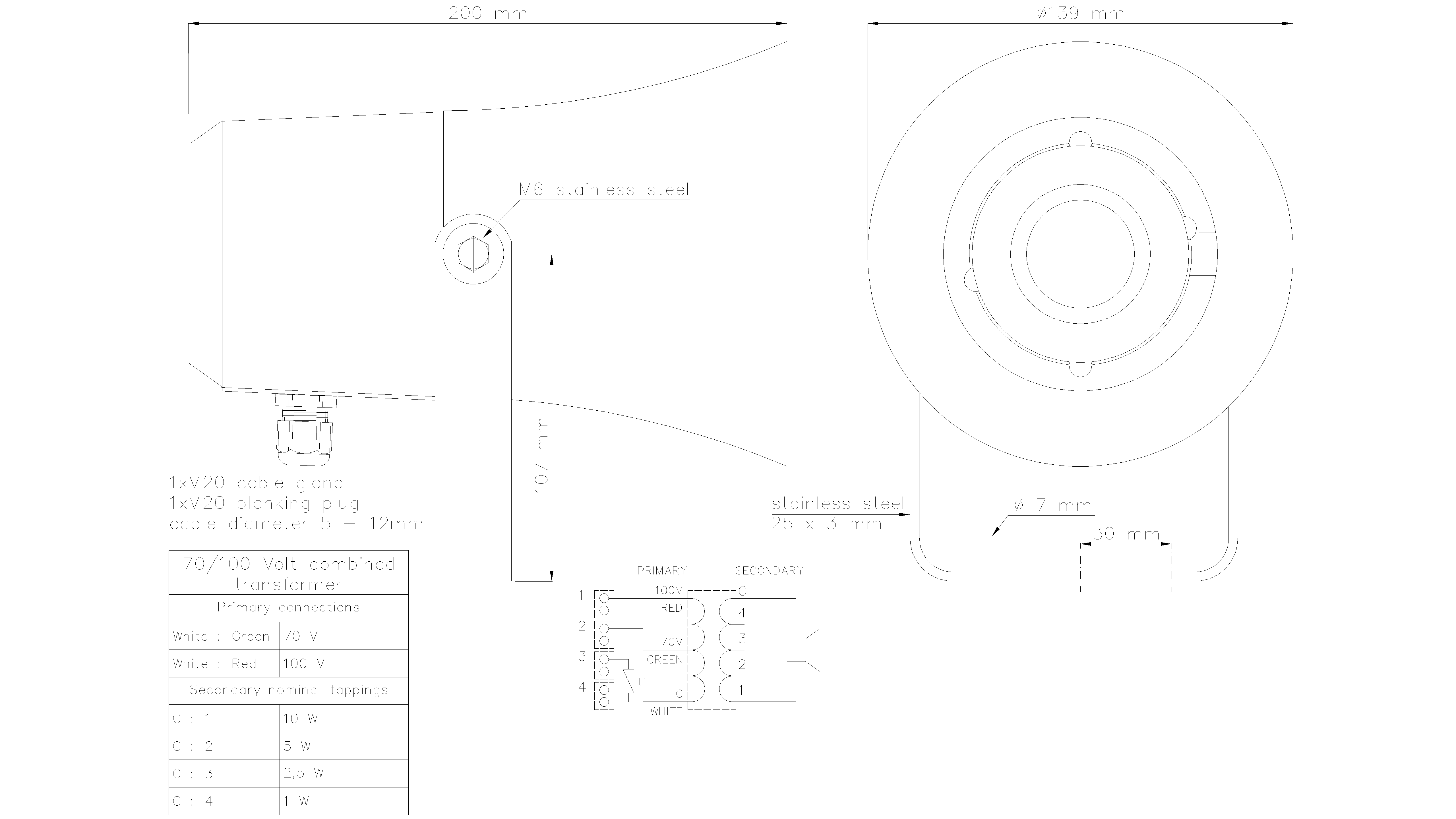

2131000160-HP-10T-MED_Dimensional_Drawing

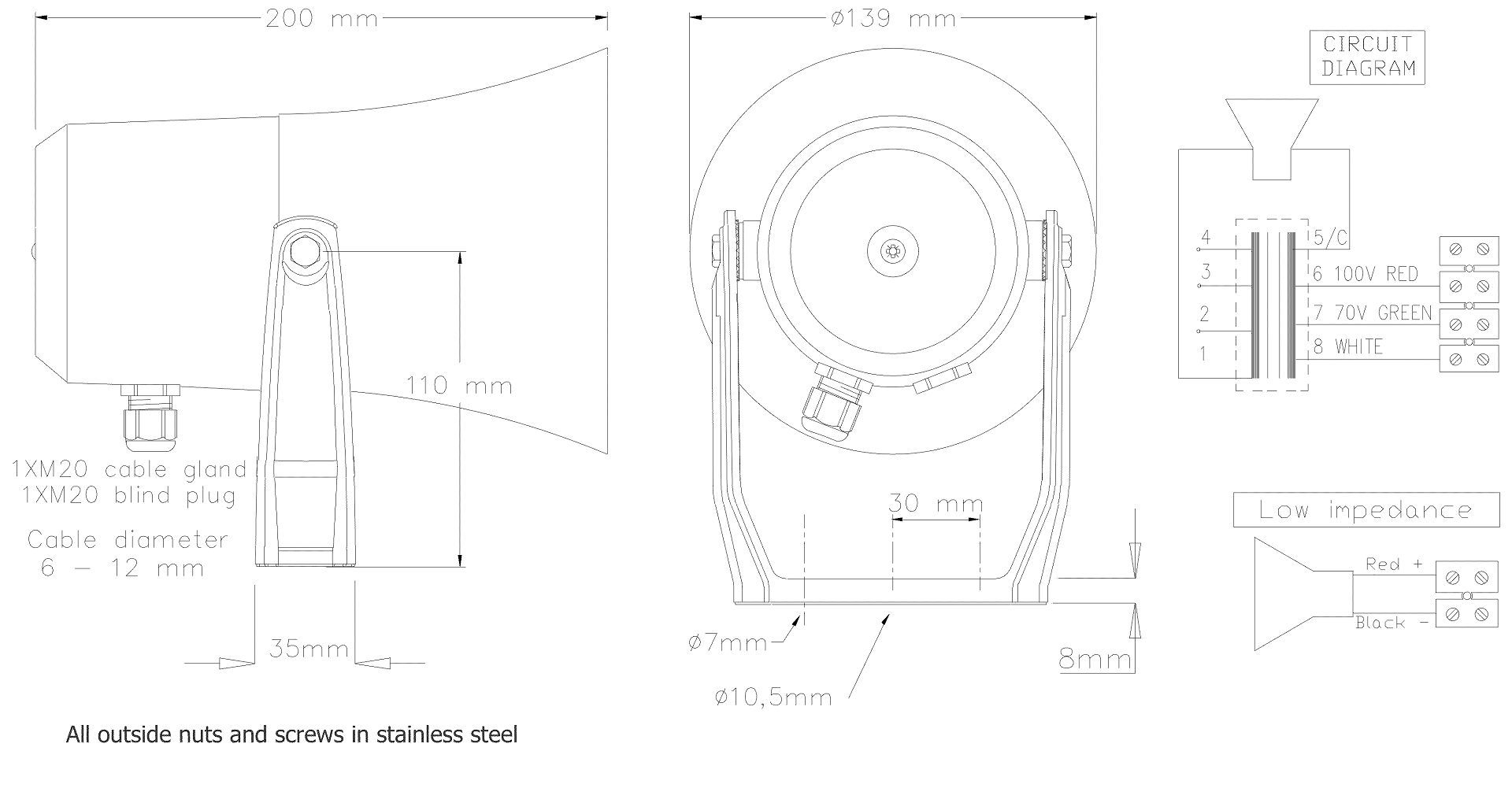

4000014933-HP-10TF-Image
