HT20370 ENIX Client for 2 monitors

Item Number: 2310120058

Working Station

ENIX Client

  • Fanless
  • Compact
  • IoT enabled
  • TPM 2.0

The HT20370 ENIX Client for 2 monitors is a high-end platform with an enhanced chassis that includes external disc bays at the front. The i5 processor option ensures state of the art computing performance is delivered. It is the most versatile rugged PC solution for the professional maritime segment. The item comes with a rack kit with side rails.

The ENIX Client is the successor to the best in class and highly successful ENIX-2087 computer. The new model incorporates the latest processor technologies and enhanced feature sets, thus providing greater versatility for high-end maritime system applications.

General
Processor / CPU and FSB Speed Options: 1 x Intel® Core™ i5-9500TE, 6-Core 2.20GHz - 3.60GHz, 9MB Cache
Memory 16 GB ram
Installed Operating System Windows® 10 IoT Enterprise 2019 LTSC (64bit) installed
Storage 480GB SSD
Power 230VAC
Power Manager ACPI - Temperature, voltage, cooling fans with auto throttle
Power Monitoring Watchdog Timer, reset: 1 sec~255 min & 1 sec. or 1 min/step
Max Resolution / Max Hz Max 3840 x 2160 (4K UHD) @ 60Hz for DP (DisplayPort)
BIOS UEFI, ACPI support
PCI Slots / PCIe Slots: 1 x PCIe 3.0 x16 + 2 x PCIe 3.0 x4 (1 x x8) + 1 x PCIe 3.0 x1
Serial Port 1 x DB9M, RS-232/RS-422/RS-485 un-isolated Baud Rate: Max 115.2Kbps
USB Ports 2 x USB 3.1 Type A (<3m) ports in front
4 x USB 3.1 Type A (<3m) ports in rear
1 x USB-C (DisplayPort - Power Distribution enabled, 60W) in rear
Audio Ports Realtek HD Audio supports 2.0 channel, Mic. in, Line out (2x3.5mm Jack)
Audio 2W Amplified with Line-in, Line-Out, Mic via 1 x DB9F
Ethernet Ports 2 x RJ-45, LAN 10/100/1000Mbps,Intel®,Support for Intel® Teaming
2 x RJ-45, LAN 10/100/1000Mbps (non intel)
System+Graphics Chipset / Connectors Intel® Q370 / Intel® UHD 630
DirectX Support 12.0, Shader Model 6.4, OpenCL 2.1, OpenGL Support
4.5/linux, Vulkan 1.1.97
1 x USB-C + 2 x DisplayPort 1.2 (2 x Display clone + 1 extended)
Operating Temperature -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature -20.0°C / -4.0°F to 70.0°C / 158.0°F, Humidity up to 95%
Compass Safe Distance Standard: 150 - Steering: 130 cm
Approvals, Certificates, Testing
Approval and Certificates IEC 60945 4th (EN 60945:2002)
IACS E10, EN61162
EU RO MR - Mutual Recognition by DNV
ABS - American Bureau of Shipping
BV - Bureau Veritas
CCS - China Classification Society
ClassNK - Nippon Kaiji Kyokai
KR - Korean Register of Shipping
Shock 5g/11ms
Vibration 0.7g (IEC 60945 / IACS E10)
Air Pressure Maximum Altitude Operating: 4000m - Storage: 12912m

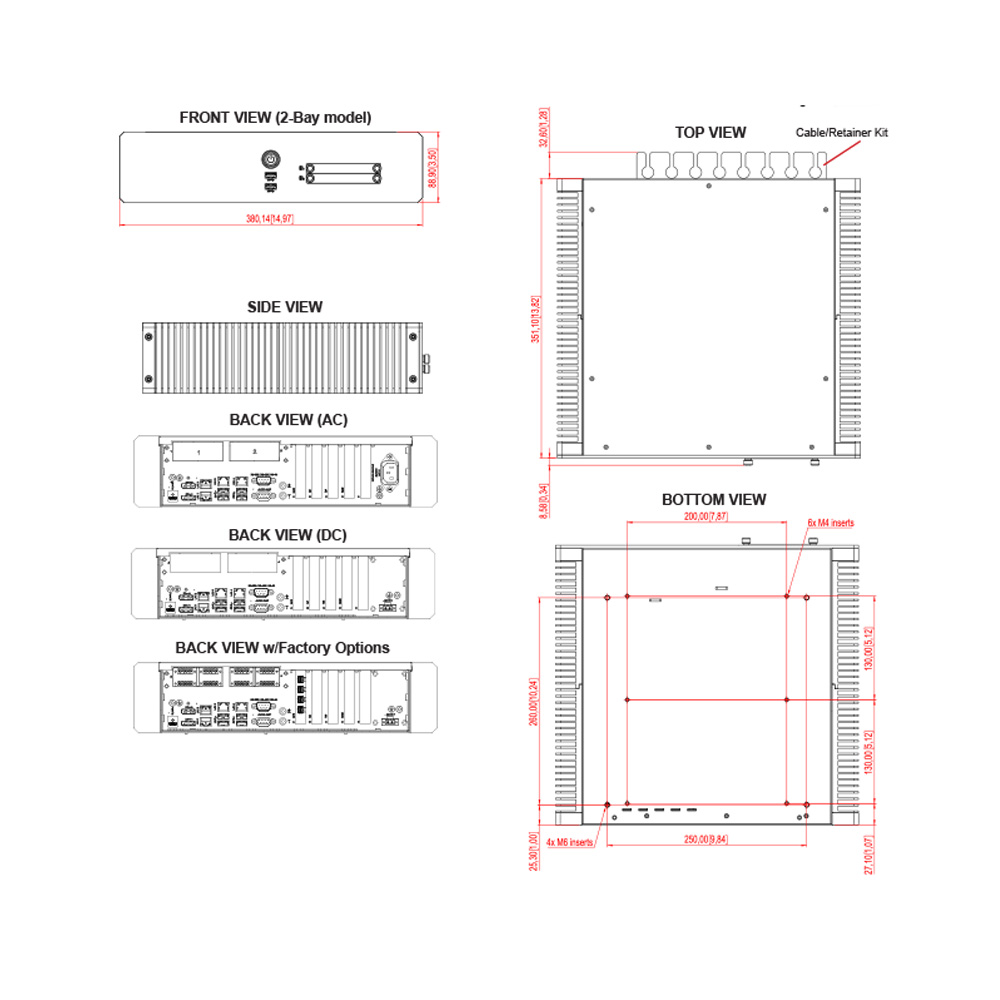

Dimensional Drawing HT20370 ENIX Client for 2 Monitors

Date Name Category Size Document
26.03.2024 MD-SDoC-2310120058-IHM-8003-56005-126588 Declaration 71.86 KB Login to download
21.09.2023 2310120058 HT20370 ENIX Client for 2 monitors_Manual Manual 14.17 MB Download
21.09.2023 2310120058 HT20370 ENIX_Type approval Certificate 244.64 KB Download
21.09.2023 2310120058 HT20370 ENIX_DoC Declaration 205.03 KB Download
