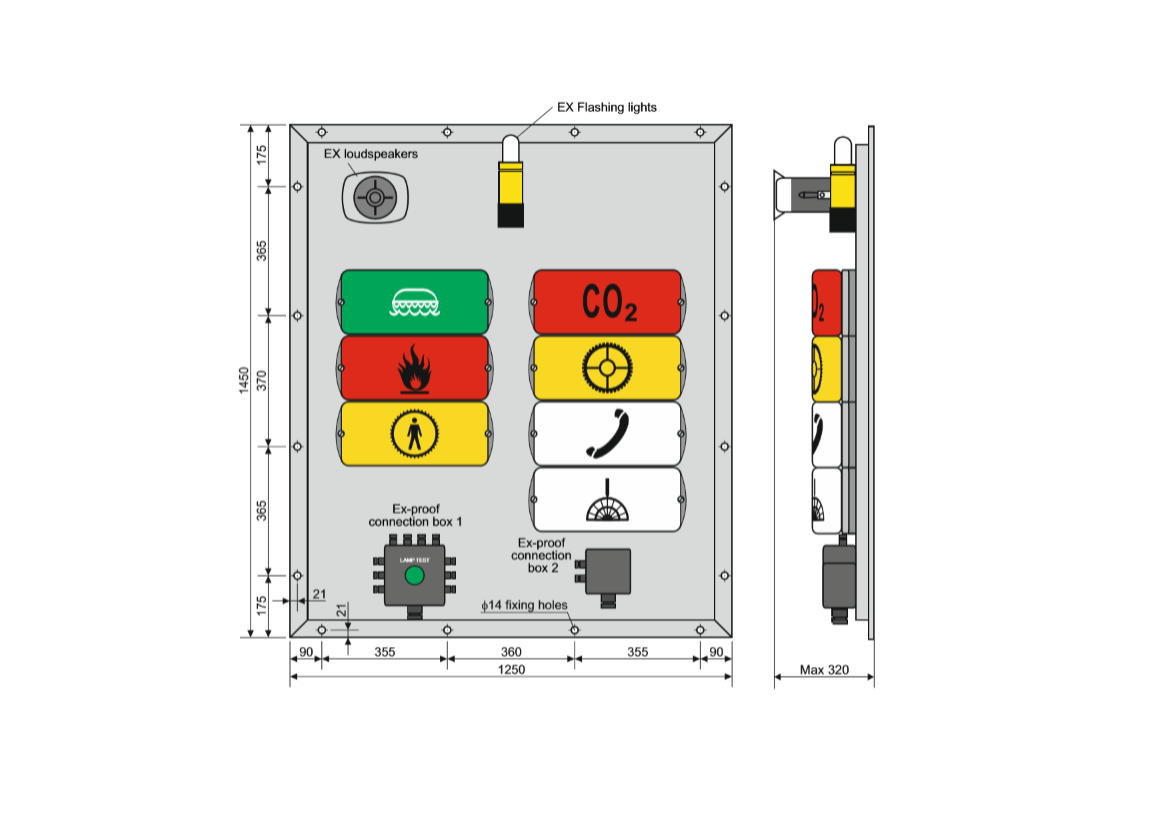

ITS-07-230-2FL-Ex

ITS-7L-230V-2FL-1S-EX

Item Number: 2340210024

Explosion-proof Light column with LED, flashing lights and loudspeakers or sirens.

  • 7 LED symbols
  • Withflashing lights
  • WithLoudspeakers 110dB
  • Lamp test/power supply indication
  • Bulkhead mounting
  • High quality components and modern concept
  • Power supply: 230V AC
  • Easy to install

The Vingtor-Stentofon explosion-proof Light Column is a complete alarm tower designed for bulkhead mounting in board ships and particularly within the area of engine room, where requirements for several alarms signalization by visual and/or audible means exist. The  Vingtor-Stentofon Light Columns System has been developed having in mind the basic idea of unifying all the alarms signalization within one common system. The explosion-proof Alarm light columns with LED illumination and audible and visual alarms provide visual and audible alarm signals, controlled by the control unit.

The explosion-proof light column comes equipped with integrated LE diodes, programable sirens for different tones, flashing lights and lamp test/power supply indication. LED symbols for different kind of alarms: GENERAL (green-white), CO2 (red), FIRE (red), MACHINERY (yellow), DMA (yellow), TELEPHONE (white), TELEGRAPH (white).

Recomended devices for offshore plattform:

Each system can be designed and produced per technical project requirements: ITS-L-V-FL-S-EX; L: Number of LEDS;  V: Power Supply; FL: Number of flashing lights; S: Number of Loudspeakers or Sirens; EX: Explosion Proof



General
IP-class IP-66
Power Supply 230V AC, 110V AC, 24V DC
Siren/Loudspeaker 110 dB
Flashing Energy 5J
LEDs Up to 12 symbols
Compliance EEx de IIC T5/T6 (EEx d IIC T5/T6 for XB9)

ITS-07-230-2FL-Ex
