KNSP-01

Item Number: 2213000200

Heavy Duty Telephone with Door

  • Made for marine environment
  • Full phone keypad plus special function keys
  • Door has smart stay-open or stay-shut mechanism
  • Good audio quality
  • Fluorescing buttons enhance correct dialing
  • Magnetic reed hook-switch gives minimal tear and wear
  • Powered by phone line
IP66 IP66

The Vingtor-Stentofon Heavy Duty Analog Telephone is made for environments that need a telephone which can withstand rough usage and treatment. The telephone is well suited for indoor marine usage – due to the thick aluminum casing, the stainless steel materials, the steel cable into the phone from bottom, and the fluorescing keypad. Industrial indoor environments are also suitable. The telephone is easy to use with a full keyboard with large buttons. Function keys are for :

  • Redial (redials last number)
  • Store (storing speed dial numbers)
  • Pick (pressed before a key when using speed dial)

External ringer unit recommended – like the HB-105 or CRB-7. Wall mounting plate in stainless steel is suitable for installations which do not give rear access to the phone (this plate is included).

General

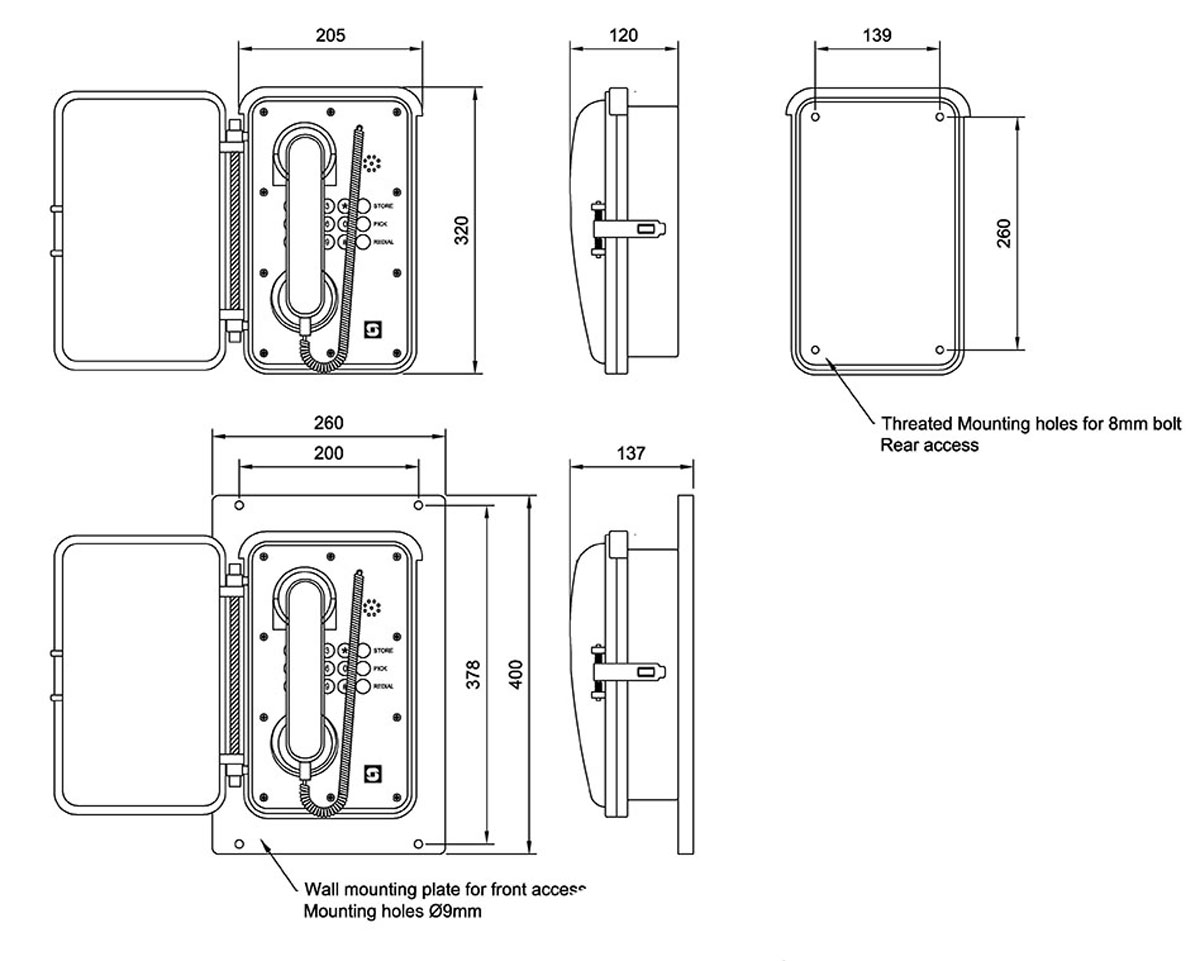

Dimensions (WxHxD) 205 x 320 x 148
Weight 5,0 kg
Mounting Wall mounted
Temperature range -30°C - 60°C (ambient)
Humidity range 10% – 95% (relative)
Power 48 – 69 VDC
Ringing intensity > 70 dB
Construction 5 mm aluminum casing and stainless steel components
Phone cable Stainless steel 60 cm, from below phone
Handset Strong, anti-knock resistance
Handset cable 40 cm crimp cable
IP class IP 66
Standard buttons 12 buttons : 1-9, 0, *, #
Function buttons STORE: used to store up to 10 speed-dial numbers (max 16 digits) PICK: pushed before standard button to initiate speed dialing REDIAL: dial once more the last dialed number

KNSP-01

Date Name Category Size Document
27.08.2024 Quick Guide Heavy Duty Analog Phones KNSP-01/KNSP-09 Manual 971.24 KB Login to download
20.05.2023 MD-SDoC-2213000200-IHM-8003-41818-1586 Declaration 72.14 KB Login to download
24.08.2022 ACM Polski Rejestr Statkow No TE-2040-880575-14 Certificate 112.09 KB Download
18.09.2019 2213000200 Heavy Duty Telephone Door CAD 2D 145.71 KB Login to download
8.11.2017 Declaration of Conformity 2213000200 Heavy Duty Telephone Door Declaration 128.43 KB Download
