M364C LR Stabilized 30 Hz Color Thermal IP Camera Image

M364C LR Stabilized 30Hz Color Thermal IP Camera

Item Number: 2310111183

Thermal IP Camera

  • 640 x 512 pixel resolution
  • 24° x 18° field of view
  • 8x continuous electronic zoom
  • 2 axis gyro-stabilization
  • 30x optical zoom
  • Ball up or ball down mounting
  • FLIR Boson 640 × 512 Thermal Sensor
  • MSX Multispectral Imaging
  • Integrated AHRS (Attitude Heading Reference Sensor)
  • IPX6, IP6X

The M364C LR Stabilized 30Hz Color Thermal IP Camera is a high definition low light camera with one of the most advanced FLIR thermal imaging cores that provides an elite level of awareness on the water.

M364C LR Stabilized 30Hz Color Thermal IP Camera

It uses multispectral imaging to deliver exclusive FLIR Color Thermal Vision™ (CTV) technology.Color Thermal Vision blends visible camera details with a thermal image, overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene.

Outstanding imaging performance, a narrow field of view lens for extended range performance, and gyro-stabilization make the M364C LR an indispensable tool for the maritime industry.

The M364C LR Stabilized 30Hz Color Thermal IP Camera provides steady, stable viewing in heavy seas keeps eyes on-target. It utilizes two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw. The horizontal stabilization automatically keeps the camera positioned in the same direction as the vessel turns. Additionally, the camera features an integrated AHRS (Attitude Heading Reference Sensor).





Thermal Camera
Detector Type 640x512 VOx Microbolometer
Video Refresh Rate 30 Hz or <9 Hz
Field of View 18 ° x 13.5 °
Focus Fixed 3m to infinity
Optical Zoom N/A
E-Zoom 4x Continous
Image Processing FLIR Proprietary Digital Detail Enhancement
Focal Length 25 mm
Visible Camera
Detector Type 1/2.8” Exmor R CMOS
Lines of Resolution High Definition up to 1080/30p
Minimum Illumination 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on)
Zoom 30× Optical Zoom
E-Zoom 12x
Focal Length 129 mm to 4.3 mm
Field of View Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
System Specifications
Gyro Stabilized Yes
ClearCruise Augmented Reality Yes, with Raymarine Axiom
Pan/Tilt Adjustment Range 360° Continuous Pan, +/- 90° Tilt
Analog Video Output NTSC
Analog Video Connector Types BNC
Network Video Output Dual H.264 IP Network Video Streams
HD-SDI Lossless Video Output Yes
Power Requirements 12 to 24 VDC
Power Consumption 41 W typical, 56 W typical (with heaters on.) Note: FLIR recommends using a 75 W power supply
Environmental
Operating Temperature Range -25°C to +55°C
Storage Temperature Range -30°C to +70°C
Automatic Window Defrost Standard at Power-Up
Sand/Dust Ingress Mil-Std-810E or IP6X
Water Ingress IPX6 (heavy seas, power jets of water)
Shock 15g vertical, 9g horizontal
Vibration IEC60945
Lightning Protection Standard
Salt Mist IEC60945
Wind 100 knots
EMI IEC60945
Physical
Weight 6.3 kg without mounting riser; 6.75 kg with mounting riser
Size Camera: Base diameter: 222.2 mm Height: 328.3 mm Camera attached to mounting riser: Base diameter (with seal): 254.0 mm Height: 365.5 mm
Range Performance
Person in the Water 1,494m
Small Vessel 3.9 km

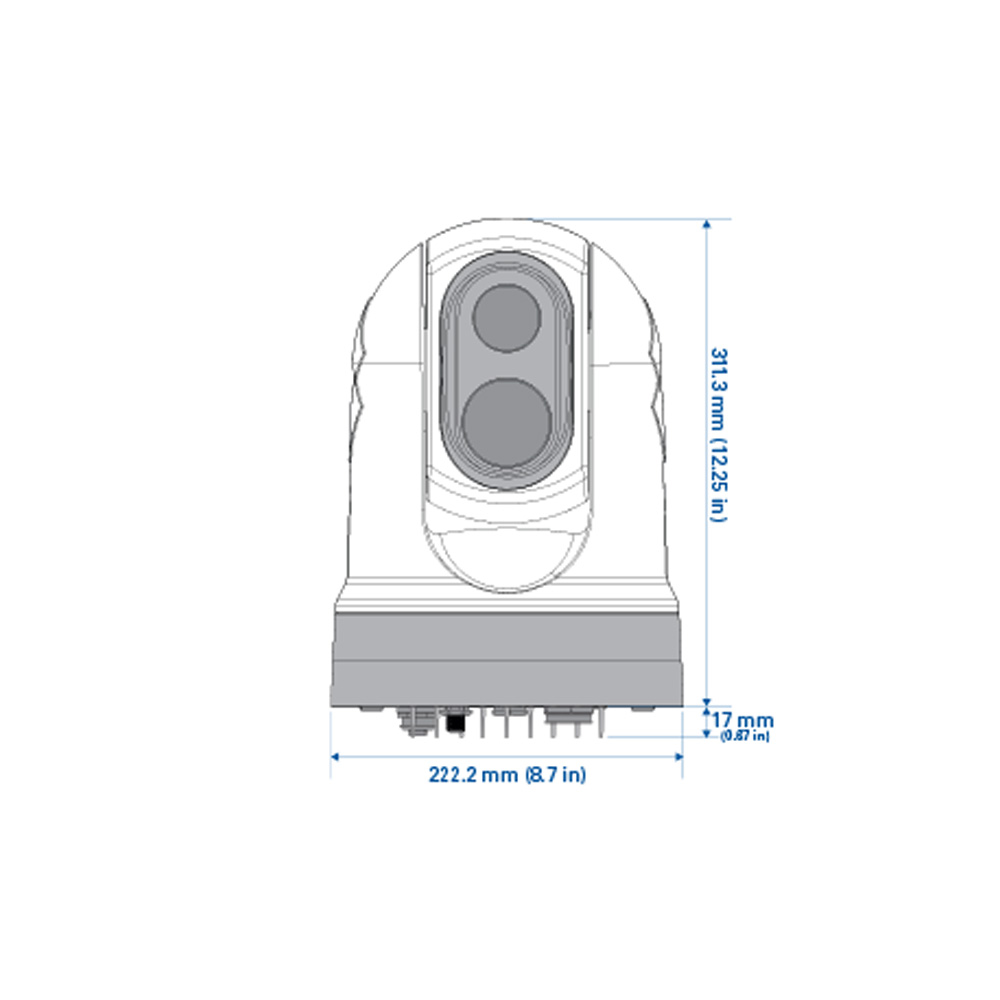

Dimensional Drawing M364C LR Stabilized 30Hz Color Thermal Camera
