MBX2MAA Communication box

Item Number: 2310131026

EXPLOSION-PROOF COMMUNICATION BOX IN STAINLESS STEEL

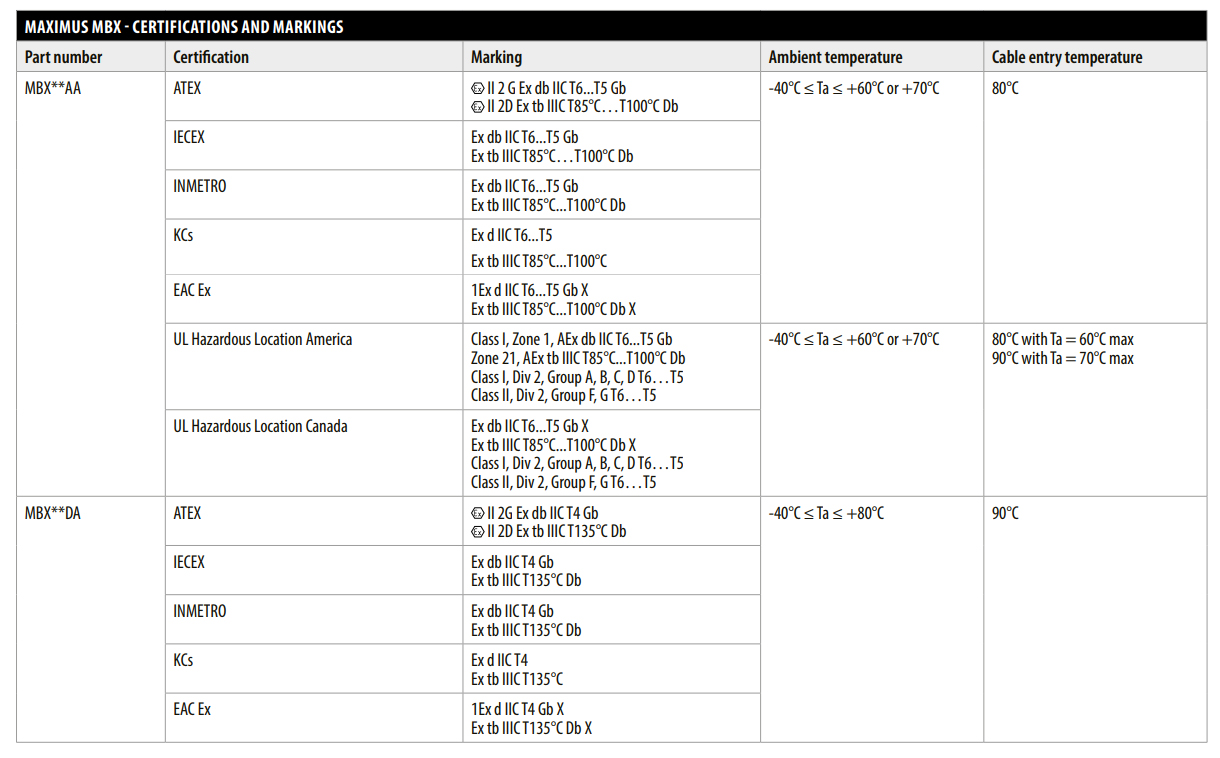

  • Certifications for use in Zones 1 and 2 IIC Group (Gas)
  • Zones 21 and 22 IIIC Group (Dust)
  • Ambient temperature up to +80°C (+176°F)
  • AISI 316L stainless steel construction
  • 3 RJ45 ports, Fast Ethernet (10BASE-T/100BASE-T)
  • 1 SFP port, Fast Ethernet (100BASE-FX), for fiber optic connection
  • 2 bypass for analog video signals with BNC connectors
  • 2 bypass for I / O signals with multi-pin connectors
  • Input voltages available: 230Vac, 120Vac, 24Vac
  • Extended/Industrial range electronics
  • Operating temperature: from -40°C (-40°F) up to +70°C (158°F)
  • IP66, IP67, IP68, IP69

MBX2MAA is a communication box designed to integrate seamlessly with one or more IP or analogue cameras from the Videotec MAXIMUS range. This device can connect a 24Vac-powered PTZ and its washing kit, or two fixed cameras equipped with washing kits.

MBX2MAA provides the devices that it connects to with a low-voltage local power supply. It also offers a Fast Ethernet connection thanks to the integrated Ethernet switch that is equipped with 3 RJ45 ports and an SFP port for fibre optic connection.

The SFP module can be chosen according to the requirements of the installation. It has been designed so that the inside gives easy access to cables, making connection effortless. The internal circuitry also makes it possible to bypass analogue video signals and all input/output connections available across the Videotec MAXIMUS range.

The robust AISI 316L stainless steel construction means maximum anti-corrosion properties for use in industrial and marine environments. Thanks to the integrated filter, any products connected to MBX comply with Lloyd’s Register Marine Type Approval standards for electromagnetic (EMC) compatibility. MBX2MAA is the complete and competitive solution for professional installation of Videotec’s MAXIMUS explosion-proof products.
