MPX2PVW0000A

MPX2PVW0000A

Item Number: 2310131013

Explosion-Proof Analog Camera, PTZ, PAL, 36x zoom, Wiper

IP66 IP66
Atex
  • Electropolished AISI 316L stainless steel explosion proof P&T head
  • ¾” NPT threaded hole for use of cable glands or conduit
  • Variable speed: 0.1°-100°/s Pan and Tilt
  • Extremely easy electrical connections directly into the unit, thanks to the explosion-proof inspection box
  • Day/Night camera:
    • True Progressive Scan
    • High resolution: up to 550 TV Lines
    • Advanced image stabilizer (Stable Zoom Mode)
    • Day/Night (Auto ICR: automatic removal of IR filter)
  • Up to 2 simultaneous video streams
  • Position accuracy: 0.02°
  • Integrated wiper
  • 3 meters pigtail included
  • Certifications for use in Zone 1 and 2, Group IIC T6 (Gas), and in Zone 21 and 22, Group IIIC T85° (Dust)

The MPX2PVW0000A ex-proof PTZ cameras ensure excellent performance for monitoring critical processes in areas with risk of explosion, such as refineries, gas pipelines, oil tankers, offshore platforms, industrial processes, chemical industries, etc. The area is always monitored, thanks to the speed and detection accuracy of the target. Made of AISI316L stainless steel, which is excellently resistant to UV rays, salt mist and air pollution.

Description
Weight 27 kg

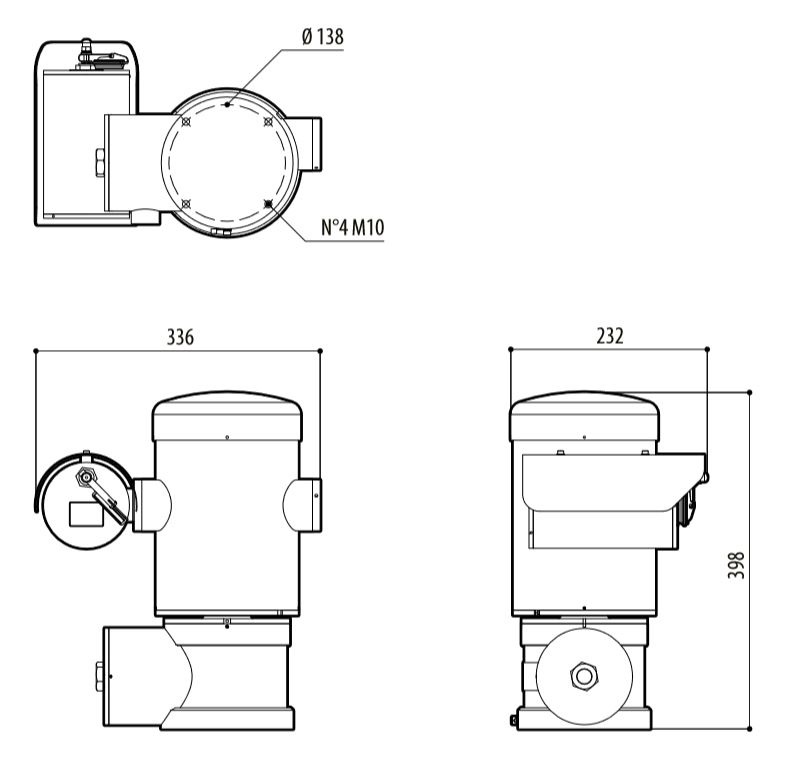

Dimensions (WxHxL) 336x398x232 mm
Input voltage 24Vac, 50/60Hz, 120W max
Video output 1x 75 Ohm 1Vpp (PAL/NTSC)
I/O alarm card 5 alarm inputs; 2 relay outputs (1A 30Vac/60Vdc max)
Operating temperature -40°C to +60°C
Relative humidity From 10% up to 95% (no condensation)
Surge immunity Up to 2kV line to line, up to 4kV line to earth (Class 4)
Horizontal rotation 360°, continuous rotation
Vertical rotation From -90° up to +90°
Horizontal speed (variable) From 0.1° to 100°/s
Accuracy of preset positions 0.02°
IP protection degree IP66
White balance Auto, ATW, Indoor, Outdoor (Fix/Auto), Sodium Vapor Lamp (Fix/Auto), Manual
High horizontal resolution Up to 550 TV Lines
Image Sensor 1/4" EXView HAD CCD
Number of effective Pixels ~ 440 000 pixel
Min. Lighting Colour (IR-Cut Filter = OFF) (Interlace Mode) 1.4Lux / 1/50s_|n|_0.1 Lux / 1/3s
Min. Lighting B/W (Interlace Mode) 0.01 Lux / 1/3s
S/N ratio More than 50dB
AE control Automatic, Shutter priority, Diaphragm priority, Brightness priority and Manual
Back light compensation On/Off
Privacy Zone Masking On/Off (24 positions)
Maximum number of masking blocks to be displayed 8
Resolution of masking blocks 160x120 HxV
Focusing system Auto (Sensitivity: Normal, Low), Trigger PTZ, Manual
Optical zoom 36x, f=3.4 (wide) to 122.4mm (tele) / F1.6 to F4.5
Digital Zoom 12x (432x with optical zoom)
Horizontal field of view 57.8 degrees (wide) to 1.7 degrees (tele)
Minimum object distance 10mm (0.4in) (wide) to 1500mm (59.1in) (tele)
Shutter speed 1/1 ÷ 1/10 000s
