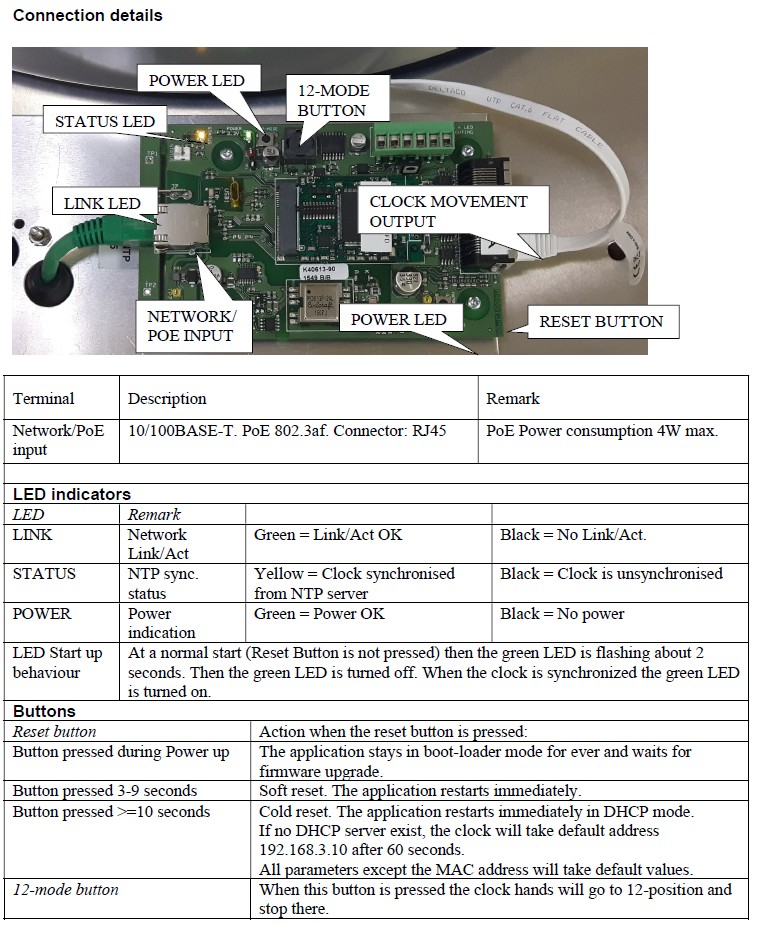

N9141490-10

Item Number: 1015680

Slave Clock, PoE, IP65, Ø400

  • Slave clock for outdoor purposes.
  • Casing; painted Aluminium, grey RAL 850-M and 4mm polycarbonate protective cover
  • NTP format
  • PoE (Ethernet)

To distribute correct time to different users in a Local Area Network (LAN) the Network Time Protocol (NTP) is used. NTP is a part of the protocol family TCP/IP. The clock is operated and controlled by Time distributed in the Network. (From the Master Clock)
Each clock movement has its own microprocessor to receive the time code, detecting the position of the hands and thereafter automatically set the hands to correct time.
Each clock has a unique IP address. The IP address, gateway, subnetmask and server IP address is set up via WEB-browser.

General
Mounting On-wall with bracket
Housing Aluminium, powder coated
Colour Grey, RAL 850-M

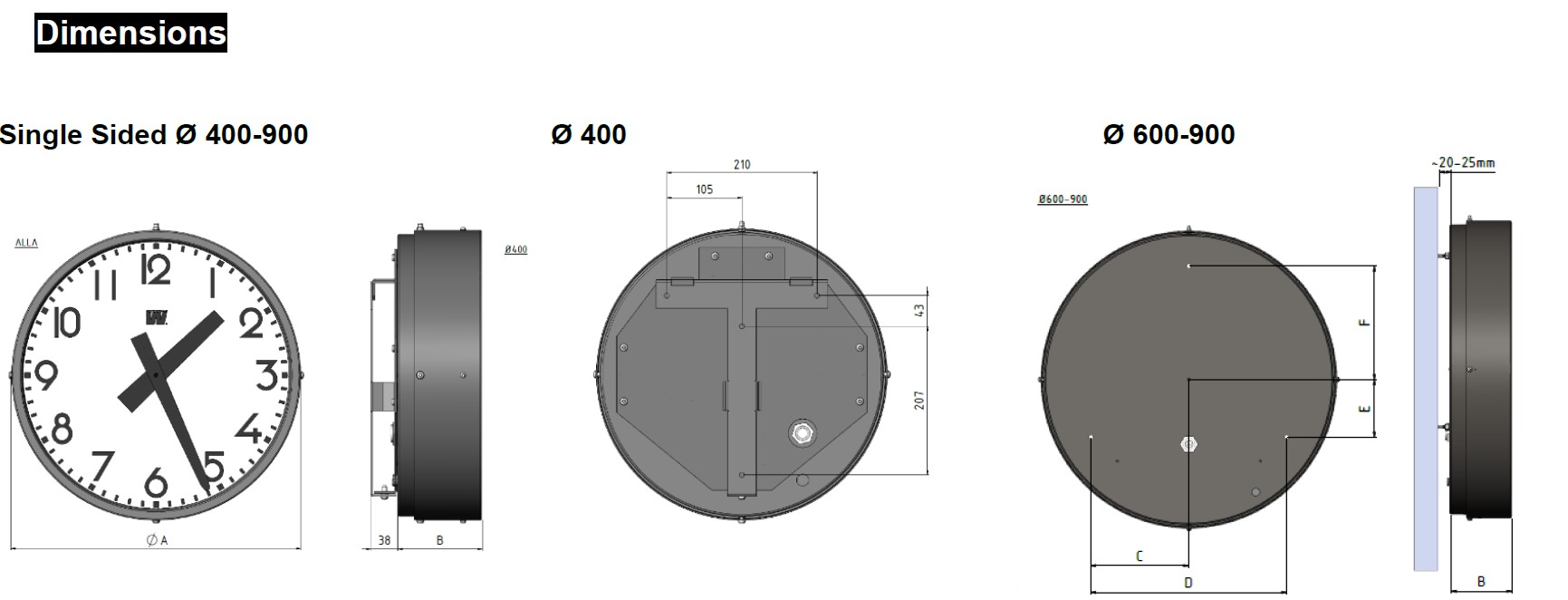

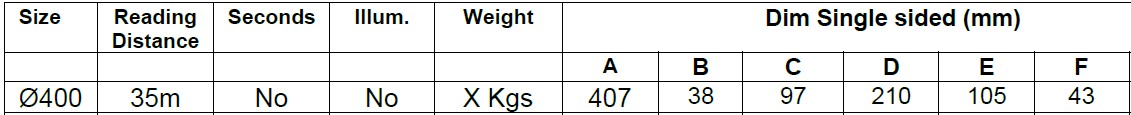

Dimensions (mm) Ø400 x 76 (D)
Protection IP-65
Connection Ethernet (PoE)
Supported Protocols SNTP version 3 and 4, MD5 authentication
NTP protocol modes Unicast client mode (point to point), support for DHCP option 42, Broadcast & Multicast mode (point to multipoint). Multicast group address 224.0.1.1
Microcontroller PIC16C558
Temperature range -20°C to +50°C
Power consumption 14 mA
