NTX2I0R00A NTX 35mm Thermal Camera

Item Number: 2310111169

Thermal Camera

  • Digitally signed firmware
  • Uncooled VOx microbolometer
  • 35mm lens
  • 336 x 256 resolution
  • Quick connectors
  • Built-in modular support
  • POE+
  • IP66, IP67, IP68, IP69
ONVIF Conformant
IP66 IP66
IP67 IP67
H.264

The NTX2I0R00A NTX 35mm Thermal Camera provides an efficient and preventative surveillance system in the most critical environmental conditions. The NTX thermal camera offers temperature detection based on the 4 central pixels of the image. As well as this, the radiometric functions offer the option to set a temperature limit, beyond which an alarm will be raised.

These functions are necessary where fire prevention is required, or in applications such as monitoring critical equipment where the ability to identify something quickly and accurately is needed, to prevent problems and keep intervention times to a minimum.

NTX2I0R00A NTX 35mm Thermal Camera

The thermal camera can export all the data necessary for a centralized management of video feeds, data and alarms, and make it available to VMS via the ONVIF Profile T, Profile S and Profile Q communication protocols.

It is made entirely from electropolished AISI316L stainless steel and stands out thanks to its compact design and light weight. This, and the fact that it can be connected quickly, makes installation and maintenance easier. The modular support for wall, ceiling or parapet is supplied as standard.

The NTX2I0R00A NTX 35mm Thermal Camera has obtained Lloyd’s Register Marine Type Approval certification for the maritime sector. The fact that the NTX is extremely sturdy and of high quality means it is ideal for the most demanding applications in the maritime industry.

General
Radiometric Analysis definition of a specific area
Radiometric Alarm Activation If the temperature is over the threshold set, under the threshold set, between two thresholds set or outside the two thresholds set.
Mechanical
Material AISI 316L stainless steel with slot for safety chain
Unit weight 4.9kg (fastening support included)
4kg (fastening support not included)
Housing Window (Germanium window)
Thick 1.5mm
External treatment antiscratch (Hard Carbon Coating - DLC), antireflection
Internal treatment antireflection
Spectral range from 7.5μm up to 14μm
Medium transmittance (from 7.5μm up to 11.5μm) 91.2%
Medium transmittance (from 11.5μm up to 14μm) 80.9%
Electrical
Supply voltage / Current consumption 24Vac, 1.32A, 50/60Hz
24Vdc, 0.9A
PoE+ (IEEE 802.3at)
Power consumption 21W
Network
Ethernet connection 100 Base-TX
Connector RJ45
Cybersecurity
Digitally signed firmware
Password restricted access (HTTP digest)
Support of various user access levels
Control of accesses IEEE 802.1X
HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3
Centralized certificate management
Complies with ONVIF Security Service specifications
I/O Interface
I/O Alarm Board Input for remote reset: 1
Relay output: 1 (1A, 30Vac/60Vdc max)
Video Encoder
Communication protocol ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service
Device configuration TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
Streaming RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
Video compression H.264/AVC, MJPEG, JPEG, MPEG4
QoS Differentiated DSCPs for streaming and device management
Streams 3 Independent video streams
Selectable frame rate from 1 to 30 images per second (fps)
General Video web server
motion detection
Environment
Installation Indoors and outdoors
Operating temperature from -40°C up to +60°C
Surge immunity up to 1kV line to line, up to 2kV line to earth (Class 3)
Relative humidity from 5% up to 95%
Certifications
Electrical safety (CE) EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
Electromagnetic compatibility (CE) EN61000-6-4, EN50130-4, EN55032 (Class A), FCC Part 15 (Class A), ICES003
Outdoor installation (CE) EN60950-22, IEC60950-22
IP protection degree (EN60529) IP66, IP67, IP68 (2h30min, 2m, IP69
UL certification cULus Listed, TYPE 4X, TYPE 6P
EAC certification Yes
NDAA-compliant Yes
Lloyd's Register Marine Type Approval Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
Electromagnetic compatibility EN60945
Salty fog resistance EN60068-2-52
*Tested at 70°C for 16 hours in compliance with EN60068-2-2
Details
Image Device Uncooled VOx microbolometer
Interpolated resolution 720x480
Pixel dimensions 17μm
Spectral response - long wave infrared (LWIR) from 7.5μm to 13.5μm
Internal shutter (only for sensor compensation) Video stop < 1sec.
Digital Detail Enhancement (DDE) yes
Digital zoom 2x, 4x
Image updating frequency 7.5fps
Image updating high frequency 30fps
Scene range (High Gain) -40°C ÷ +160°C
Scene range (Low Gain) -40°C ÷ +550°C
Horizontal field of view 9,3°
Vertical field of view 7,1°
F-number F/1.2
Thermal sensitivity (NETD), standard camera < 50mK at f/1.0
Thermal sensitivity (NETD), radiometric camera < 30mK at f/1.0
Person (detection / recognition / identification) 1280m / 320m / 160m
Car (detection / recognition / identification) 3850m / 950m / 295m

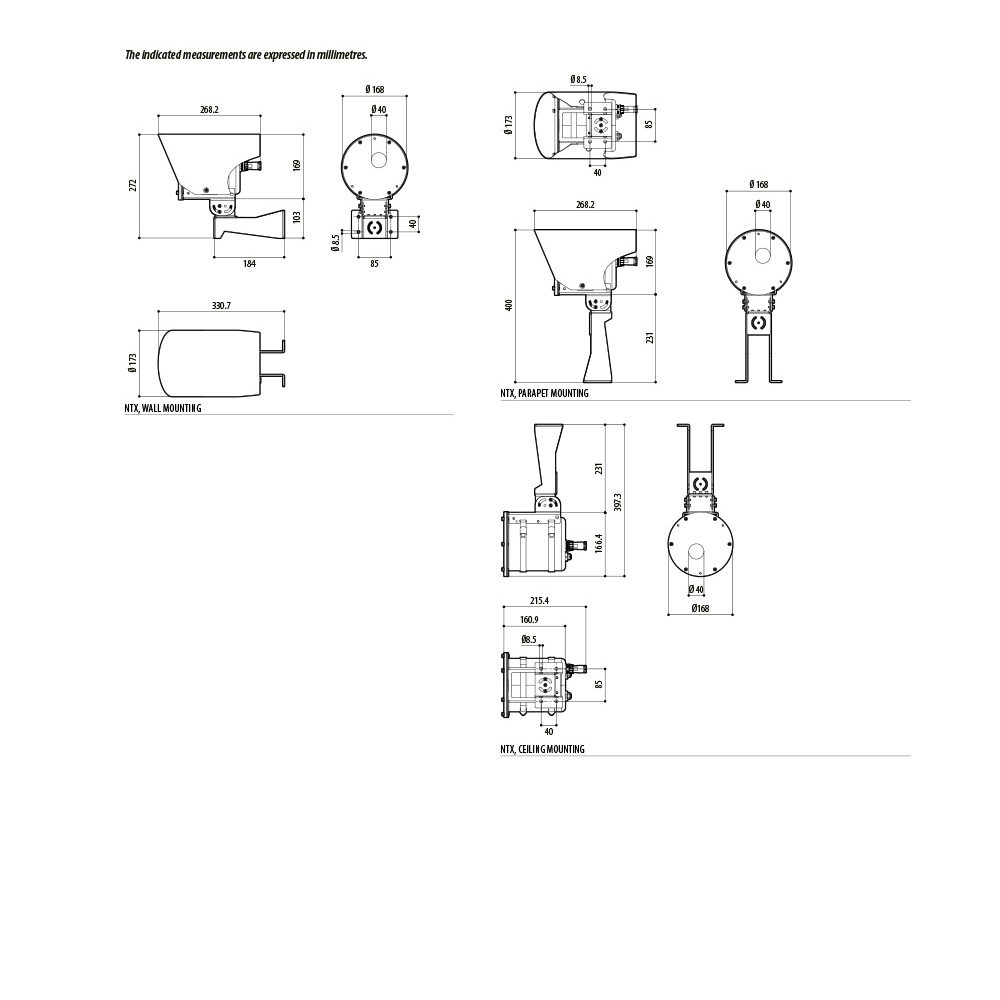

Dimensional Drawing NTX thermal Camera
