P-1308 Microphone Station

Item Number: 4000014310

Connection for redundant A and B systems
To be connected through I.S. barrier
Without zone selection button (predefined zones setup)
Weather proof
II 2G Ex ib IIB T5
Ex certificate: Presafe 19ATEX09403X Issue 0, IECEx PRE 19.0068X Issue 0 (Handheld Microphone 0008)
Ex Certificate: Presafe 19ATEX09412X Issue 0, IECEx PRE 19.0069X Issue 0 (Signal Splitter Board)
Compliant with NORSOK standards

The P-1308 is an “Emergency and All Call” Intrinsically Safe Microphone Station well-suited for Public Address A and B systems. The unit is usually used on lifeboat stations and emergency rescue runways, etc.

Mechanical

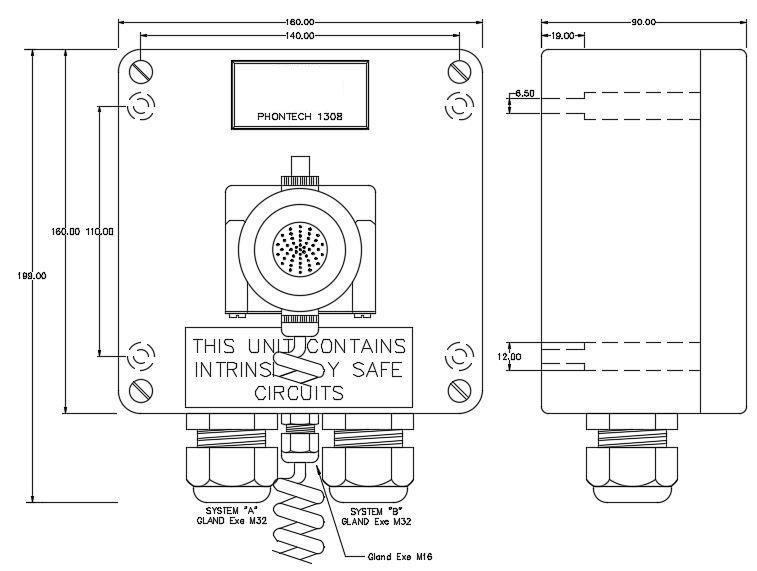

Dimensions (WxHxD)	160x160x(90+70) mm, overall (including gland) 199x160x(90+70) mm
Weight	2.5 kg
Material	GRP
Color	RAL 7000
Mounting	Wall
Fixing	4 x M5 bolt
Access	Front
Cable Entry	Bottom
Cable Type	BFOU(c) 0.75 (recommended)
Gland Type	2 x BBC Ex M32

Electrical
Power Supply	24VDC (+/- floating) from Central
Power Consumption	200 mA
Termination	Terminal blocks (inside)
Frequency Range	300-7000 Hz

Environmental
Temperature	-20°C to +40°C
Humidity	100%
Ingress Protection Rating Enclosure	IP-56 (Microphone IP-47)
Environmental Condition	Protected

SAFETY PARAMETERS FOR INTRINSICALLY SAFE CONNECTION
AUDIO:
Maximum input voltage	Ui=10 VAC
Maximum input current	Ii=200 mA
Maximum input power	Pi=1.0 W
Maximum internal capacitance	Ci=1.5nF
Maximum internal inductance	Li=0mH
SWITCH:
Maximum input voltage	Ui=28 VDC
Maximum input current	Ii=93 mA
Maximum input power	Pi=1.0 W
Maximum internal capacitance	Ci=0nF
Maximum internal inductance	Li=0mH
