P-1603 PAGA Alarm Control Panel

Item Number: 4000016817

Note: This product is only available as spare part.

  • RS485 data communication with MPA 1600 Operation Unit
  • 4 alarm keys marked with the text “ALARM” and red color
  • Cancel key
  • Protection against unauthorized use by means of time-trap functionality (the alarm keys and the cancel keys must be held for 1 sec. before activation)
  • 6 LEDs indicating alarm status in each zone
  • LED indicators for all keys
  • Dimmable backlight and LEDs, remotely controlled from the adjacent MPA P-1601 Control Unit
  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV-GL/ABS/RMRS/CCS/RINA type approval

The P-1603 is a manual alarm control unit in the MPA 1600 system. It is designed for flush mounting.

Mechanical

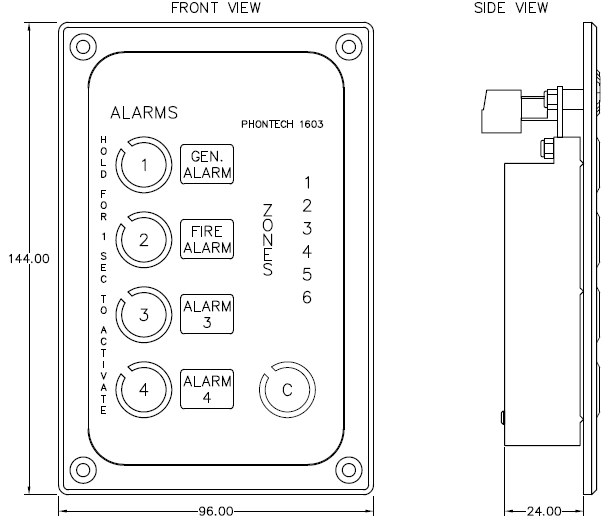

Dimensions (WxHxD) 96x144x24 mm
Weight 0.5 kg
Color RAL 9005 / Natural
Material Aluminium / Steel
Mounting Console
Fixing 4 x M4 bolts
Access Front
Cable Entry Rear
Cable Type 2-pair cable, twisted pairs, min 2x2x0.5 mm2
Electrical
Power Supply 24VDC from Control Rack (+/- floating)
Power Consumption 2.4 W
Termination Termination Block
Compass Safe Distance 50 cm
Environmental
Temperature -15°C to +55°C
Humidity 20% to 80% non-condensing
Ingress Protection Rating IP-44
Spare part
Main Board PN 4000085154 - BRD 03118-009
