P-5111

Item Number: 4000016715

Desk Mount Telephone

  • Watertight IP-65
  • Strong call tone ≥ 95db (A), 1m
  • Shock resistant housing
  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV-GL type approval

The P-5111 is a desk or wall mounted watertight analog telephone for industrial and exposed environments.

Mechanical

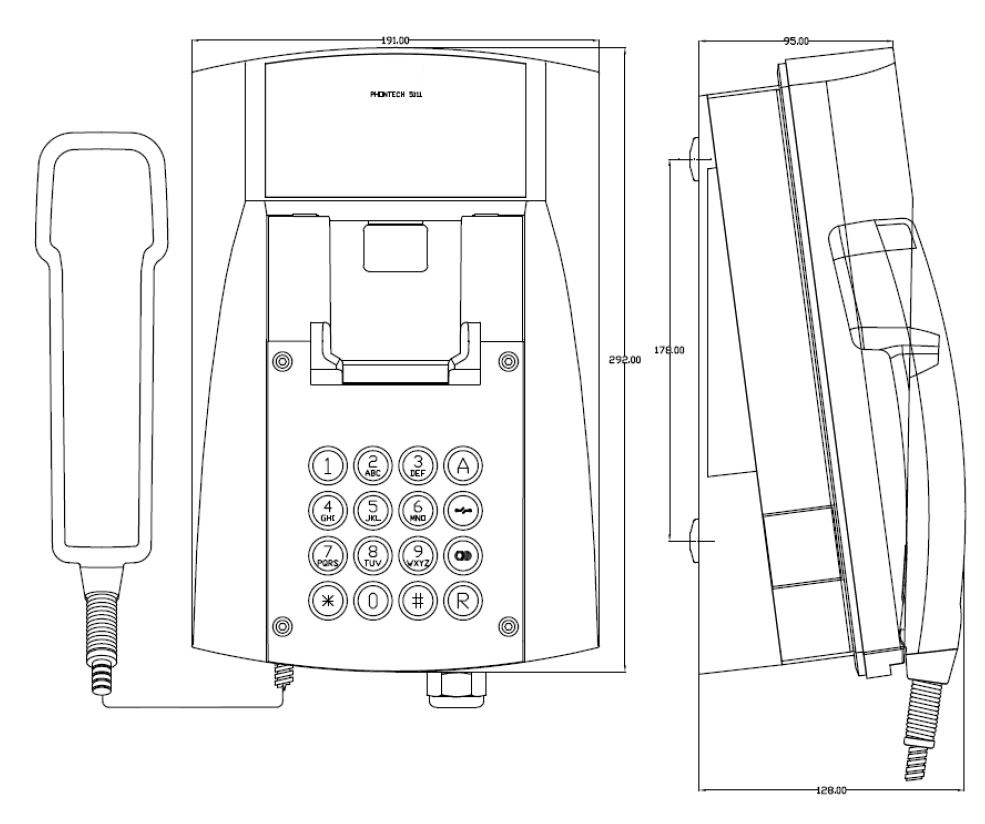

Dimensions (WxHxD) 191x317x128 mm
Weight 2.3 kg
Material Polycarbonate
Color RAL 9005
Mounting Desk / Wall
Fixing 4 x M6 bolts
Access Front
Cable Entry Bottom
Gland Type 1 x M20, 1 x M20 blind plug, 2 x M12 blind plug
Electrical
Power Supply Telephone line (self-contained)
Telephone line feed voltage 24-64 VDC
Ring Voltage / Frequency 30 < R < 90V / 16 < F < 68 Hz
Dial Method PD (1.5:1 (60/40ms) or 2:1 (66.7/33.3ms)) / DTMF (ITU-T Q23)
Ringing Volume ≥ 95 dB(A) at 1 m distance
Termination Screw terminals ≤1.5 mm2
Environmental
Temperature -25°C to +55°C (Storage: -30°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP-65
