PM2403 24 inch Wide Flush Mount Monitor

Item Number: 2310102098

24 inch Flush Mount Monitor

  • 24" LCD monitor
  • 1920 x 1080
  • LED 250 nits
  • VGA + HDMI + DVI input

The PM2403 24 inch Wide Flush Mount Monitor with OSD front has a modularized mechanical design that provides flexible product configuration and easy maintenance for CCTV. The native resolution is 1920 x 1080 with 16.7M colors.

It features an optional built-in touch screen for interactive application and VGA connector with optional AV,SV, and AV-Looping. The monitor has a black anti-glare low reflective coating with an adjustable LED backlight. Additional convenient features include auto calibration, plug & play (VESA,DDC/CI, DDC 2B), and support for OSD multi-languages.

PM2403 24 inch Wide Flush Mount Monitor

The PM2403 24 inch Wide Flush Mount Monitor has an internal power supply with universal auto-sensing. The power consumption is 61.25 watt when in operation and less than 1 watt when in power saving mode.

The wide flush mount monitor's input terminals are 1x VGA, 1x HDMI, 1x DVI, 1X PC Audio (Stereo Headphone Jack) and 1x DC power plug. The audio system is two 2W speakers. Certifications for the monitor include FCC and CE.

General
Native Resolution 1920 x 1080
Weight 13.5 kg
Power consumption 61.25 W

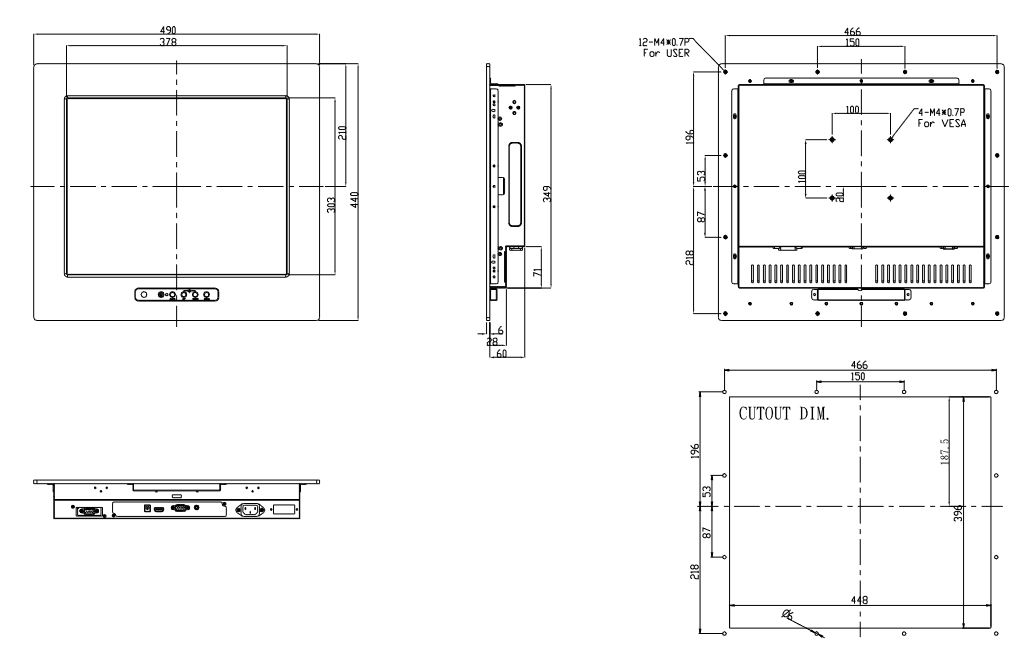

PM1903 Dimensions
