SPA-AC1P-MED

Item Number: 2340110060

General Alarm Button

MED EU Certification icon MED Certification
  • Push Button for activating general alarms
  • Button cover
  • Flush mounting
  • Back Box for wall mounting is available
GENERAL
Dimension (WxHxD) 96 x 96 x 82mm
Weight 0,25 Kg
IP rating IP-54
Operating temperature -25°C to +55°C
Wall mounting Optional. 3005010105 SPA-BOXM1 wall mounting box
Environmental Condition Proteced
VARIANTS
2340110062 SPA-AC1L-MED (Latching push button)

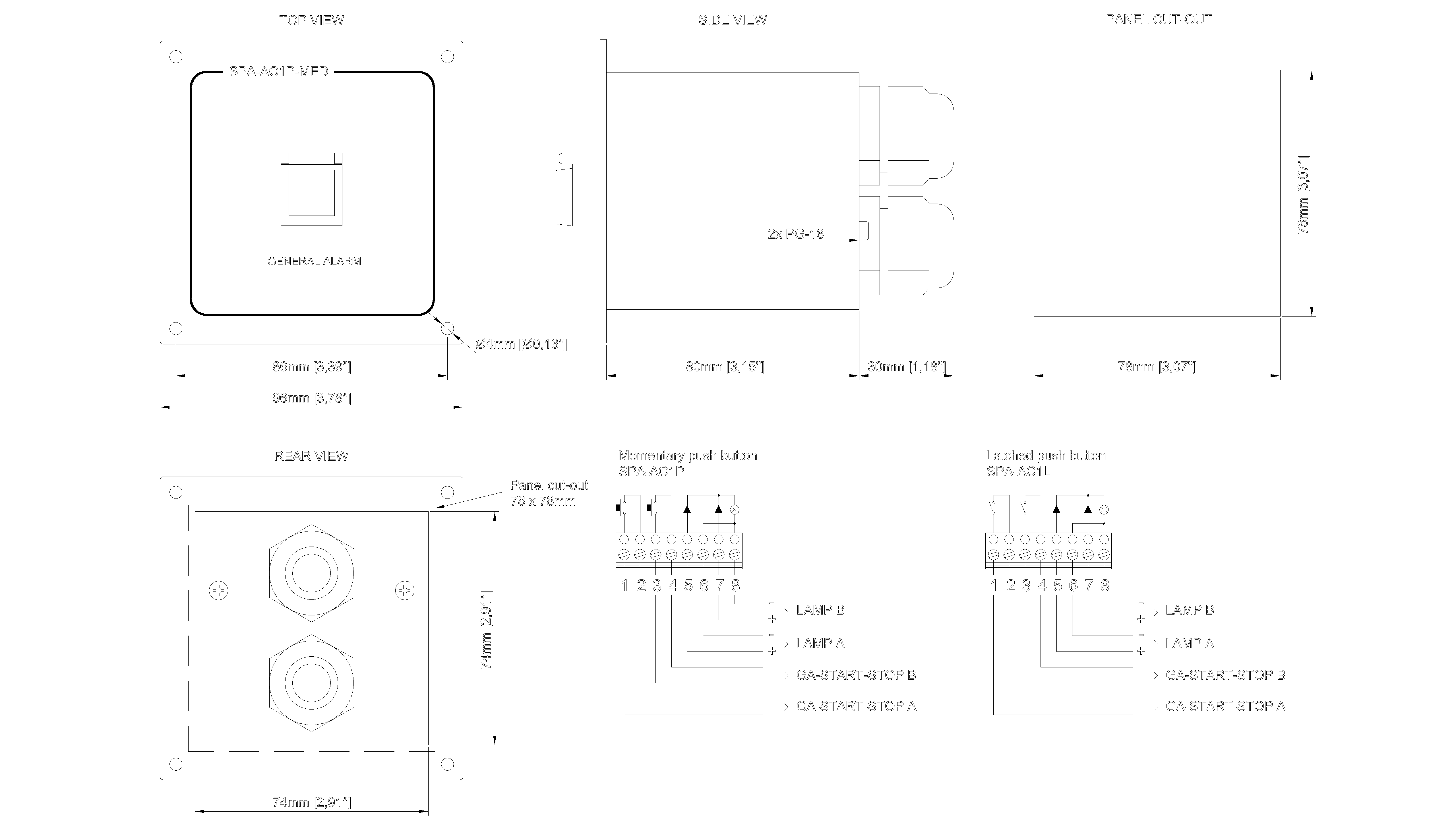

2340110060-SPA-AC1P-MED_Dimensional_Drawing



Date Name Category Size Document
2340110060-SPA-AC1P-MED_Dimensional_Drawing CAD 2D 545.93 KB Login to download
MD-SDoC-2340110062-IHM-8003-67482-205130 Declaration 53.55 KB Login to download
MD-SDoC-2340110060-IHM-8003-67482-205128 Declaration 53.55 KB Login to download
