SPA-AC1PW-MED

Item Number: 2340110061

General Alarm Button

MED EU Certification icon MED Certification
IP67 IP67
  • Push button for activating general alarms
  • Button cover
  • Wall mounting
  • Watertight
GENERAL
Dimension (WxHxD) 110 x 80 x 63mm
Weight 0,530 Kg
Protection IP-67
Operating temperature -25°C to +55°C
Material ABS
Environmental Condition Exposed
GENERAL
Product variants SPA-AC1LW (latched button)

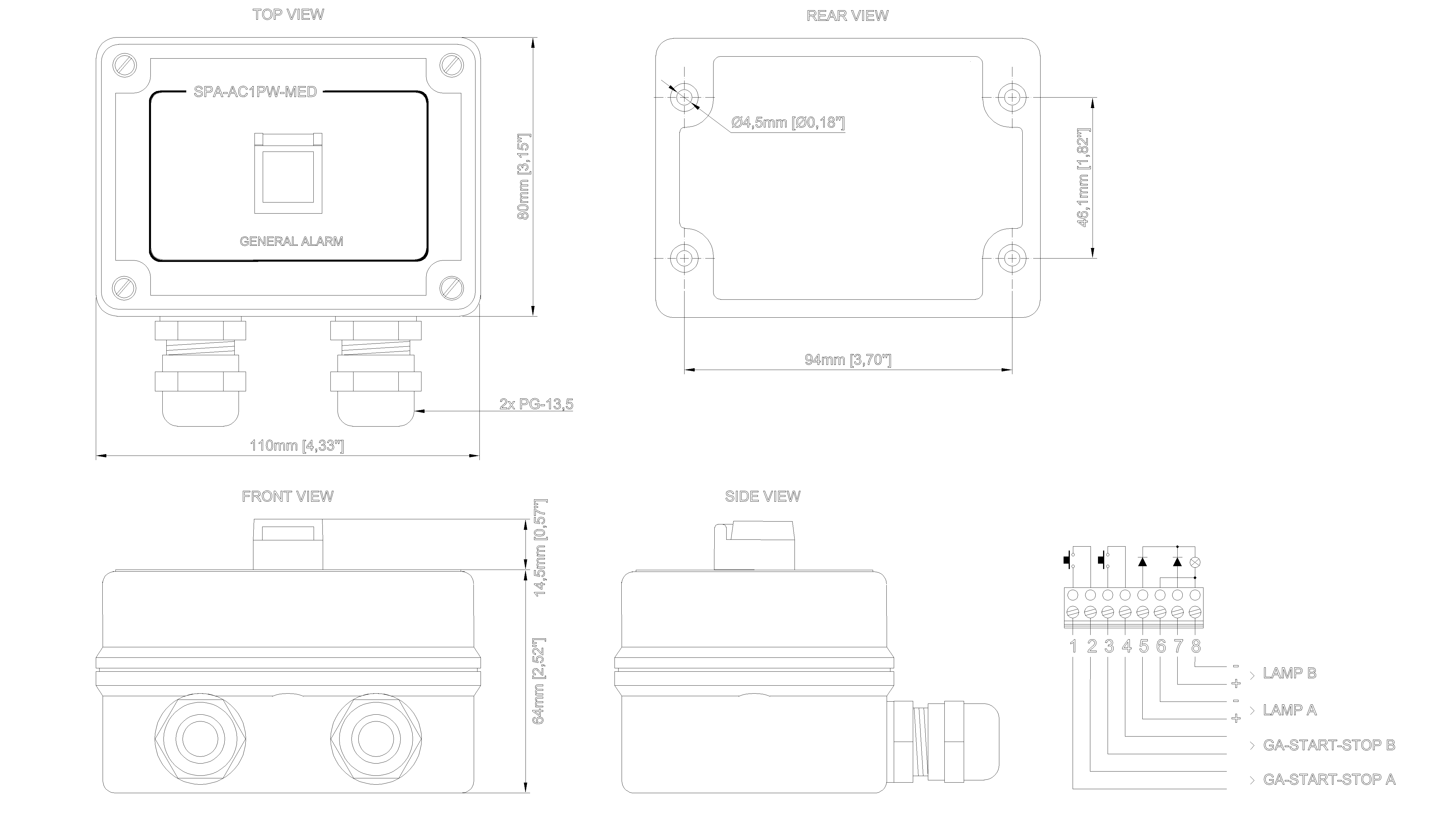

2340110061-SPA-AC1PW-MED_Dimensional_Drawing
Date Name Category Size Document
2340110061-SPA-AC1PW-MED_Dimensional_Drawing CAD 2D 469.81 KB Login to download
MD-SDoC-2340110061-IHM-8003-67482-205129 Declaration 53.55 KB Login to download
