SPA-M1-D-MED

Item Number: 2340110048

View DataSheet

PA Panel Dual, All-Call, Flush, Green Backlight

MED Certification

Onboard communication

PA Panel for dual system , all call
Built-in pre-amplifier with preset signal level and tone controls
TALK button on panel
Flush mounting, back box for wall mounting is available
Local mute contact for external loudspeaker
Buttons backlight with green illumination

This panel gives All Call Message in a SPA-V2 public address and general alarm dual system.

Local mute function is used to break audio to loudspeakers where proximity to pa panel cause feedback. This function must be in combination with relay box.

Note: Microphone must be ordered separately.

General

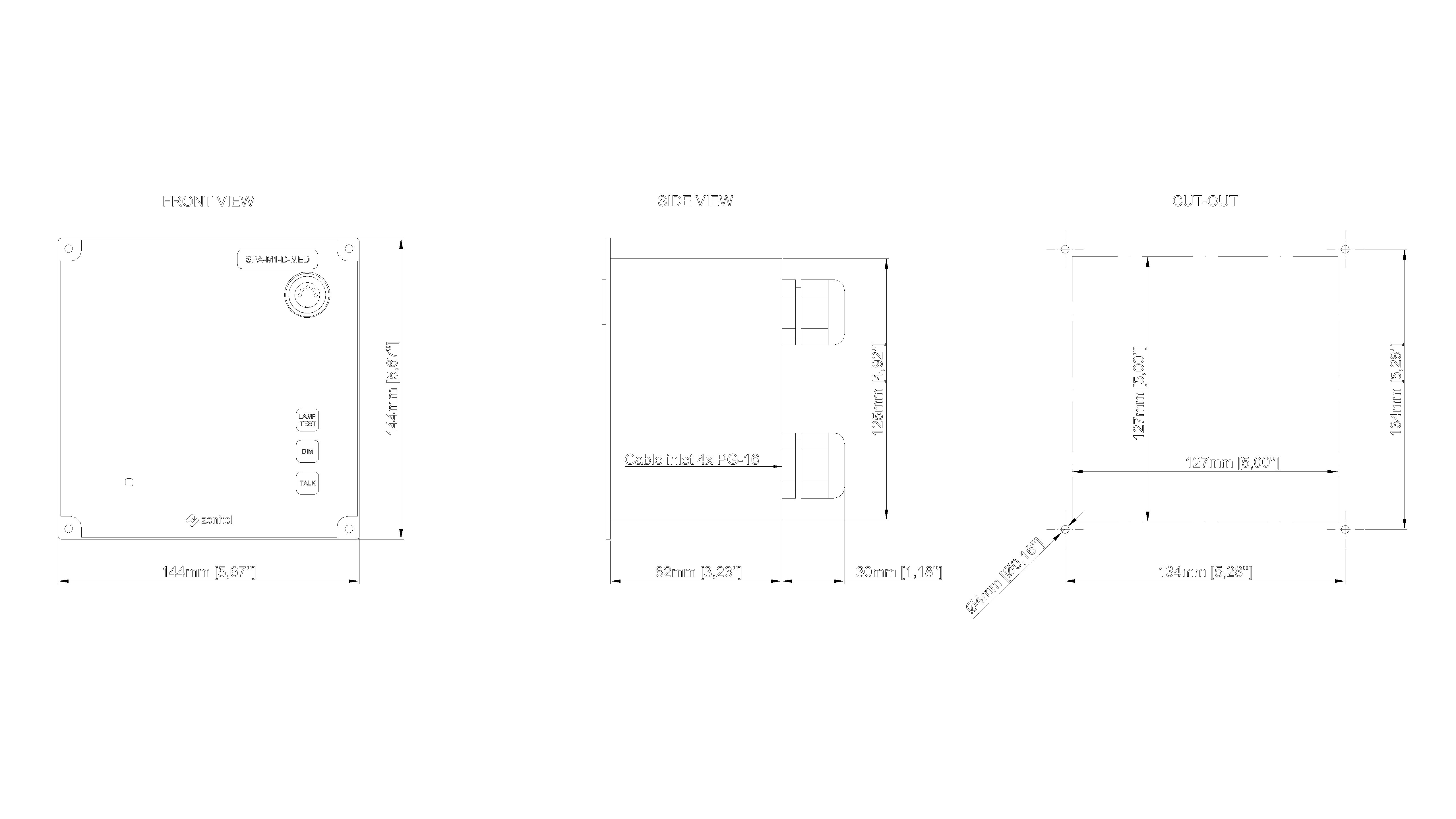

Size (WxHxD)	144 x 144 x 82 mm
Weight w/microphone	0. 5 kg
Material	Black anodized aluminium
Mounting	Flush, wall with use of back box
Output signal	0.775Vrms / 0dB

Connections	Plugable screw terminals for 2.5 mm2 cable
Cable glands	4 x PG-16
Cable size	6 x 2 x 0.75mm2
Local mute relay, output	24V DC @ maximum 50 mA
IP-rating	IP-44
Operating temperature	-15°C to +55°C
EN60945 environmental category	Protected
Compass safe distance	0.75 m
Operator & reading distance	0.7m
