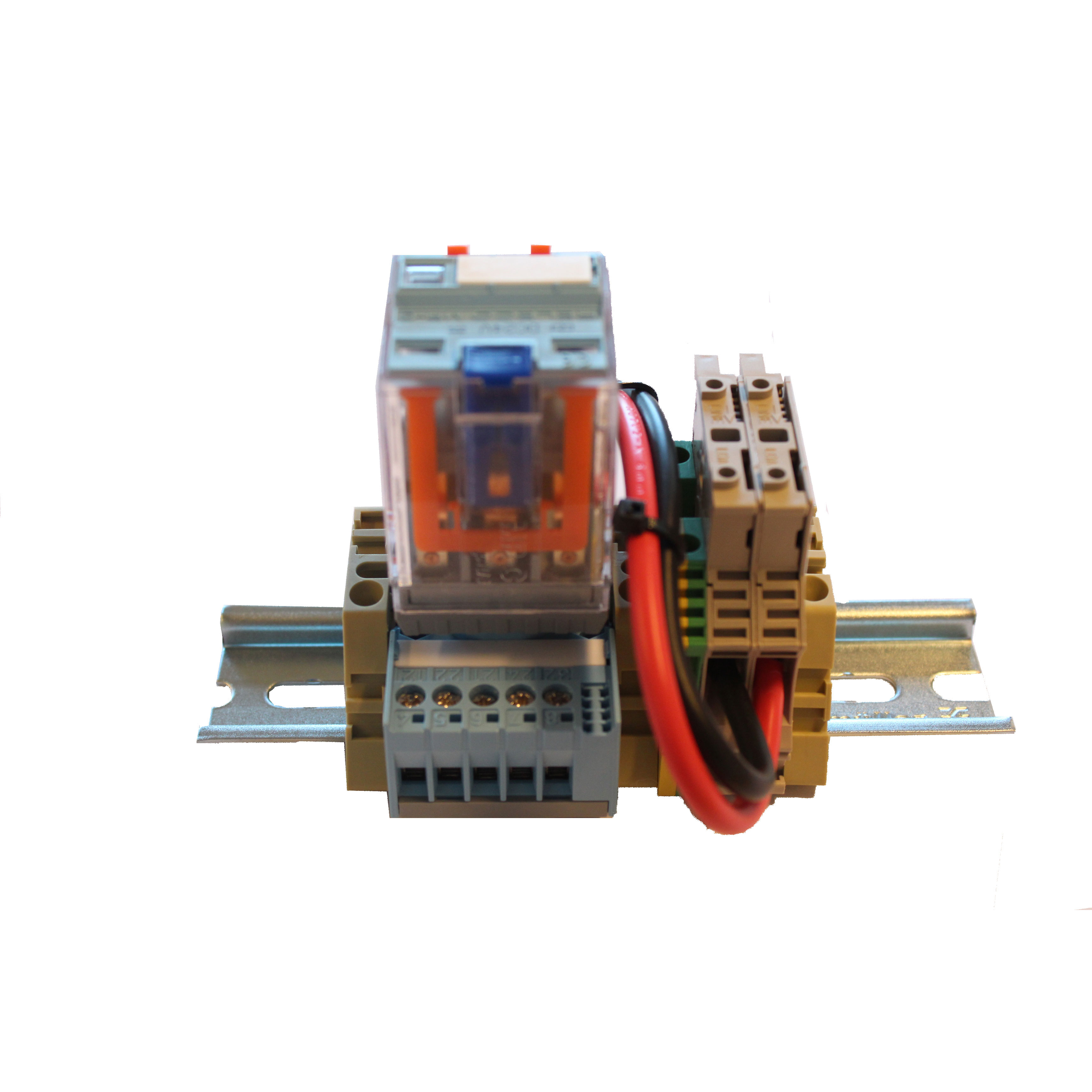

SPA-REL-V4

SPA-REL-V4

Item Number: 2340120010

Multipurpose potential free relay contact with fused outputs - function to be specified

  • Contact set rated at 115-230 VAC or 24 VDC
  • Rail mounting NS-35
  • 2x contact set
  • 24 VDC input coil
  • Fused output
GENERAL
Dimension (WxH) 80 x 70 mm
Mounting Rail mounting NS-35
Housing ABS, PC
Operation voltage (input coil) 24 VDC
Contact rating 115-230 VAC or 24 VDC
Contact set 2 pcs. C/NO
Terminals 2.5 mm2
Fused output Yes. 5A
Weight 0.2 kg
Operating temperature -15°C to +55°C
Environmental condition Protected

SPA-REL-V3

SPA-REL-V3

Multipurpose potential free relay contact with fused outputs - function to be specified

Date Name Category Size Document
23.06.2023 MD-SDoC-2340120010-IHM-8003-41808-82971 Declaration 72.17 KB Login to download

FUSE 5X20MM T5 5AT
