SPA-W1AR-V2

Item Number: 3005010196

Weatherproof PA and Alarm Panel

IP66 IP66
  • Weatherproof PA and Alarm Panel
  • Panel for single system
  • General alarm
  • Built-in pre-amplifier with preset signal level and tone controls.
  • Buttons with hinged transparent protecting cover
  • Requires microphone with push to talk (PTT)
  • Replaceable text label to each button
  • Plug for WP handheld microphone P-66 or P-66/10
  • Wall mounting outdoor / Indoor
  • Local mute contact for external loudspeaker (from hardware version 4.0)

This weatherproof panel is a combined panel for General Alarm and All Call Message. For use in SPA-V2 Public Address and General Alarm Dual System.

Local mute function is used to break audio to loudspeakers where proximity to pa panel cause feedback. Available from hardware version 4.0 This function must be in combination with relay box.

GENERAL

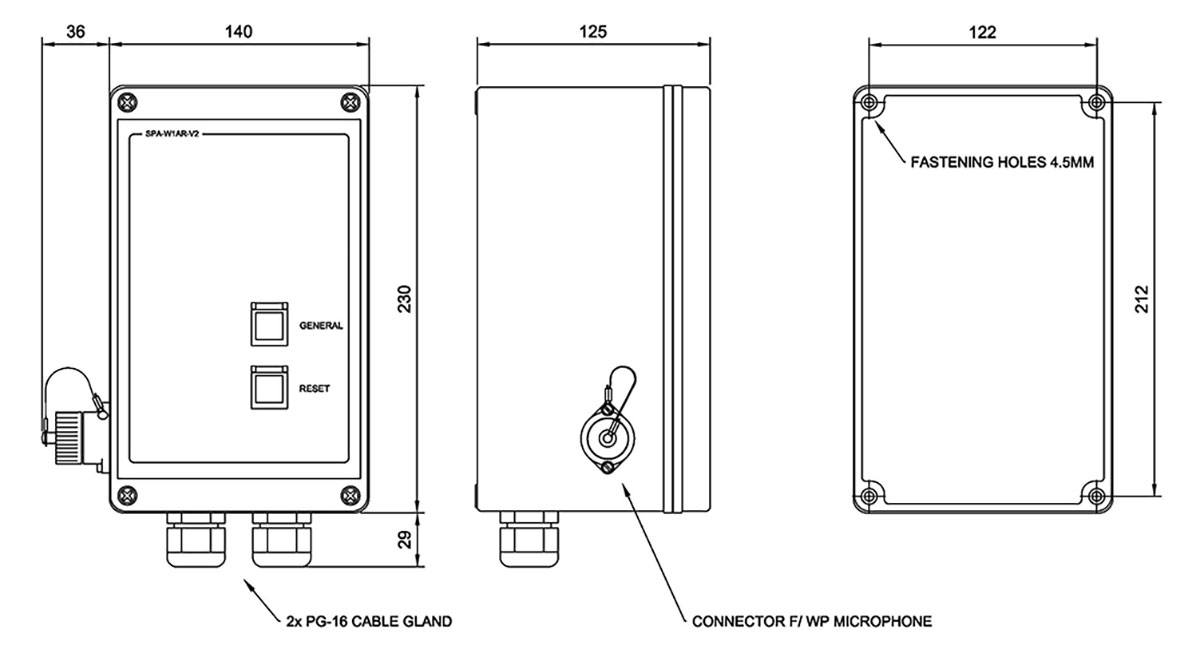

Size (WxHxD) 140 x 230 x 125
Weight 0. 5 kg
Material ABS plastic
Mounting Wall
Output signal 0.775Vrms / 0dB
Sensivity microphone 200 ohm / 0,5mV
Connections Plugable screw terminals for 2.5 mm 2 cable
Cable glands 2 x PG-16
Cable size 6 x 2 x 0.75mm2
Protection IP-66
Operating temperature -25°C TO +55°C
Environmental Condition Exposed

P-66

P-66

Handheld Microphone Waterproof

P-66 Handheld Microphone

P-66/10

Handheld Microphone with 10-Meter Cable Waterproof

Date Name Category Size Document
13.11.2023 SPA-V2 RINA Type Approval Certificate - ELE219123XG Certificate 1.3 MB Download
31.07.2023 MD-SDoC-3005010196-IHM-8003-41808-12461 Declaration 72.17 KB Login to download
9.03.2020 A100K10371 SPA-V2 User Manual Manual 1.61 MB Download
18.09.2019 3005010196 SPA-W1AR-V2 CAD 2D 82.6 KB Login to download
6.05.2016 SPA-W-all Label Station Label 2.21 MB Login to download
