SPA-W6A4-MED_rendering

SPA-W6A4-MED

Item Number: 2340110045

Weatherproof PA and Alarm Panel 6 Zones

MED EU Certification icon MED Certification
IP66 IP66
  • Weatherprooof PA and Alarm panel for single system
  • Abandon, general or manual alarm
  • Contact for WP handheld microphone P-66 or P-66/10
  • Built-in pre-amplifier with preset signal level and tone controls
  • 6 zone selection buttons
  • Alarm buttons with hinged transparent protecting cover for unauthorized use
  • Requires microphone with push to talk (PTT)
  • Plug for WP handheld microphone P-66 or P-66/10
  • Replaceable text label to each button
  • Wall mounting, outdoor or indoor
  • Local mute contact for external loudspeaker (from hardware version 4.0)

This weatherproof panel is a combined alarm and PA panel for use in a SPA-V2 public address and general alarm single system. The PA part can operate six public address zones. Can be used as a PA-panel or Alarm panel or in combination. Sixteen different configuration of alarm sounds available.

Local mute function is used to break audio to loudspeakers where proximity to pa panel cause feedback. Available from hardware version 4.0. This function must be in combination with relay box.

General

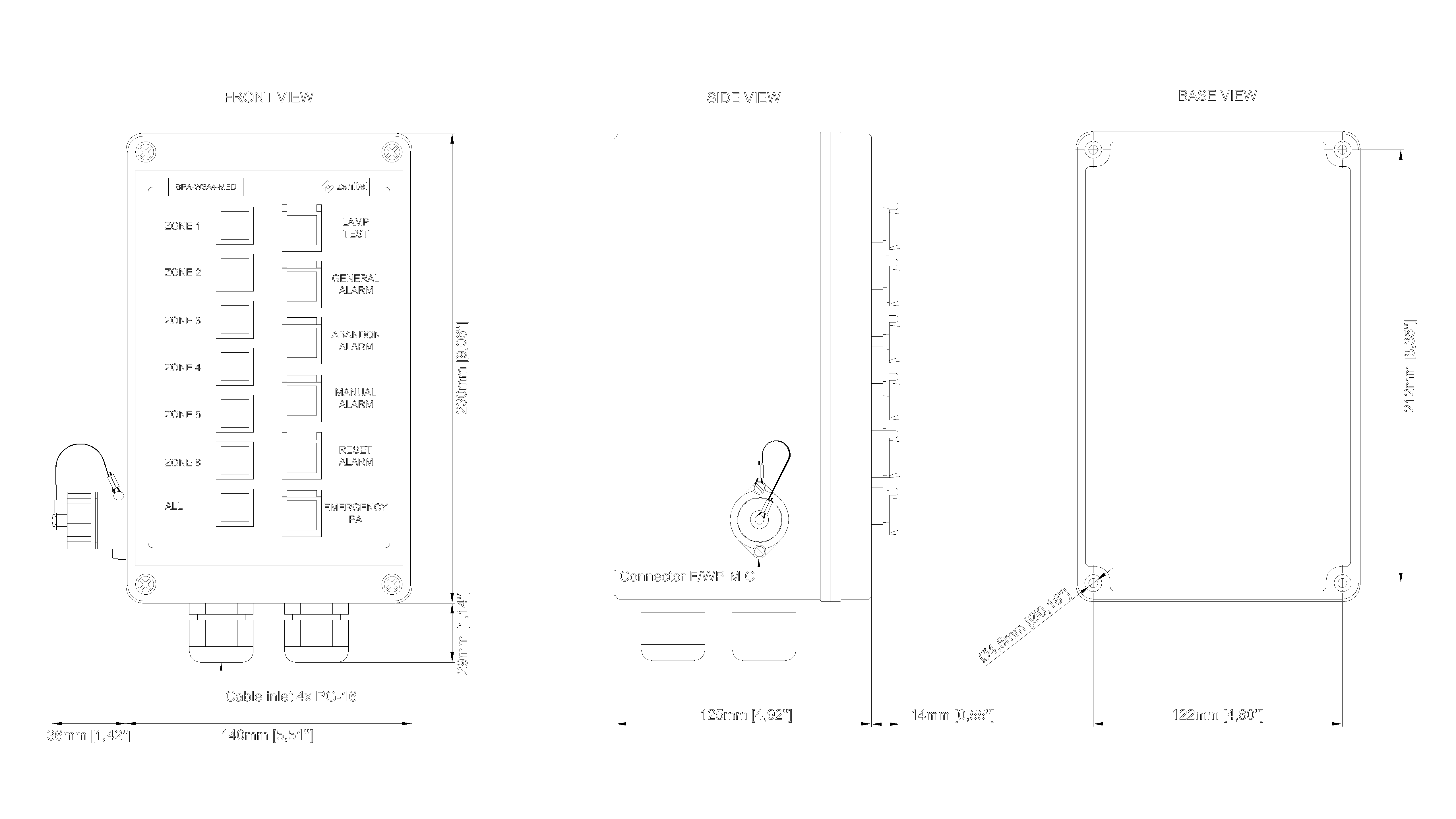

Size (WxHxD) 140 x 230 x 125
Weight 0. 7 kg
Material ABS plastic
Mounting Wall
Output signal 0.775Vrms / 0dB
Sensivity microphone 200 ohm / 0,5mV
Connections Plugable screw terminals for 2.5 mm2 cable
Cable glands 4x PG-16
Cable size 6 x 2 x 0.75mm2
Protection IP-66
Operating temperature -25°C TO +55°C
EN60945 environmental category Exposed
Compass safe distance 0.75 m

P-66

P-66

Handheld Microphone Waterproof

P-66 Handheld Microphone

P-66/10

Handheld Microphone with 10-Meter Cable Waterproof
