SPA Wireless Mic v2
SPA Wireless Mic v2
SPA Wireless Mic v2 - Microphone
SPA Wireless Mic v2 - Receiver

SPA-WIRELESS-MICv2

Item Number: 2340120035

ACT-311B 1-channel receiver with 1x ACT-32H wireless hand mic

  • 1x handheld microphone
  • 2x antennas
  • Industry’s first “PiloTone & NoiseLock” circuits
  • MIPRO Auto Scan and ACT™ function
  • External 100-240 VAC switching power supply
  • Rack mounting kit, optional
  • Includes MI-2 pre-amplifier. Requires 24VDC

SPA-Wireless Microphone System v2 consists of two components, the receiver and the microphone.

SPA-WIRELESS-MICv2

Introducing the new ACT-311 UHF Analog Single-Channel Receiver. Designed with precision and innovation, this receiver offers a seamless audio experience.

Its sleek EIA standard metal chassis features a vibrant backlit LCD screen, easily distinguishing between "Working" and "Standby" modes. Say goodbye to interference, thanks to the narrowband high dynamic range receiving circuit, and the industry's first "PiloTone & NoiseLock" circuits. The RF interference warning indicator ensures crystal-clear sound.

MIPRO Auto Scan and ACT™ function synchronize the transmitter's frequency swiftly. With 80 pre-saved frequencies and 961 options, flexibility is at your fingertips. Enjoy separate audio outputs, switchable gains, and distortion-free operation.

Included in this package is the ACT-32H UHF Analog Handheld Wireless Microphone, aesthetically design and excellent performance. Its sleek plastic housing offers comfort and style. The detachable metal grille ensures sound clarity and easy maintenance. An LCD displays essential information, powered by two AA batteries. Pair it with MIPRO's high dynamic range capsule modules for distortion-free, vibrant vocals. Discover excellence in every note.

Also included is our preamplifier MI-2 for correct level adjusting to connection of system.

Specifications ACT-311 UHF Analog Single-Channel Receiver
General
Channel Single
Chassis EIA standard half-rack (9.5") metal chassis
Frequency Range UHF 480 – 934 MHz (country dependent)
Bandwidth 24 MHz
Receiving Mode Diversity receiving
Sensitivity 10 dBμV @ S/N > 80 dB
Frequency Response 50 Hz – 18 kHz
Dynamic Range > 106 dBA
Audio Output Balanced: +16 dB / 0 dB / -6 dB, Unbalanced: +10 dB / 0 dB / -6 dB
Antenna 50Ω TNC female connector provides bias for the MIPRO antenna systems
Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply
Dimensions 210 × 44 × 165 mm (W × H × D)
Weight Approx. 0.8 kg
Environmental condition Protected
Specifications ACT-32H UHF Analog Handheld Wireless Microphone
General
Frequency Range UHF 480 – 934 MHz (country dependent)
Bandwidth 24 MHz
Display Backlit LCD
Mic. Capsule Modules Interchangeable condenser or dynamic capsule module
RF Power Output 30 mW (country dependent)
Spurious Emission < 4 nW
AF Sensitivity Preset at 0 dB (equal to capsule sensitivity)
Battery Two AA alkaline
Dimensions 51 × 234 mm (Ø × L)
Weight Approx. 250 g

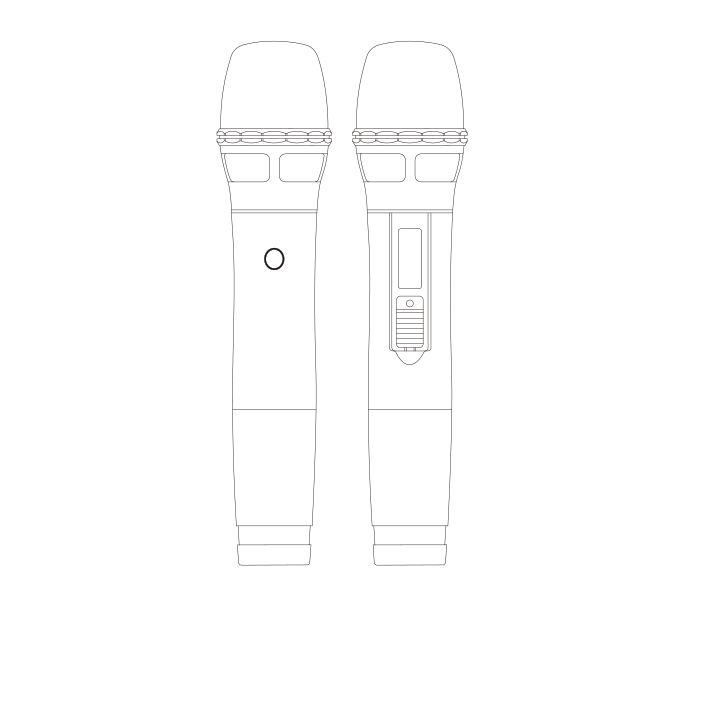

2340120035_Dimensional drawing receiver2340120035_Dimensional drawing microphone

SPA-ANT

Dual external antenna AT-70W set for SPA-WIRELESS

Date Name Category Size Document
15.09.2023 User Manual ACT 311B Receiver Manual 4.65 MB Download
15.09.2023 User Manual ACT 32H Microphone Manual 2.65 MB Download
15.09.2023 DOC ACT 311B Receiver Declaration 383.53 KB Download
15.09.2023 DOC ACT 32H Microphone Declaration 397.1 KB Download
15.09.2023 SPA Wireless v2 - connection diagram Manual 131.07 KB Login to download
