Splitter 2 Way 380-2700 MHz Image

Splitter, 2-Way, 380-2700 MHz, APS-02-WBS-LP-NF-CC

Item Number: 2640500025

Power Splitter

  • Amphenol Power Splitters covers the bands of 380 - 2700 MHz
  • PIM value of -153dBc
  • Average max power of 300 W
  • IP 65 rating
  • N-Female Connector configurations

The Splitter, 2-Way, 380-2700 MHz, APS-02-WBS-LP-NF-CC covers the bands of 380 - 2700 MHz with a PIM value of -153dBc. It has an average max power of 300 W.   The splitter is mechanically sound and robust which will allows it to be utilized indoors and outdoors with a IP65 rating. It has connector configurations of N-Female.

Electrical
Frequency 380 - 2700 MHz
Max. Power Input 300 W
Insertion Loss 0.22 dB
Impedance 50 Ω
Peak Input Power 1.5 kW
Passive Intermodulation < -153 dBc (2 x 43 dBm)
Split Loss 3 dB
No. of Channels 2
Application Indoor/Outdoor
VSWR < 1.25:1
Mechanical
Connection(s) N(f)
Color Black
Weight 0.48kg
RoHS Compliant Yes
Mounting 3.2 mm dia. (four holes)
Environmental
Operating Temperature Range -35°C to +70°C
Humidity < 95%
Ingress Protection IP65

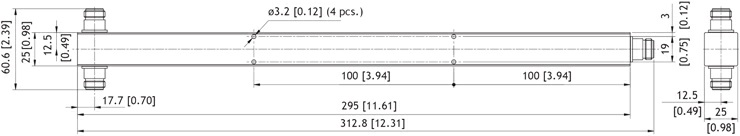

Dimensional Drawing Splitter 2 way 380-2700 MHz
