SPS-4

SPS-4

Item Number: 3005020055

Power Supply

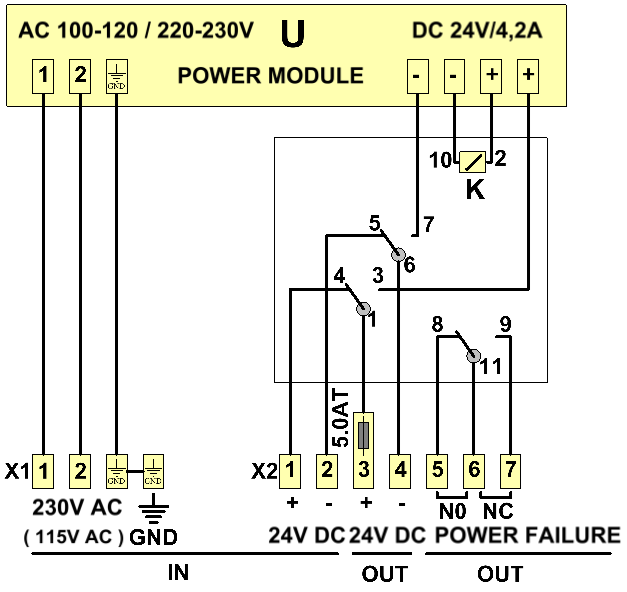

  • Power supply 115 / 230V AC to 24V DC with autoswitch relay for Main / UPS supply and power failure contact no/nc
  • Compact steel housing for wall mounting
  • Screw terminals for ship's cable
  • Unmatched efficiency up to 95%
  • Active filtering of input transients
  • Large output capacitors
  • DC-OK relay contact
General
Dimensions (WxHxD) 200 x 250 x 150 mm
Colour Grey RAL 7032
Weight 4.1 kg
Input voltage 1 110 - 230 VAC
Input voltage 2 24 VDC Emergency
Output voltage 24 V - 28 VDC
Output current cont. 4.2 A
Output power cont. 110 W
Rippel & Noise volt. 50 mVpp
Relay For automatic switching Main / UPS
Power failure Normal open / normal closed contacts
Operating temp. -25 to +60 °C
IP-rating IP-44

SPS-4







Date Name Category Size Document
31.07.2023 MD-SDoC-3005020055-IHM-8003-41808-7867 Declaration 72.19 KB Login to download
12.10.2020 ML100_Datasheet.pdf 206.85 KB Download
12.10.2020 ML100_UL_E198865.pdf 888.09 KB Download
12.10.2020 ML100_RoHS.pdf 89.76 KB Download
18.09.2019 3005020055 SPS-4 CAD 2D 50.44 KB Login to download
