TCAS-1

Item Number: 1008114010

Analog Intercom

Door Intercom
Turbine
IP66 IP66
  • Audio Presence - crystal clear audio
  • Analog MEMS microphone
  • Unique 3D speaker grille design
  • Scandinavian functional design
  • Dirt, dust and water resistant - rating IP-66
  • Built to last with robust die cast aluminium frame - rating IK 08
  • Yellow thermoplastic front plate with one button plus M and C
  • Ideal for Industrial applications


All analog stations in the  Turbine series offer stunning audio quality. AlphaCom’s advanced switching technology, loud volume, wide frequency range and our unique 3D speaker grille design are some of the factors contributing to this. We also put great pride into selecting the very best components like the new analog MEMS microphone for the stations.

The Turbine comprises a wide range of stations for many different purposes, with some features in common. They are all designed for the most demanding environments where communication is critical. All electronics are covered by a 3 mm thick, die cast aluminum frame. This frame is even further reinforced by a faceplate in either stainless steel or Plexiglas. All stations are dust proof and water resistant, both when flush and surface mounted – with ingress protection rating IP-66. All stations are vandal resistant with poke protection and impact resistance ratings between IK 08 and IK 10.

The station can be placed up to 4 km from the AlphaCom server/exchange without the need for any local power source. The station uses the conventional 4-wire interface, receiving both power and audio in the same cable. To provide maximum availability the station comes with advanced supervision functions. The station line test will detect whether any faults are in the network or station electronics. In addition the station supports tone test, i.e.
testing the complete transmission path including microphone and speaker. The status of the stations is reported to AlphaWeb as well as to 3rd party management systems using SNMP, Syslog or Microsoft OPC .

Turbine follows in the grand tradition of Scandinavian design appreciated by designers the world over. The station’s strong identity lies in the speaker grille. It is not only designed for aesthetic reasons, but also for audio quality and protection – with form following function. And there can be little doubt as to its function: loudspeaking hands-free communication.

See also: additional documentation on wiki.zenitel.com

AUDIO
SPL rated power at 1m 85 dB
Microphone technology Analog MEMS, omni directional microphone
Frequency range 200 - 10000 Hz
HARDWARE
Connectors Tool less, spring loaded, vibration proof terminals
Power Powered from exchange
Power consumption 1W (depending on volume)
Call indication LED integrated in large button
CONSTRUCTION

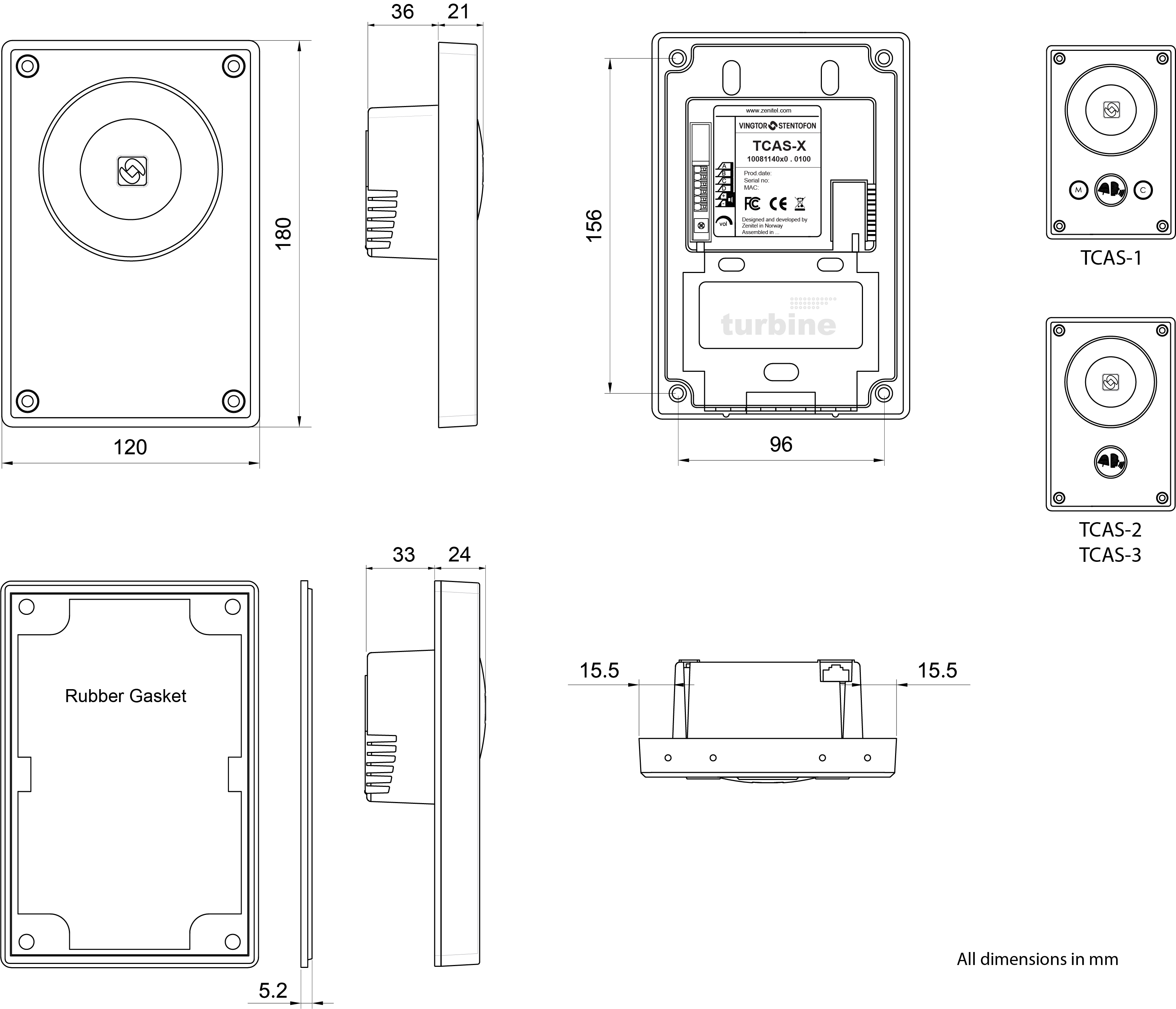

Dimensions (HxWxD) 180 x 120 x 57 mm / 7.1” x 4.7” x 2.2”
Dimensions after flush mount 180 x 120 x 24 mm / 7.1” x 4.7” x 0.9”
Dimensions with on wall box 180 x 120 x 86 mm / 7.1” x 4.7” x 3.4”
Weight 0.8 kg / 1.8 lbs
Faceplate material 3 mm / 0.12” PMMA, colour printed on back side
Base/frame material 3 mm / 0.12” aluminum alloy - A413.0, AlSi12Fe, painted
Electronics cover material Polycarbonate (translucent)
Gasket material Silicone rubber
Fastening bracket material SECC steel
Button material 3 mm / 0.12” Polycarbonate (transparent)
Button travel length 1.25 mm
Button activation force 350 gf
Button push-cycles before failure 300 000
Loudspeaker poke protection, large diameter object 3D cast aluminum speaker grille
Loudspeaker poke protection, small diameter objects Stainless steel mesh, acoustically transparent
ENVIRONMENT AND COMPLIANCES
IP rating IP-66, tested according to EN 60529 (applies when mounted in TA-1 back box)
IK rating IK 08, tested according to EN 62262
OTHER SPECIFICATIONS
Supervision Line supervision, Tone test (manual and automatic), Station status in AlphaWeb
Country of manufacture Poland

Turbine Compact Onwall Box

TA-1

Turbine Compact Onwall Back Box

TA-3

2½" Deep Flushmount Backbox for Turbine Compact & & Mini

TA-5, Bracket for US 2 GANG Back Box

TA-5

Bracket for US 2 GANG Double Depth Back Box

Ta-14

TA-14

Microphone windshield for TCIS / TCIV

TA-18

Turbine Compact Flush-Mount Back Box

Date Name Category Size Document
24.08.2022 ACM Polski Rejestr Statkow No TE-2040-880575-14 Certificate 112.09 KB Download
27.12.2021 ACM Type Approval Certificate - DNV TAA00000ZN-revision7.pdf Certificate 470.64 KB Download
7.07.2021 A100K11258 TCAS Turbine Compact Analog Mounting Manual Manual 618.02 KB Download
18.09.2019 10081140XX TCAS-X CAD 2D 234.46 KB Login to download
24.07.2019 Declaration of Conformity 1008114010 TCAS-1 Declaration 137.58 KB Download
