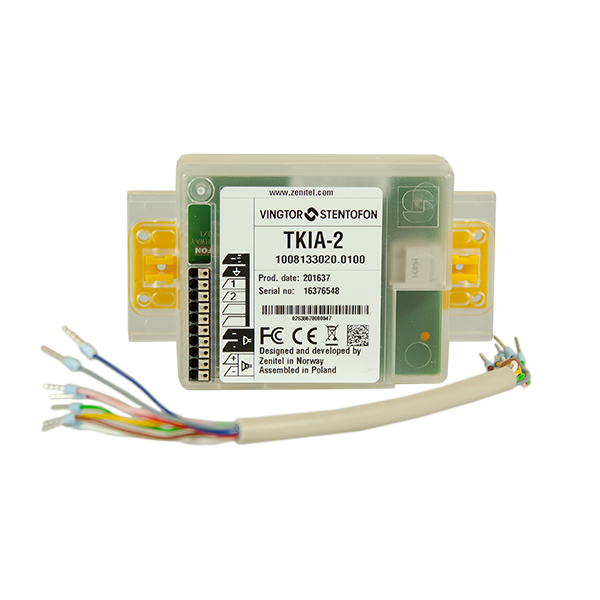

TKIA-2

Item Number: 1008133020

Analog over IP Gateway

  • Extends the analog interface on TKIS-2 up to 60 meters.
  • Keeps your IP network port in protected area.
  • Uses a standard CAT5 or CAT6 Ethernet cable to connect to TCIA-2 Analog over IP intercom.
  • Combines the network security of an analog intercom with the audio features of an IP intercom.
  • Includes cable for connection to TKIS-2
  • Used together with TKIS-2 and TCIA-2



HARDWARE
Connection to TCIA-2 1 x RJ45
Connection to TKIS-2 Tool-less, spring-loaded, vibration-proof terminals.
OTHER SPECIFICATIONS
Dimensions (HxWxD) 71 x 86 x 32 mm
Weight 0.1 kg / 0.2 lbs
Encapsulation material ASA plastic
DIN-rail clips Wago 209 (included
Warranty 2 Years standard warranty, extendible up to total of 5 years (additional fee)
ENVIRONMENT AND COMPLIANCES
Operating temperature range -40° to 70° C / -40° to 158 ° F
Storage temperature range -40° to 70° C / -40° to 158 ° F
Relative humidity < 95% not condensing
EMC CE and FCC Part 15

Date Name Category Size Document
22.12.2022 E317047-20211029 UL Certificate of Compliance no. UL-CA-2141911-0 Certificate 181.43 KB Download
22.12.2022 IECEE CB Test Certificate DK-104921-UL TCIx/TCIVx Certificate 199.57 KB Download
1.11.2022 RoHS Declaration 2021 Declaration 3.24 MB Download
16.09.2022 CE Declaration TKIA-2 Declaration 146.14 KB Download
12.11.2020 A100K11722 TKIA-2 / TCIA-2 Installation Guide Manual 293.97 KB Download
