T91-2000_UPS_FRONT
T91-2000_UPS_FRONT
T91_BP72A_Batterypack_FRONT

UPS-XPC-2500-120T

Item Number: 2970000063

Tower Online UPS 2500W/30 min, 120V

T91 UPS provides double conversion online power for light industrial applications, point of sale, servers and voice & data networks. T91 features unity output power factor to support up to 43% more critical loads than typical UPSs.

  • UL, cUL, CE, RoHS, FCC B, FCC A
  • T91 provides industry highest real power rating
  • Extended battery packs for runtimes up to 4 hours
  • Fast Recharge: up to 95% in just 3 hours
  • Multiple communications capability
  • Load shedding capabilities
  • Emergency power off

Item 2970000126, consists of:

  • 1x T91-3000 (the UPS)
  • 2x T91-BP72A (Battery pack)
General
Input Power rating 3000VA (2880W)
Input Voltage 55-150VAC
Input Frequency 50/60Hz auto-sensing
Output Voltage 120VAC nominal (100/110/115/127 selectable)
Frequency 50/60Hz auto-sensing ≤ 1%
Efficiency Up to 98% ECO Mode and 92% online mode
UPS, Dimensions 7.4" x 16.5" x 12.5" (W x D x H)
UPS, Weight 66 Ibs
Battery type (included) Up to 30 minutes
Battery Dimensions 7.4" x 16.5" x 12.5" (W x D x H)
Battery, Weight 82 lbs (each)
General

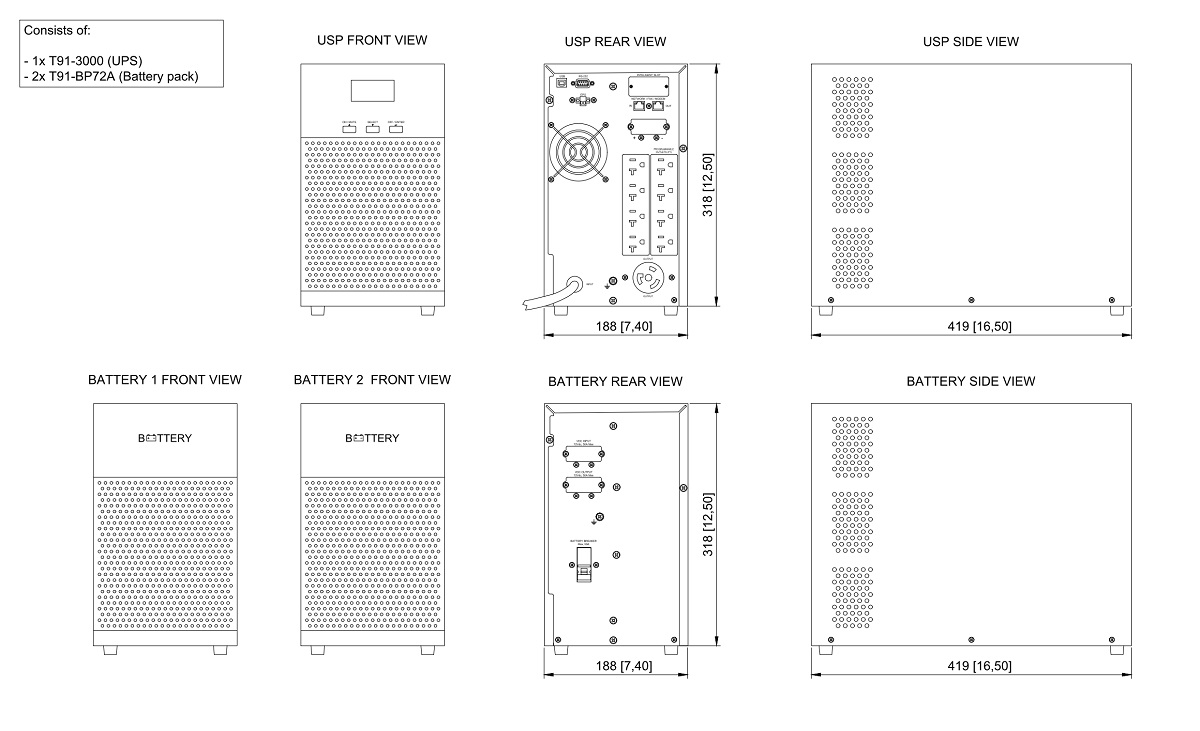

2970000126-001 - T91-3000-BP72A_DimDraw

Date Name Category Size Document
12.10.2023 2970000063 - UPS-XPC-2500-120T - Dimensional Drawing CAD 2D 339.82 KB Login to download
10.10.2023 MD-SDoC - 2970000063-IHM-8003-49958-159551 Declaration 71.88 KB Login to download
5.10.2020 T91_Users_Manual.pdf 1.64 MB Download
5.10.2020 T91_Datasheet.pdf 1.63 MB Download
