P91-1500 + Battery

UPS-XPC-600-120R

Item Number: 1000362

Rack mount online UPS, 600W/30 min, 120V, incl. rails

  • 120VAC nominal output voltage
  • True double conversion online UPS
  • Input voltage range: 55-150VAC
  • Hot-swappable battery design
  • 4HU
  • Minimum cabinet depth: 600mm
  • Including mounting rails

The UPS-XPC-600-120R is a robust, rack-mountable uninterruptible power supply system designed for mission-critical communication applications that require reliable power protection and extended runtime capabilities. At its core, it features a true double conversion online UPS rated at 3000VA/2880W, delivering clean, stable 120VAC power with pure sine wave output and exceptional efficiency ratings up to 98% in ECO mode.

The system incorporates advanced features like programmable outlets, comprehensive LCD monitoring, and multiple communication interfaces including RS-232, USB, and SNMP connectivity, making it ideal for protecting critical communication infrastructure.

What sets this UPS apart is its enhanced backup capabilities, achieved through the integration of the P91-BP36 battery pack, providing a substantial 30-minute runtime at rated load - essential for maintaining uninterrupted communication during power outages. The hot-swappable battery design ensures easy maintenance without powering down connected communication equipment, while the advanced battery management system with adjustable charging current optimizes battery life and performance.

This makes it an ideal power protection solution for our critical communication systems, ensuring continuous operation of intercoms, public address systems, and other emergency equipment.

Item UPS-XPC-1300-120R consists of the following items:

  • 1x P91-1500
  • 1x P91-BP36
  • 1x Mounting rails
GENERAL
Power rating 1500VA (1450W)
Input Voltage Nominal/Frequency 55–150VAC* / 50/60Hz auto-sensing
Output Voltage 120VAC nominal (100/110/115/127 selectable)
Efficiency Up to 98% ECO mode or 94% online mode
UPS, Dimensions (W x D x H) 43.7 x 38.4 x 8.9 cm / 17.2 x 15.1 x 3.5 in
UPS, Weight 15.5kg / 44.7 lbs
Battery Type (included) Up to 30 minutes
Battery chemistry Sealed, maintenance-free lead acid
Battery, Dimensions (W x D x H) 43.7 x 48.0 x 8.9 cm / 17.2 x 18.9 x 3.5 in
Battery, Weight 33,8kg / 74.6 lbs

1000362 - UPS-XPC-600-120R

Date Name Category Size Document

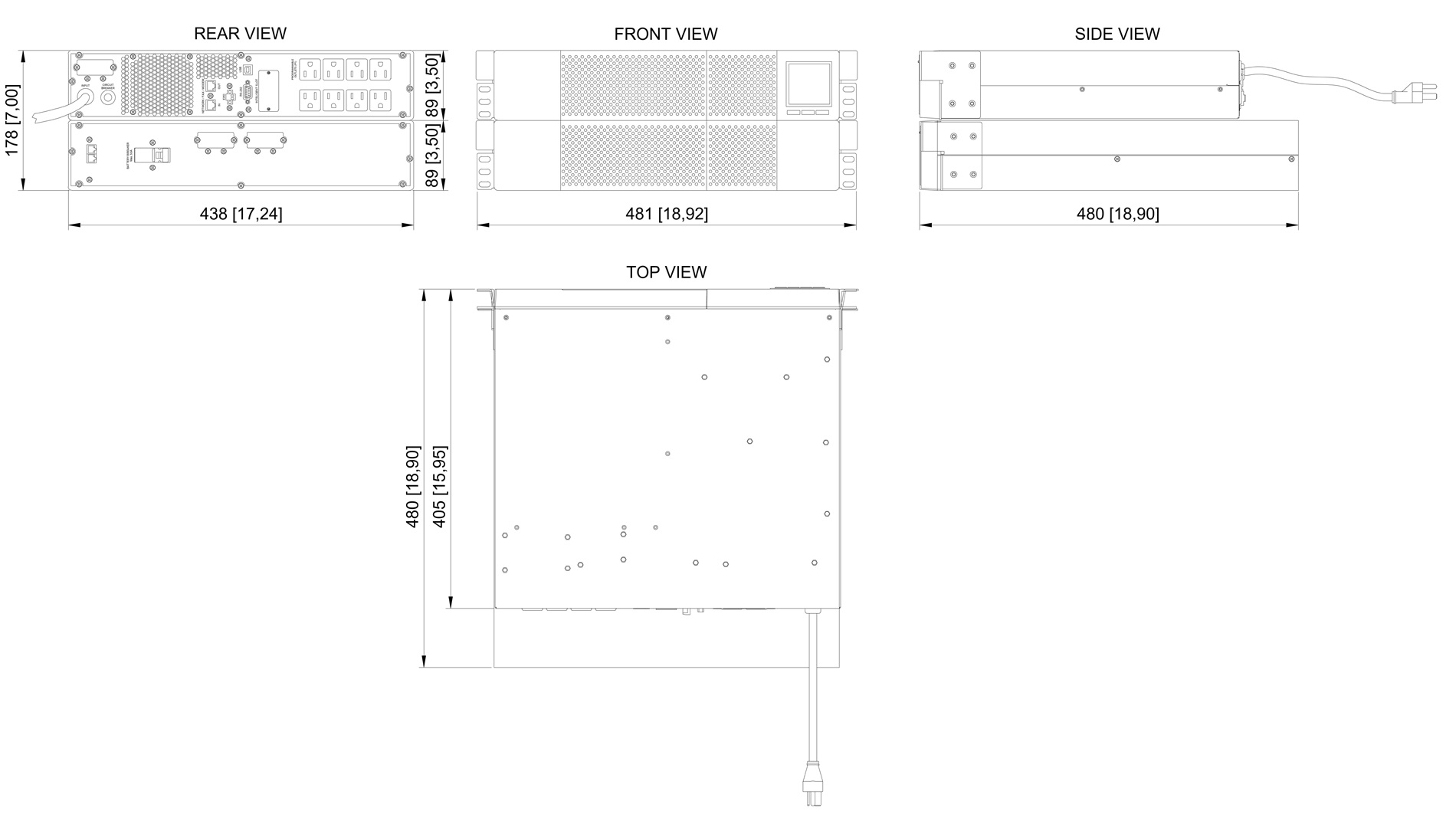

1000362 - UPS-XPC-600-120R - Dimensional Drawing CAD 2D 1013.17 KB Login to download
