VES-561TF

VES-561T-MED

Item Number: 2131000154

Ceiling speaker w/fire dome, 100V, IP32, 6W

  • Metal ceiling speaker
  • Steel firedome
  • Ceramic terminal block
  • Thermal fuse
  • Dual M20 top or side cable entry options
  • MED approved
MED EU Certification icon MED Certification
5" 6W BS5839 Part8 VA compliant bayonet fast fit metal ceiling speaker complete with steel firedome, ceramic terminal block and thermal fuse. Dual M20 top or side cable entry options, 7 step ratchet secure fitting, fold away terminal block, and a 3 legged cam variable ceiling thickness mounting make this the most popular selling low cost VA/PA speaker in the range.


Installation, Operation and Maintenance Procedure

  • Install the steel box into the cut-out hole turning the screws connected to the three hooks, screw clockwise until the ring is fixed to the ceiling.
  • Lead cable through cable gland and connect to terminal.
  • Turn the grill gently clockwise within the ring until it stops.
  • For optimum performance, always use the correct voltage / power and operate within the frequency limits as stated.
  • If 70V, replace red cable with the green cable in the terminal.
  • Do not open loudspeaker when energized.
General

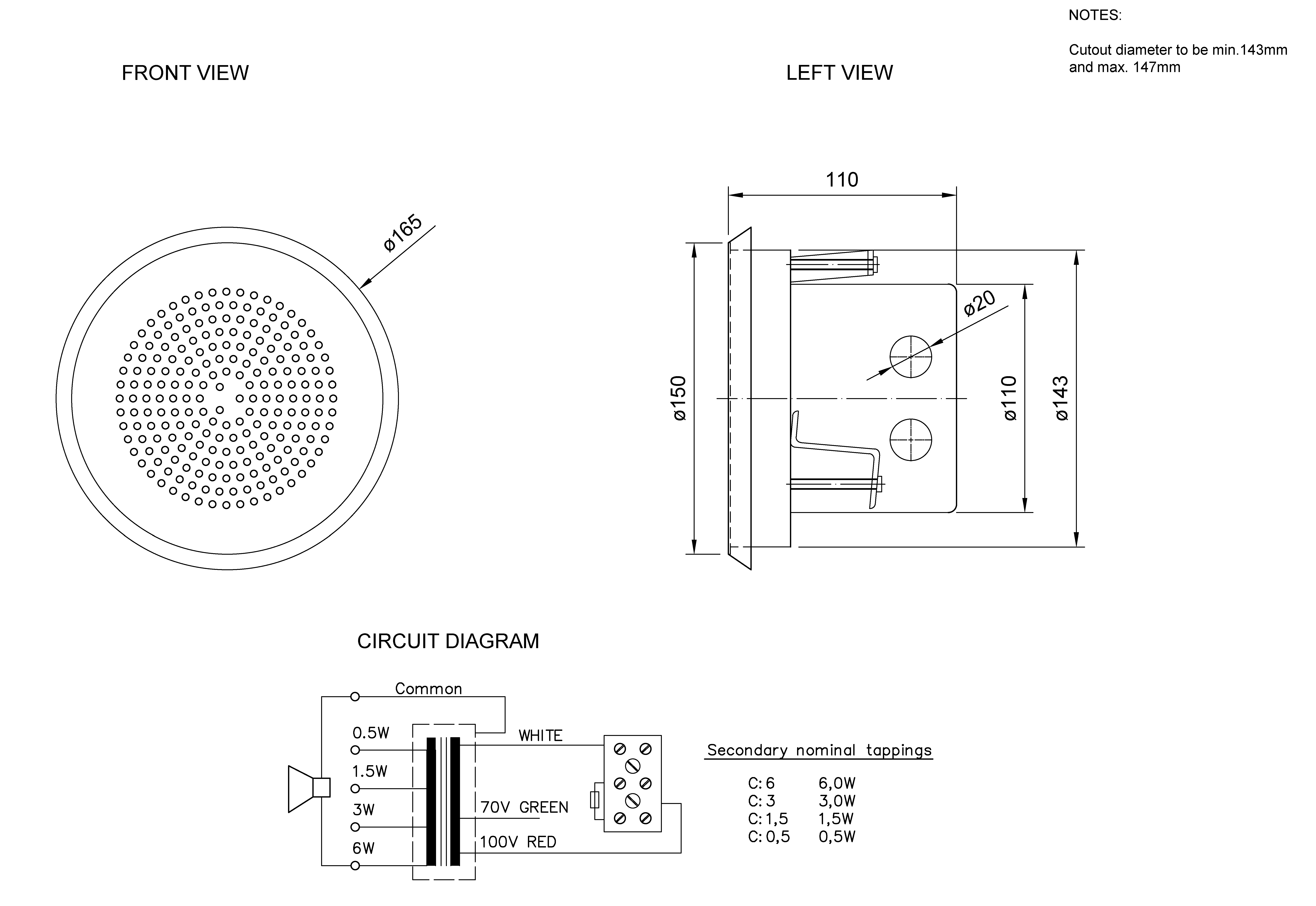

Dimensions Ø165 x D112
Material / Color Steel / White
Mounting 3 screws
Termination Ceramic terminals
Weight 1,1 kg
Max. / min. amb. temp 90°C / -20°C
Transformer For 100V line
Rated / max. power 6 W / 8 W
SPL 1W/1m 90 dB
SPL rated power 97 dB
Effective freq. range 100 – 13000 Hz
Dispersion (-6dB) 1kHz / 4kHz 160° / 60°
Power tapping 0,5W - 1,5W - 3,0W - 6,0W
Cable inlet 1 2x M20 knock outs for cable gland
Cable inlet 2 2x M12 knock outs for cable gland
Fuse Term. fuse 130°C
IP rating 32C
Environmental Condition Protected

VES-561TF

Date Name Category Size Document
18.09.2019 2131000205_VES-561TF.zip CAD 2D 220.56 KB Login to download
