VMP-204

VMP-204

Item Number: 3006202023

Power Amplifier 230V AC / 12W

  • Slave amplifier for VMP stations
  • When extra loudspeakers is required in noisy areas
  • Output, low impedance 8-20 ohm
  • To be mounted close to the station

Important note!
For environments where high-pressure washing is likely, or in cases of open deck usage, we strongly recommend adding a waterproof cabinet. The following models are suitable for these conditions:

General
Dimensions (WxHxD) 120 x 220 x 91 mm
Mounting 4 x 5mm screws
Weight 0.35 kg
Housing Bayblend plastic
Colour Grey
IP-rating IP-65
Cable entry 1 x Gland PG-11 2x PG-9

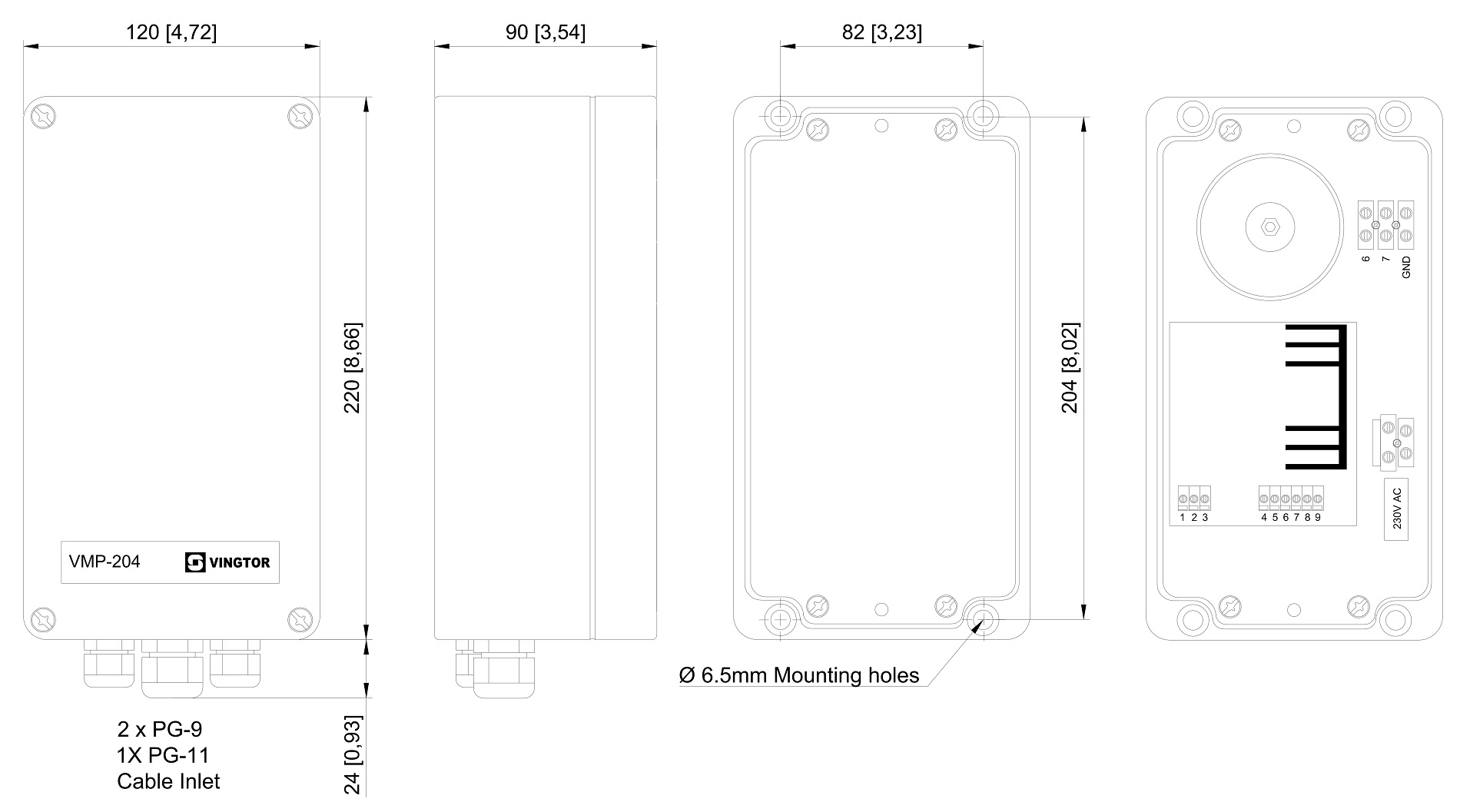

3006202023 - VMP-204 - Dimension & Mount Details_DimDraw

Date Name Category Size Document
15.11.2023 3006202023 - VMP-204 - Dimensional Drawing CAD 2D 409.66 KB Login to download
9.08.2023 MD-SDoC-3006202023-IHM-8003-41815-13643 Declaration 72.15 KB Login to download
