VMP-36-PEL-Ad/20

Item Number: 1020600790

Headset with boom mic, headband, and 20m cable for VMP Station

Base product: VMP-36-PEL-A/20

Includes: 3005020067 - Modification cable kit with diode for VMP-stations - See the Documents tag for the modification decription

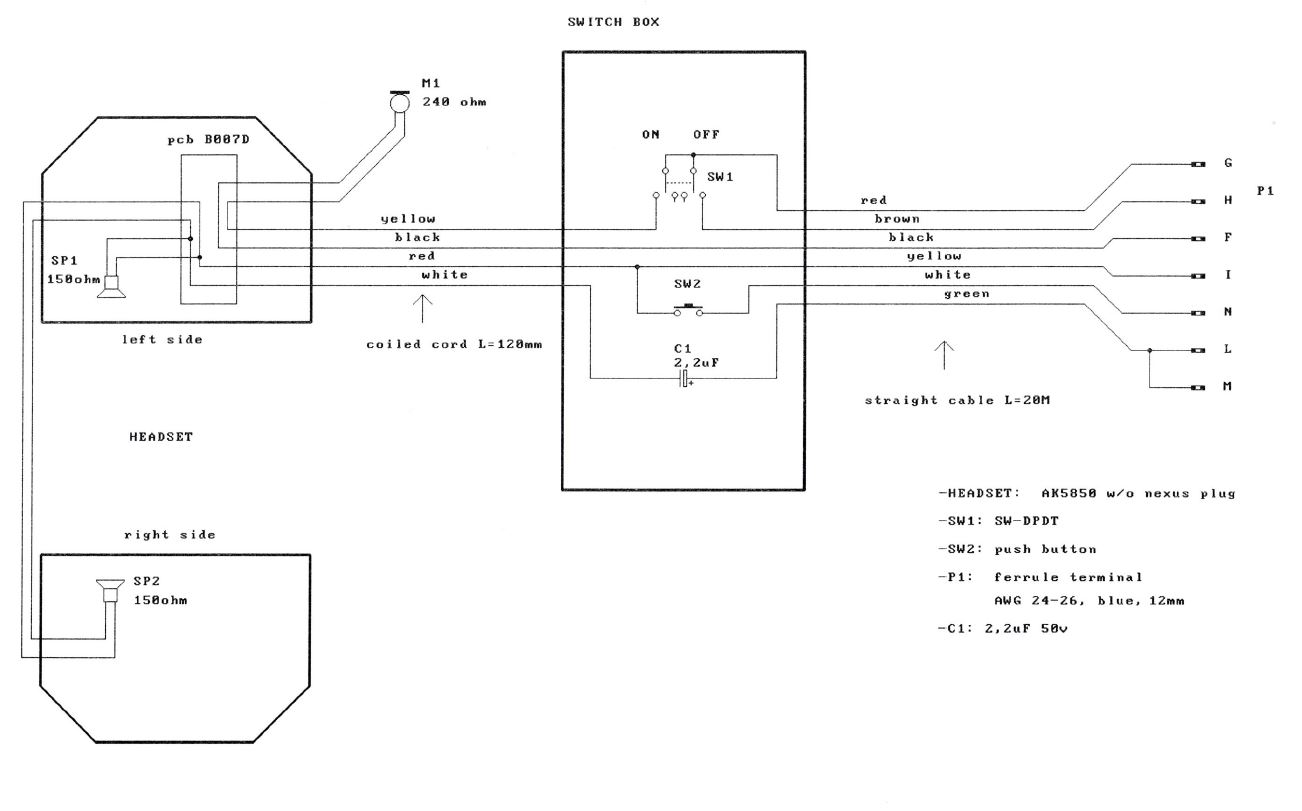

  • Headset for direct connection to a VMP station
  • Switchbox w/ M-button and belt clip
  • Excellent noise performance
  • High attenuating ear shells
  • 20 meter cable
IP66 40x40 ico IP54
Marine 40x40 ico Onboard communication

The VMP-36-PEL-A/20 headset brings hearing protection and communication in noisy environments into a new level of performance with newly designed speakers and microphone.

The dual cup give a modern and slim look and is specially designed to provide excellent noice attenuation.

Applications

The VMP-36-PEL-A/20 headset can enhance communication in noisy environments and other workplaces, where the workers need to be connected to their 2-way handheld or fixed systems throughout the day to help facilitate frequent contacts with co-workers.

Functionality (together with VMP station):

n the headset OFF position, the station's loudspeaker and microphone are working as normal. The incoming audio is also heard in the headset, but the headset microphone is not enabled. (P.S: if standing near the station, the station microphone picks up the user's voice. This is easily mistaken to be coming from the headset)

In the headset ON position, the station's loudspeaker still works, but the integrated microphone is muted and the headset microphone is enabled. (P.S: In the process of switching to ON position, the dial tone is not triggered automatically - that aspect of the station works as normal. The dial tone appears only after starting to type the extention number.)

Use the headset PTT button (M-button) to talk from the headset when in a conversation. This will autmatically activate simplex mode. Return to duplex mode by briefly reactivating the PTT button.

Switch back to OFF position and terminate the call by pressing the "C" key on the station

General
Termination Flying leads/ferrules, prepared for screw terminals
Microphone 20,5 mm. dynamic noise cancelling, 240 Ohm+- 30 %, sensitivity -57 dB+-3 dB, 0 dB=1v/pa at 1kHz, frequency response: 50Hz-6KHz.
Earphone/Speakers 27 mm. diameter, 150 Ohm+-15 %, Parallell connection, frequency response: 50Hz-10KHz.
Temperature -40 to +60 degrees C
Storage Humidity < 90%
Protection IP-54 (When worn)
Attenuation rating (HML) H=32 dB / M=28 dB / L=20
Attenuation rating (SNR) 30 dB
CE Certificate no. 12151RHS01
Dimension (HxD) Approximately 250 x 150 mm. (adjustable).
Weight 0.4 kg
Colour Black/Yellow
Manufacturer Zenitel (A-kabel)
Cable 20m

VMP-36-PEL-Ad

Headset with boom mic, headband, and 10m cable for VMP Station

Date Name Category Size Document
21.02.2024 MD-SDoC-1020600790-IHM-8003-41715-148831 Declaration 71.88 KB Login to download
17.10.2022 EU Type Examination Certificate CE_AK5850.pdf Certificate 1.69 MB Download
21.02.2022 VMP-503 and 530 modification note.pdf Manual 81.71 KB Download
