VMP-36-PEL-Y

Item Number: 1020600752

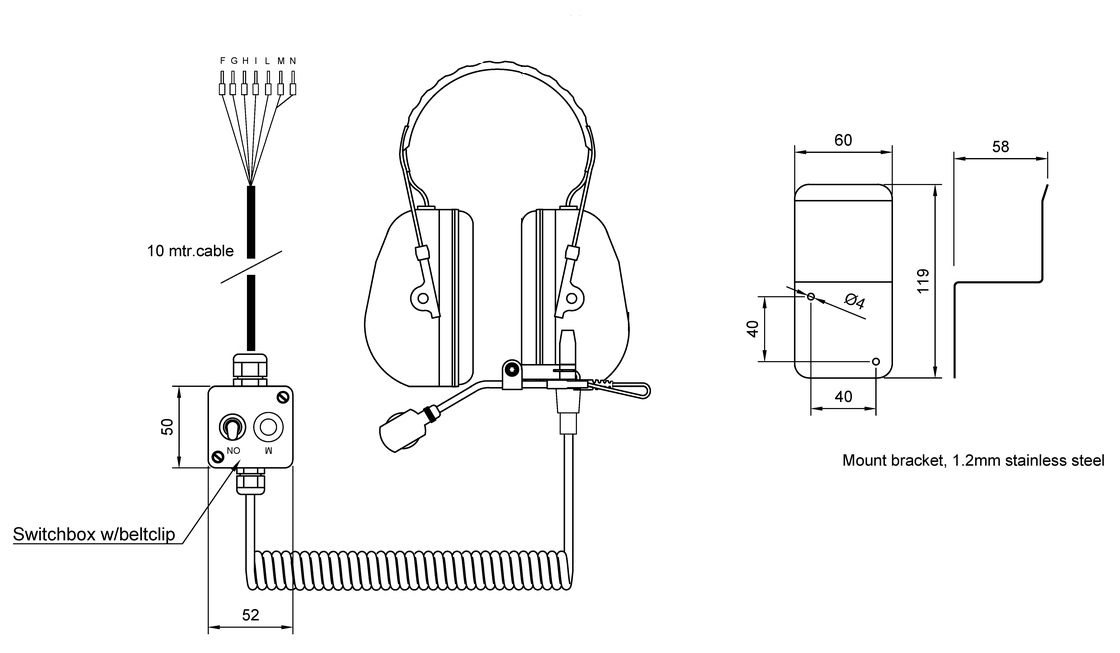

Headset with boom mic, headband, and 10m cable for VMP Station

Replacement item:1020600767



  • Headset for connection direct to a VMP station
  • Switchbox with ON/OFF and talk pushbutton w/ belt clip
  • Excellent noise performance
  • High attenuating ear shells
  • Watertight microphone (IP68)
  • Bright yellow colour for enhanced visibility
  • Standard with 10 meter cable
IP66 40x40 ico IP54
Marine 40x40 ico Onboard communication

The VMP-36-PEL-Y headset brings hearing protection and communication in noisy environments into a new level of performance with newly designed speakers and microphone.

The newly designed dual mold cup give a modern and slim look together with bright yellow colour for enhanced visibility.


Applications
The VMP-36-PEL-Y headset can enhance communication in noisy environments and other workplaces, where the workers need to be connected directly to a VMP Station with cable.

General
Termination No plug
Microphone Noise cancelling microphone, Dynamic 150 Ohm, IP 68 (6m/30min) Sensitivity -71dB±3dB (0dB=1v/Pa 1KHz) @50CM Frequency response 200Hz ~ 7KHz
Earphone/Speakers 46mm diameter, 230 Ohm +/-10%, SPL 107 +/- 2dB, 100-8000 Hz, IP54
Temperature -20°C to +55°C
Storage Humidity < 90%
Protection IP-54
Attenuation rating (HML) H=32dB / M=29dB / L=20dB
Attenuation rating (SNR) 31 dB
Dimension (HxD) Approximately 200x130 mm
Weight 0.292 kg
Colour Yellow and Black
Manufacturer Zenitel (3MTM Peltor MT74H52A-110)
Cable 10m
Product Options
1020600764 VMP-36-PEL-Y/15, Headset with Microphone, ON/OFF Box and 15 meters cable without Plug
1020600765 VMP-36-PEL-Y/20, Headset with Microphone, ON/OFF Box and 20 meters cable without Plug

Date Name Category Size Document
CE_Declaration_3M_Peltor_CH-3.pdf 291.01 KB Download
