VMP-503PA

VMP-503PA

Item Number: 3006202031

Portable Main Station With Loudspeaker

  • Portable station for use with ACM exchanges
  • Connected via plugbox CD-4
  • Built-in loudspeaker
  • Built-in electret microphone gives clear sound
  • Keyboard with large digits
  • C-key for cancelling calls
  • M-key for manual switching of speech direction (simplex).
  • Voice operating duplex speech.
  • Public Address messages via General Call
  • Audio Programmes can individually be selected and received.

Available with 15 meter cable VMP-503PA/15 3006202037

General
Operation voltage Powered from exchange
Connections 5 m cable / 4 pins plug
Loudspeaker Output 1.4 W
Internal Loudspeaker impedance 50 ohm
Frequency range 500 - 5000 Hz
Material Bayblend plastic Membrane keyboard foil of cured PVC
Colour Grey
IP- class IP-65
Dimensions (mm) 124W x 224H x 63D
Weight 1.5 kg

Date Name Category Size Document
9.08.2023 MD-SDoC-3006202031-IHM-8003-41773-20341 Declaration 72.14 KB Login to download
24.08.2022 ACM Polski Rejestr Statkow No TE-2040-880575-14 Certificate 112.09 KB Download

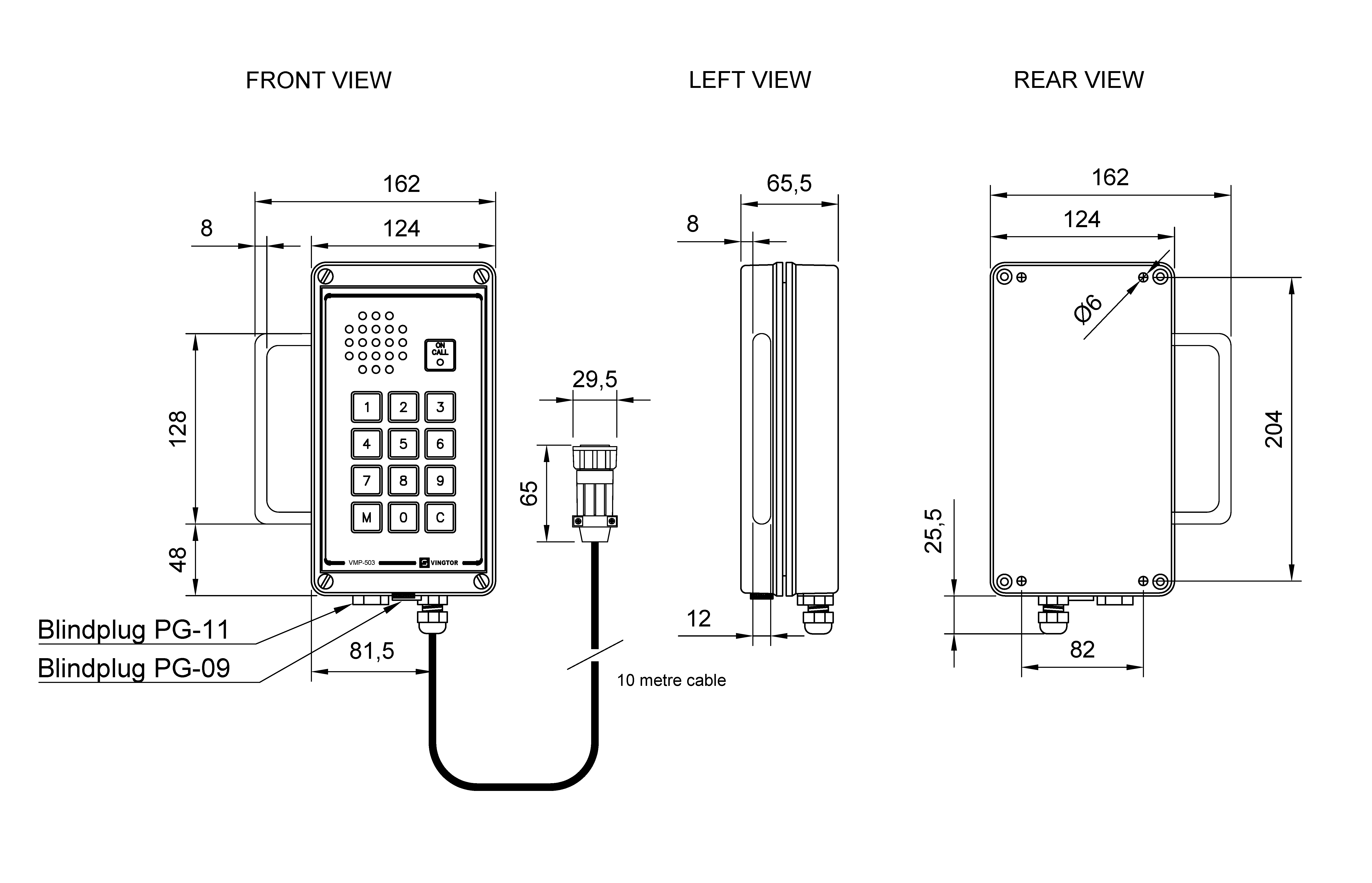

18.09.2019 3006202031 VMP-503PA.zip CAD 2D 335.77 KB Login to download
