XNP-6320HS PTZ Dome Camera

XNP-6320HS PTZ Dome Camera

Item Number: 2310111074

2M 32x Network stainless PTZ Dome Camera

  • Max. 2Megapixel (1920 x 1080) resolution
  • 4.44 ~ 142.6 (32x) optical zoom, 32x digital zoom
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • WiseStreamII support
  • Day & Night (ICR), WDR (150dB)
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Face detection, Tampering • Motion detection
  • SD/SDHC/SDXC memory slot (Max. 512GB), 24V AC / PoE
  • IP67, IP66, NEMA4X, IK10
  • Material : SUS316L
IP66 IP66
IP67 IP67
IK10 IK10
H.264

The XNP-6320HS from Hanwha's X Series is an affordable 2MP 32x network stainless PTZ dome camera featuring WiseStreamII support, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 4.44 ~ 142.6mm (Optical 32x) zoom ratio, Day & Night Auto (ICR) / Color / B/W / Schedule, 24V AC ±10%, PoE+ (IEEE802.3at, Class4), 150dB WDR, Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Face detection, Tampering, and SD card slot (SD/SDHC/SDXC memory slot (Max. 512GB)).

Improved bandwidth efficiency with WiseStreamII support, H.265

WiseStream, the advanced compression technology can reduce bandwidth by 50% by using dynamic technologies. And when combined with H.265, the bandwidth efficiency can be improved up to 75% compared to the current H.264 technology.



VIDEO
Imaging Device 1/2.8" 2.4M CMOS
Total Pixels 1,981(H) x 1,288(V), 2.55M
Effective Pixels 1,944(H) x 1,212(V), 2.35M
Scanning System Progressive
Min. Illumination Color : 0.05Lux (F1.6), B/W : 0.005Lux (F1.6)
S / N Ratio 50dB
LENS
Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
Max. Aperture Ratio F1.6 (Wide) ~ F4.4(Tele)
Angular Field of View H : 61.8˚(Wide) ~ 2.19˚(Tele) / V : 36.2˚(Wide) ~ 1.24˚(Tele)
Focus Control Auto / Manual / One shot AF
Lens Type DC Auto Iris
Mount Type Board type
Pan / Tilt Range 360˚ Endless / 210˚ (-15˚ ~ 195˚)
OPERATIONAL
Min. Object Distance 1.5m (4.92ft)(Wide), 2m (6.56ft) (Tele)
Camera Title Off / On (Displayed up to 85 characters per line)
W/W : English / Numeric / Special characters
Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night Auto (ICR) / Color / B/W / Schedule
Backlight Compensation Off / BLC / HLC / WDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRV (2D + 3D Noise filter) (Off / On)
Motion Detection Off / On (8ea, polygonal)
Privacy Masking Off / On (24 zones of rectangle zone) - Color : Gray / Green / Red / Blue / Black / White
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium)
Digital Image Stabilization Off / On (Built-in Gyro sensor)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Face detection, Tampering, Motion detection
Alarm I/O Input 4ea / Output 2ea (Relay)
Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events File upload via FTP and E-Mail, Notification via E-Mail, TCP and HTTP, local storage SD/SDHC/SDXC or NAS recording at alarm triggers, External output, Preset
Pixel Counter Support
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
Smart Codec Manual mode (Area-based: 5ea) , WiseStreamII support
Video Quality Adjustment H.265 / H.264 / MJPEG : Target bitrate level control
Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Compression Format G.711 u-law / G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
Audio Communication Bi-directional (2-way)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 20 users at unicast mode
Storage Micro SD/SDHC/SDXC 2slot (up to 512 GB)
- Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded
- NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface ONVIF profile S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungary, Greek
Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 // Plug-in free Webviewer - Supported Browser : Google Chrome, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari 10 (Mac OS X only)
Plug-in Webviewer - Supported Browser : MS Explore 11, Apple Safari 10 (Mac OS X only)
ENVIRONMENTAL
Operating Temperature / Humidity: -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH (24V AC) * Start up should be done at above -40°C (-40°F) -35°C ~ +55°C (-31°F ~ +131°F) / Less than 90% RH (PoE+) * Start up should be done at above -25°C (-13°F)
Storage Temperature / Humidity: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
ELECTRICAL
Input Voltage / Current: 24V AC ±10%, PoE+ (IEEE802.3at, Class4)
Power Consumption: Max. 24W (Heater off), Max. 65W (24V AC - Heater on)
MECHANICAL
Color / Material: SUS316L

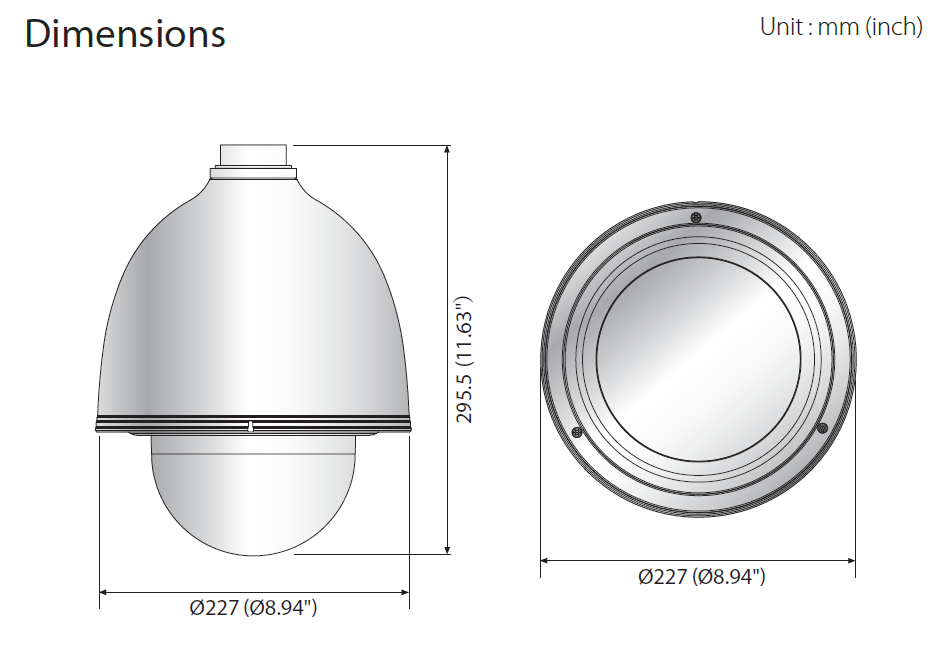

Dimensions (WxH): Ø227 x 295.5mm (Ø8.94" x 11.63")
Weight: 5.3Kg (11.68 lb)
