BEX-24O

BEX-24O

Item Number: 3006102011

Beacon EX BEXBG05D 24V DC

IP66 IP66
IP67 IP67
Atex
  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • IP66/IP67 ingress protection
  • Xenon tubes mechanically secured against shock & vibration
  • 120 candela effective light intensity
  • Automatic synchronisation on multi-beacon system
  • Lens Colour: Orange
  • Available lens colours: Amber, Blue, Green, Clear and Red

The flameproof BEX-24O Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. The beacons robust construction enables installation in the harshest of environments.

Available options: Voltage: 24V dc, 115V ac, 230V ac





General
Weight 2.45 kg
Energy 5 Joules (5Ws)
Flash rate 1 Hz (60 fpm)
Peak Candela 500,000 cd - calculated from energy (J)
Eff. Intensity cd 250 cd - calculated from energy (J)
Cable entries 2x M20 ISO (One cable gland and one blind plug incl.)
Temperature range -50° to +70°C
Relative humidity 90% at 20°C
Housing material Marine grade LM6 aluminium
Environmental Condition Exposed
Order number Description
2340200007 Beacon Ex BExBG05D 24V DC ATEX IP67 1x cable gland. Lens Green
2340200008 Beacon Ex BExBG05D 24V DC ATEX IP67 1x cable gland. Lens Clear
3006102010 Beacon Ex BExBG05D 24V DC ATEX IP67 1x cable gland. Lens Blue
3006102011 Beacon Ex BExBG05D 24V DC ATEX IP67 1x cable gland. Lens Orange
3006102012 Beacon Ex BExBG05D 24V DC ATEX IP67 1x cable gland. Lens Red

BEX-24O

BEX-230R

Explosion Proof Xenon Beacon 5 Joule, 230V

TNFCD2G212

Ex proof beacon, Ex de 24-48VDC GREEN, 1 x M25 gland

Date Name Category Size Document

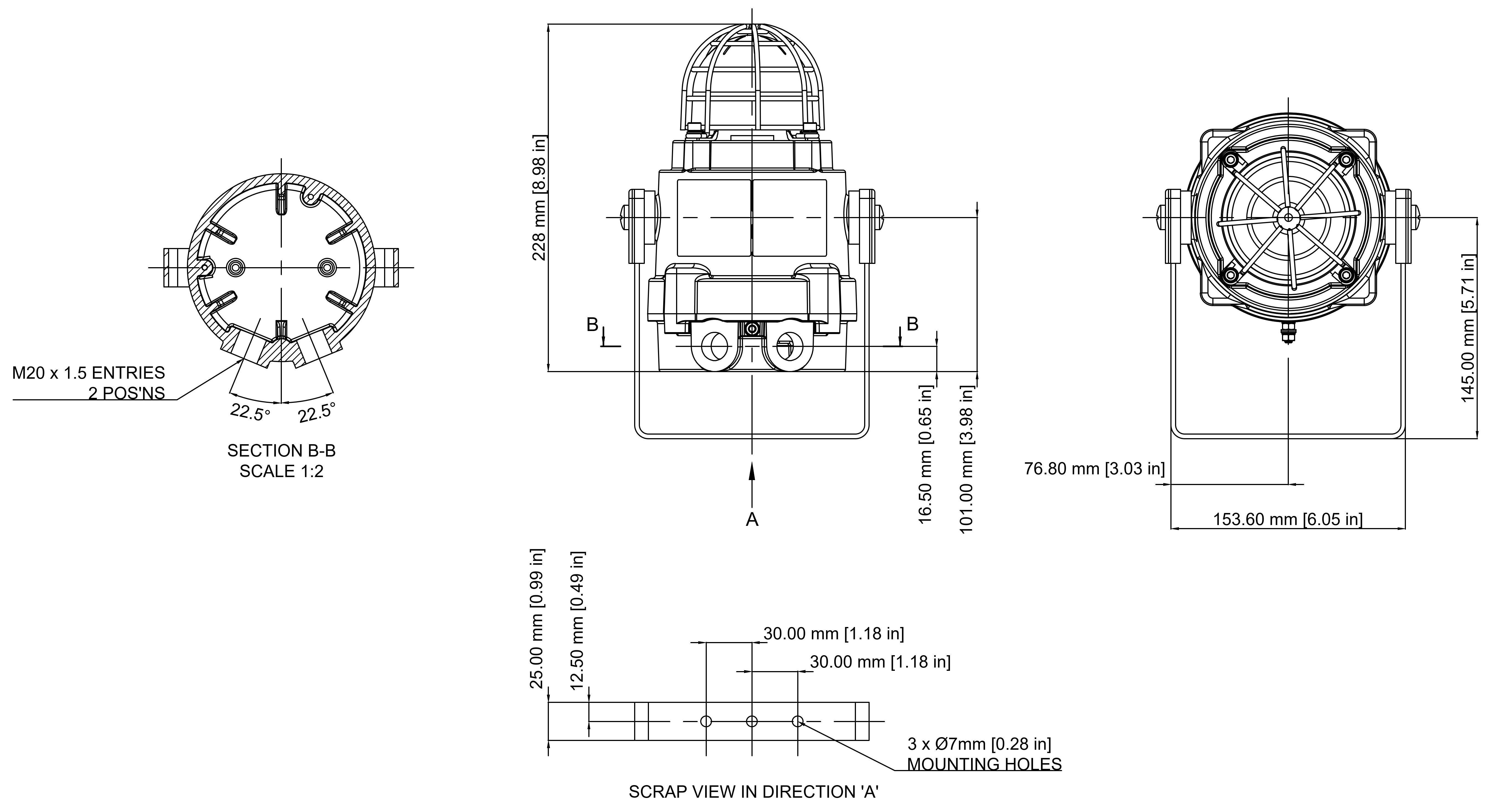

4.10.2023 BEX-xxx - Dimensional Drawing CAD 2D 266.71 KB Login to download
8.08.2023 MD-SDoC-3006102011-IHM-8003-41786-88957 Declaration 72.18 KB Login to download
15.12.2020 BEX_RTN_Permit.pdf Declaration 219.76 KB Download
15.12.2020 BEX_DoC.pdf Declaration 113.11 KB Download
15.12.2020 BEX_Russian_Ex_Cert.pdf Certificate 4.25 MB Download
