BIVEP-6T

Item Number: 4000086829

Projector speaker 6 watt

  • Bi-directional
Marine 40x40 ico Onboard communication
  • Double faced projector w/ transformer for accommodations area
  • Ideal for P.A. announcements and background music applications
  • To be used together with 70/100V line amplifier

The BIVEP-6T is a general purpose projector to be used on 70/100 V lines. The projector is bidirectional and disperses audio in both directions. This feature makes this speaker very well suited for corridors and  other applications where audio has to be evenly distributed.



GENERAL
Material / Color ABS / RAL 7035

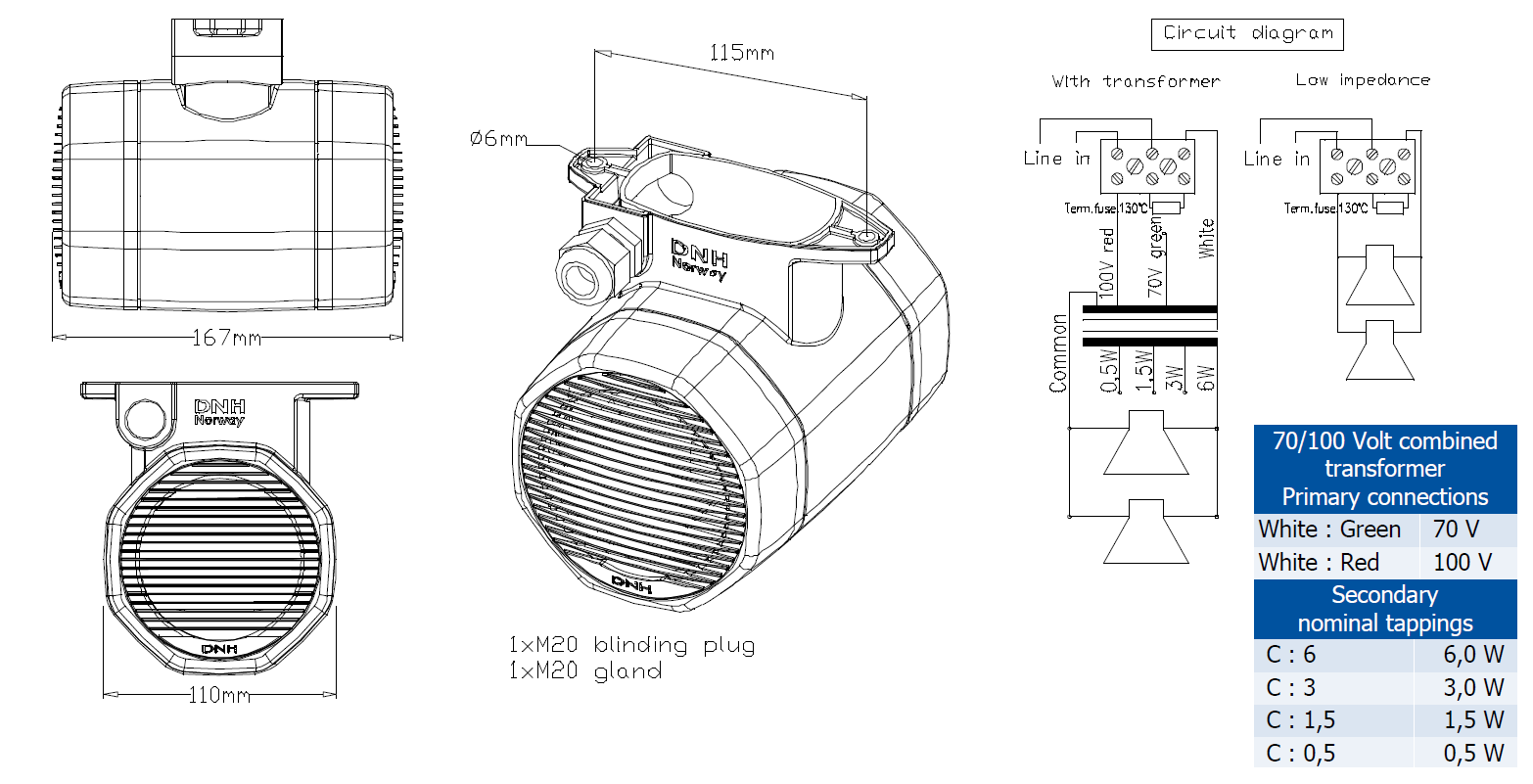

Dimensions (LxDxH) 167mm x 120mm x 120mm
Mounting Foot bracket
Termination Ceramic screw terminals
Weight 0.94 kg
Rated / Max power 6 W / 10 W

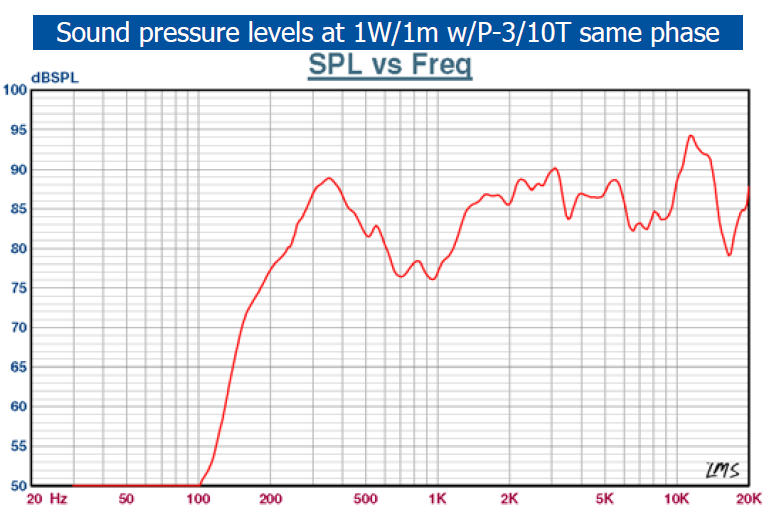

SPL 1W / 1 m 87 dB
SPL rated power 94 dB
Effective frequency range 150 - 20000 Hz
Dispersion (-6dB) 1kHz / 4kHz 360° / 2x70° (bidirectional)
IP-rating 44
Environmental Condition Protected

Date Name Category Size Document
10.09.2023 MD-SDoC-4000086829-IHM-8003-41770-126512 Declaration 72.16 KB Login to download
