Built-in PCB for 3100, 3101, 3102 - control of additional 4 x substations with signal devices

Item Number: 4000017654

97301-009

Marine 40x40 ico Onboard communication
  • Expansion of external signal device control - Substations 5-8
  • Suitable for substation types: P-9003, P-9016, P-9135
  • Fits in all CIS Master Stations, P-3100, P-3101 and P-3102
  • Additional piggyback PCB to expand the external signal control outputs for substation lines 5-8

Additional items:



  • Is also used as spare part for CIS P-3130, P-3131 and P-3132



Installation procedure:

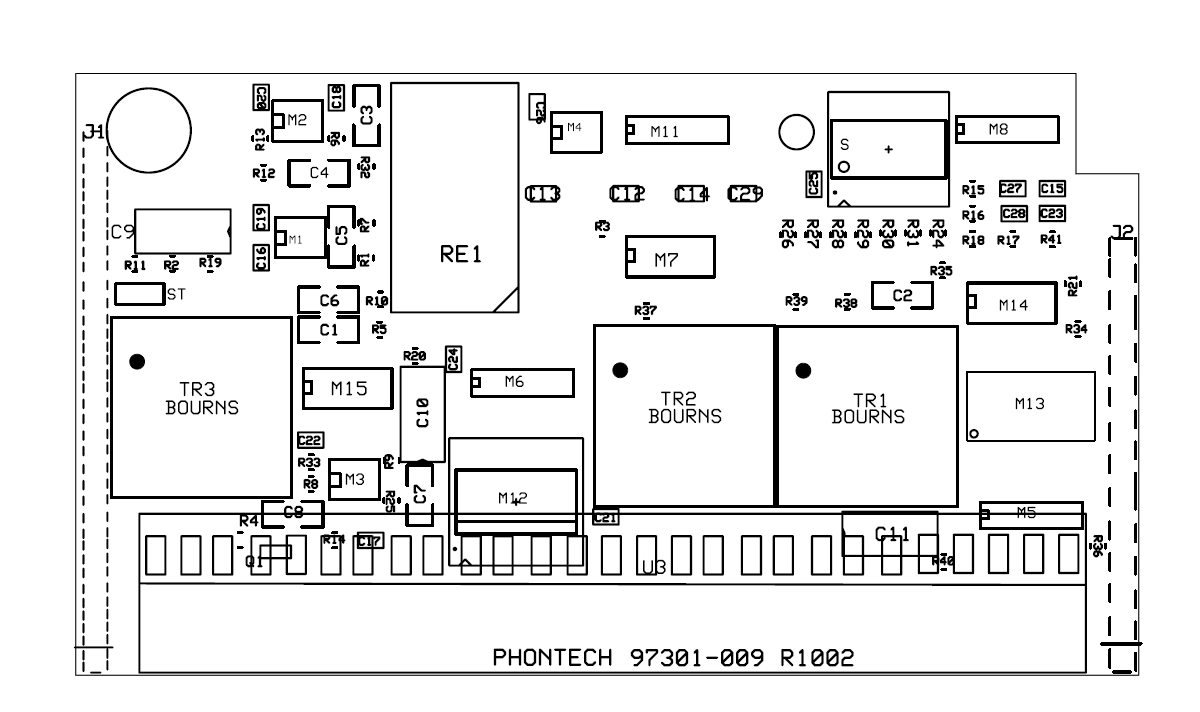

The PCB 97301-009 is mounted piggyback on top of the units main PCB. The PCB is equipped with two male single row connectors on each side. A 21 pin version on the left side a 17 pin version on the right side.

The CIS P-3100/P-3101/3102 is fitted with female connectors on the main PCB for direct fitting of the piggyback PCB

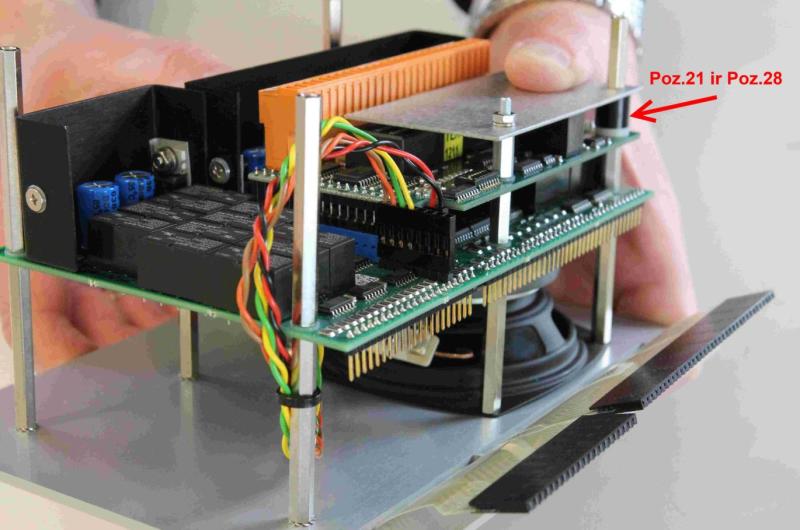

Mounting procedure:

    1. Remove the rear cover of the unit
    2. Replace the upper right spacer above the main PCB (screw terminals downwards) with the 15mm spacer from the mounting kit.
    3. Mount the PCB 97301-009 piggyback on the single row connectors on the main PCB. The upper left spacer shall be inside the free hole on the PCB 97301-009.

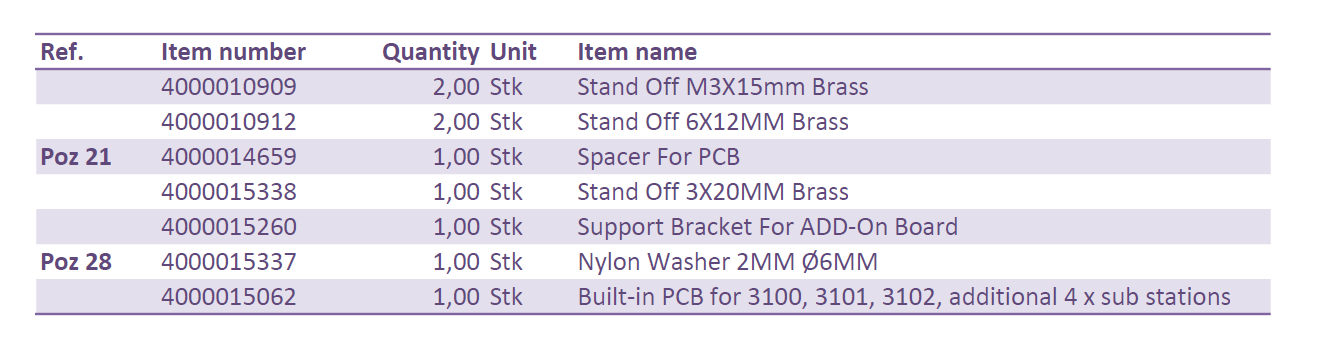

    4. Fasten the PCB with the 20+15 mm (35mm) spacer from the mounting kit
    5. Add the support bracket on top of the piggyback board to secure the board sandwich
    6. Replace the rear cover of the unit.
