CIS Talkback System Master Station P-3102

P-3102

Item Number: 4000016785

CIS Talkback Master Station

  • Complies with IEC 60945 Standard for Marine Equipment
  • DNV Type Approval
  • CCS Type Approval
Marine 40x40 ico Onboard communication

CIS Talkback Master Station P-3102

Advanced Maritime Talk Back System: The P-3102

Optimize onboard communication with the CIS Talkback Master Station P-3102, featuring advanced capabilities for managing complex maritime operations. Accommodating up to 20 substations/loudspeaker lines, this system ensures comprehensive coverage and clarity.

Key features include:

  • 20 Substation/Loudspeaker Lines: For extensive vessel-wide communication.
  • 4x 12W Output Power: Ensures clear audio output, with the option to expand through line amplifiers.
  • Versatile Connectivity: Integrated microphone and loudspeaker with additional connections for both gooseneck/handheld microphones and external speakers.



The P-3102 is crafted for enhanced safety and efficiency, offering indispensable point-to-point, group, and all-call options, plus emergency Public Address functions.

Mechanical

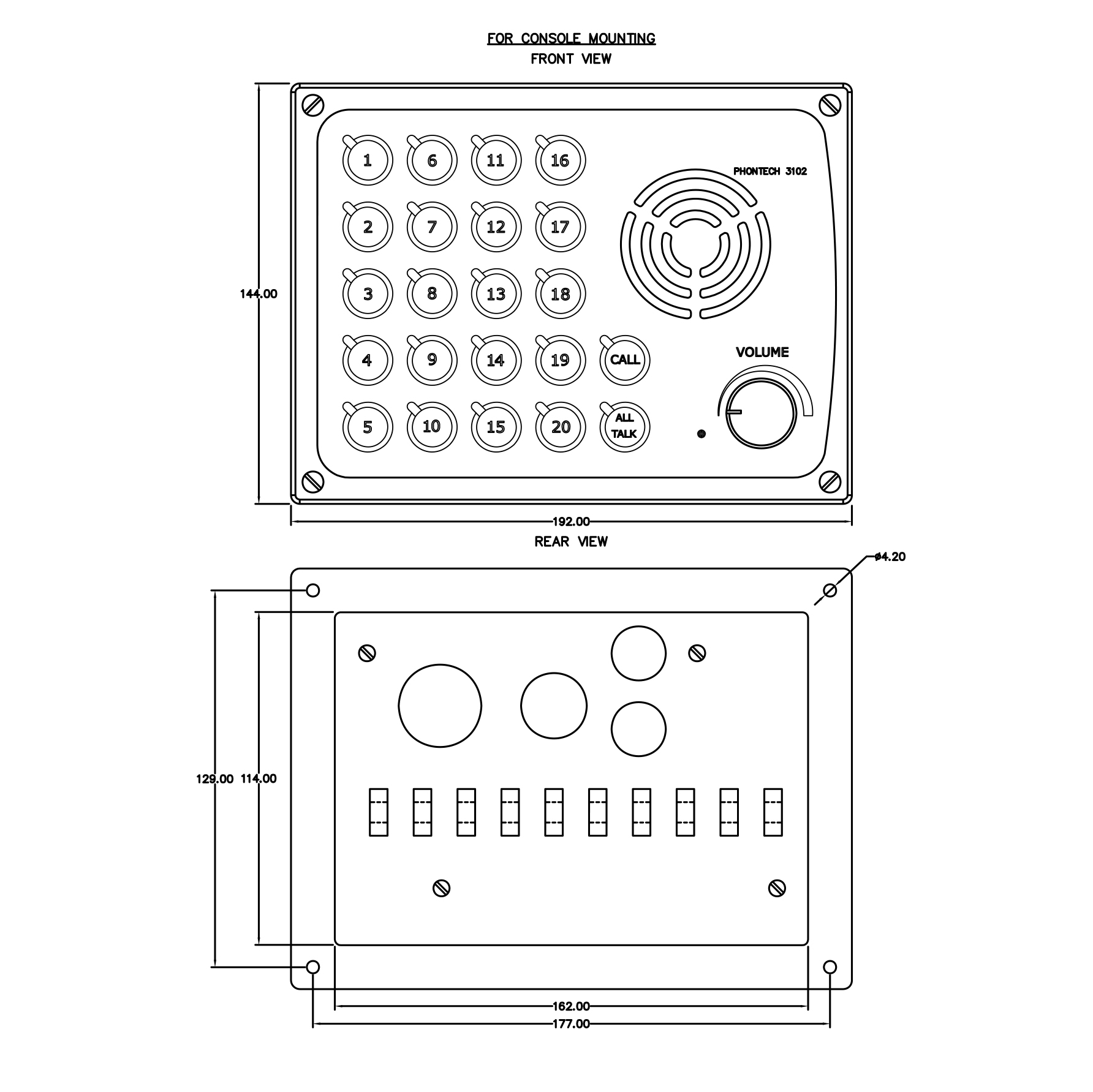

Dimensions (WxHxD) 192x144x100 mm
Weight 3 kg
Color RAL 9005
Material Aluminium / PC
Mounting Flush / Console
Fixing 4 x M4 bolts
Access Front
Cable Entry Rear
Electrical
Power Supply 24 VDC (22-32 VDC)
Power Consumption 85W (peak), 7.5W (typical)
Fuse 5x20 mm, 2A T
Heat Dissipation (typical/max) < 7.5W / 40W
Termination Screw terminals ≤ 1.5mm2
Compass Safe Distance > 2.2 m
Amplifier(s)
Frequency Range 300-3400 Hz
Power Output 4 x 10W / 4Ω (Substation Lines 1-5, 6-10, 11-15 and 16-20)
Environmental
Temperature -15°C to +55°C
Humidity +93% (at +40°C)
Ingress Protection Rating IP-22



P-9029

Headset with boom mic, headband, and 10m cable

P-9026

Dimmer module for CIS P-31XX Master Stations
